Modules and transducers
112 A03031_24_E00_01 HBM: public QuantumX

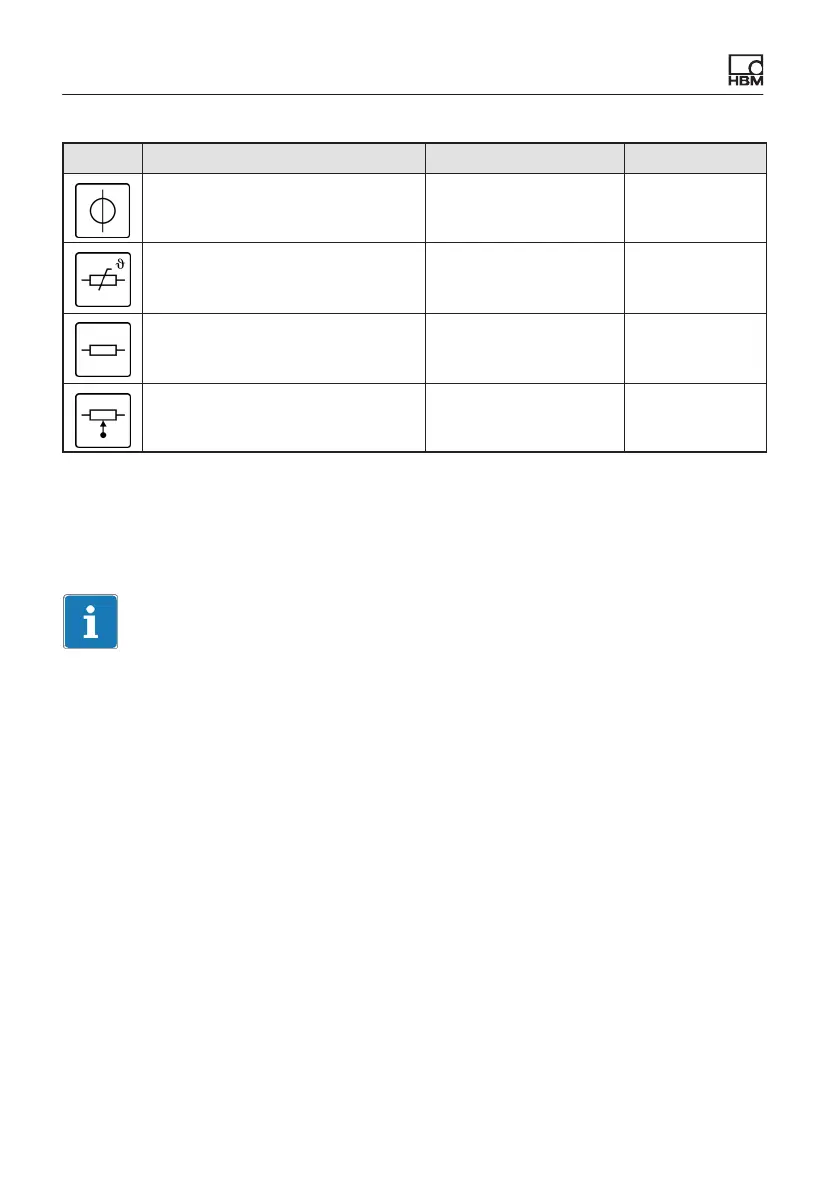

See pageConnection socketsTransducer type
Electrical voltage 1 ... 16 130, 131
Resistance thermometer 1 ... 16 137
Ohmic resistor 1 ... 16 136
Potentiometer (only MX1615B) 1 ... 16 126
The transducers are connected via 8-pin plug terminal connectors
(Phoenix Contact FMC 1.5/8-ST-3.5-RFBKBD1-8Q).
The measurement channels are only electrically isolated from the power supply
of the MX1615, not from each other.
Important
MX1615B uses the "Mini Combicon AU" socket/connector type from Phoenix
with gold contacts for the sensor connection, rather than the "Mini Combicon"
with nickel contacts as used by MX1615. Only the matching plug may be used
in each case:
MX1615B -> 1-CON-S1015; MX1615 -> 1-CON-S1005.
8.11.1 MX1615B pin assignment
So that insertion or removal of a transducer connection can be unmistakably
identified, Pin 4 and Pin 5 in the connector plug must be bridged! This is auto
matically so for all bridge transducers. The bridge only needs to be completed
for voltage measurements. If this bridge is missing, no measurement values
will be recorded at the connection!
