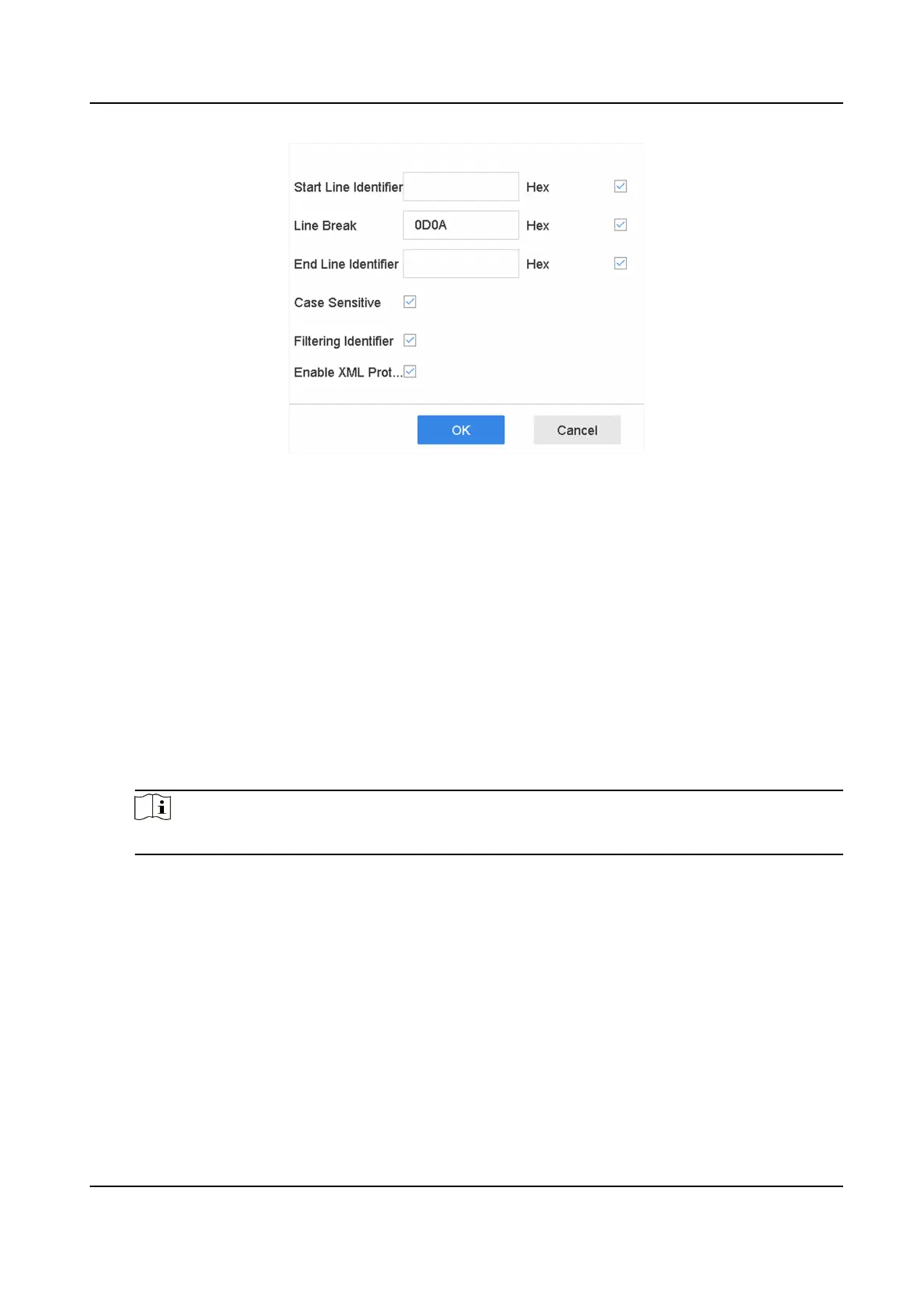

Figure 9-2 Universal Protocol Sengs
EPSON
The xed start and end line tag are used for EPSON protocol.
AVE
The
xed start and end line tag are used for AVE protocol. Serial port and virtual serial port
connecon types are supported.
Click Custom to congure the AVE sengs. Select Rule as VSI-ADD or VNET . Set the address
bit of the POS message to send. Click OK to save the
sengs.
NUCLEUS
Click the Custom to congure the NUCLEUS sengs.
Enter the employee No., shi No., and the terminal No. in the eld. The matching message
sent from the POS device will be used as the valid POS data.
Note
The NUCLEUS protocol must be used in the RS-232 connecon communicaon.
6. Select Connecon Mode and click Parameters to congure the parameters for each connecon
mode.
TCP Connecon
When using TCP connecon, the port must be set from 1 to 65535, and the port for each POS
machine must be unique.
Set the Allowed Remote IP Address of the device sending the POS message.
UDP
Connecon
When using UDP connecon, the port must be set from 1 to 65535, and the port for each
POS machine must be unique.
Set the Allowed Remote IP Address of the device sending the POS message.
Network Video Recorder User Manual
115
