4.34 Central Braking System—P3700B Model—New Brake Style
Chapter 4: Removal, Replacement, and Adjustment Procedures
Affinity® Three Birthing Bed and Affinity® Four Birthing Bed Page 4 - 87
Service Manual (MAN272 REV 4)
4

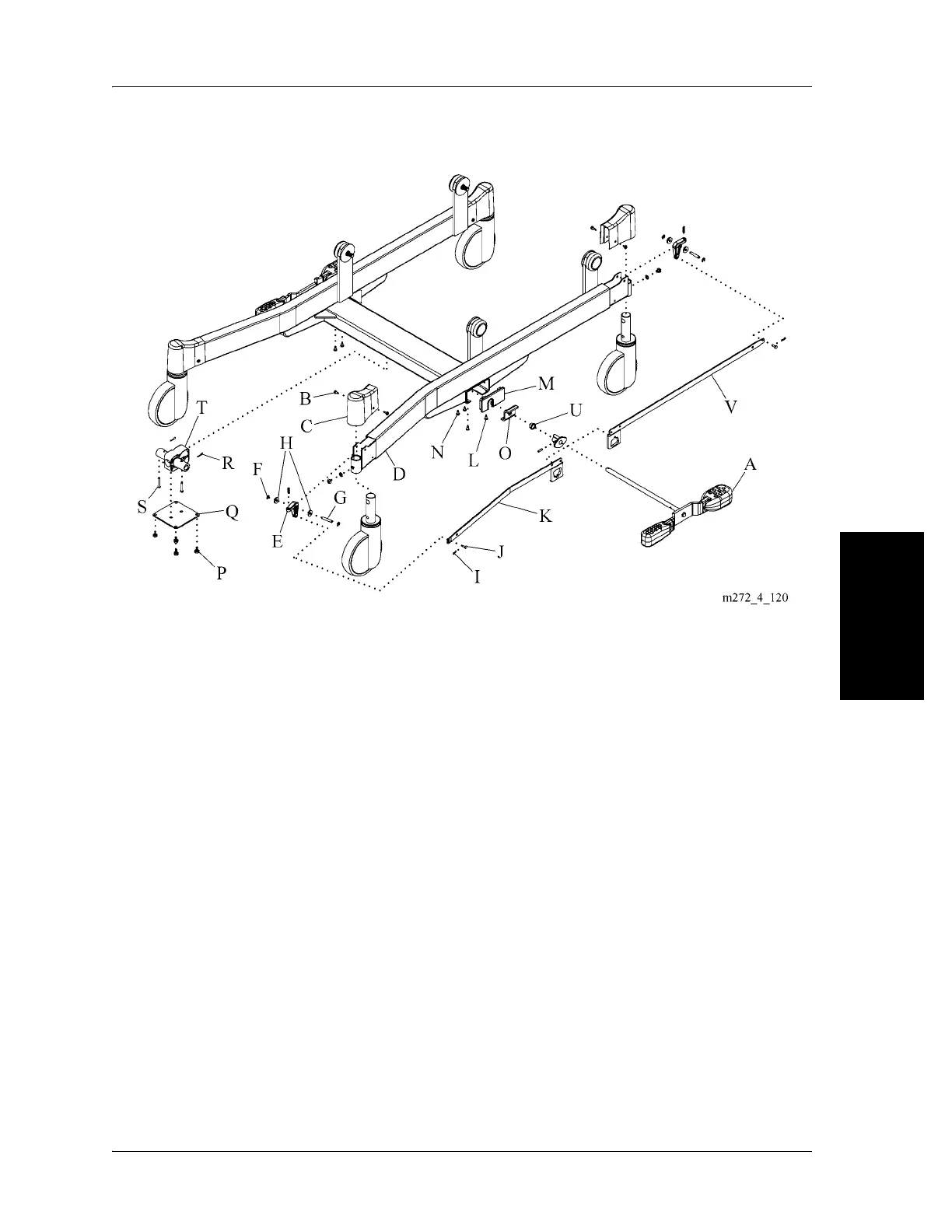

Figure 4-43. Central Braking System
7. Repeat step 6 for the head-end rocker arm.
8. Put the brake/steer pedal (A) into the neutral position.
9. Remove the headboard and the foot section from the bed.
10. Put the pads on the floor to protect the bed from damage.
11. Carefully turn the bed on to the side with the disabled siderail assembly.
12. Remove the two screws (L) and the end caps (M) that cover the cross tube
(behind the brake/steer pedal) at both sides of the base frame.
13. Remove the two screws (N) from the brake rod support bracket (O) on each
side of the base frame.
14. Remove the four screws (P) that attach the detent housing plate (Q) at the
center of the cross channel.
15. Remove the two hairpins (R) and clevis pins (S) that connect the shaft of
both the brake/steer pedals to the detent mechanism assembly (T).
16. Pull the brake/steer pedal (A) free of the cross channel and detent
mechanism assembly (T).
