3.4 Viewing Harmonic Measured Values
74
Harmonic voltage RMS value (HRM V), harmonic current RMS value (HRM A), harmonic active power (HRM W)
Parameters shown as harmonic level (LEVEL)

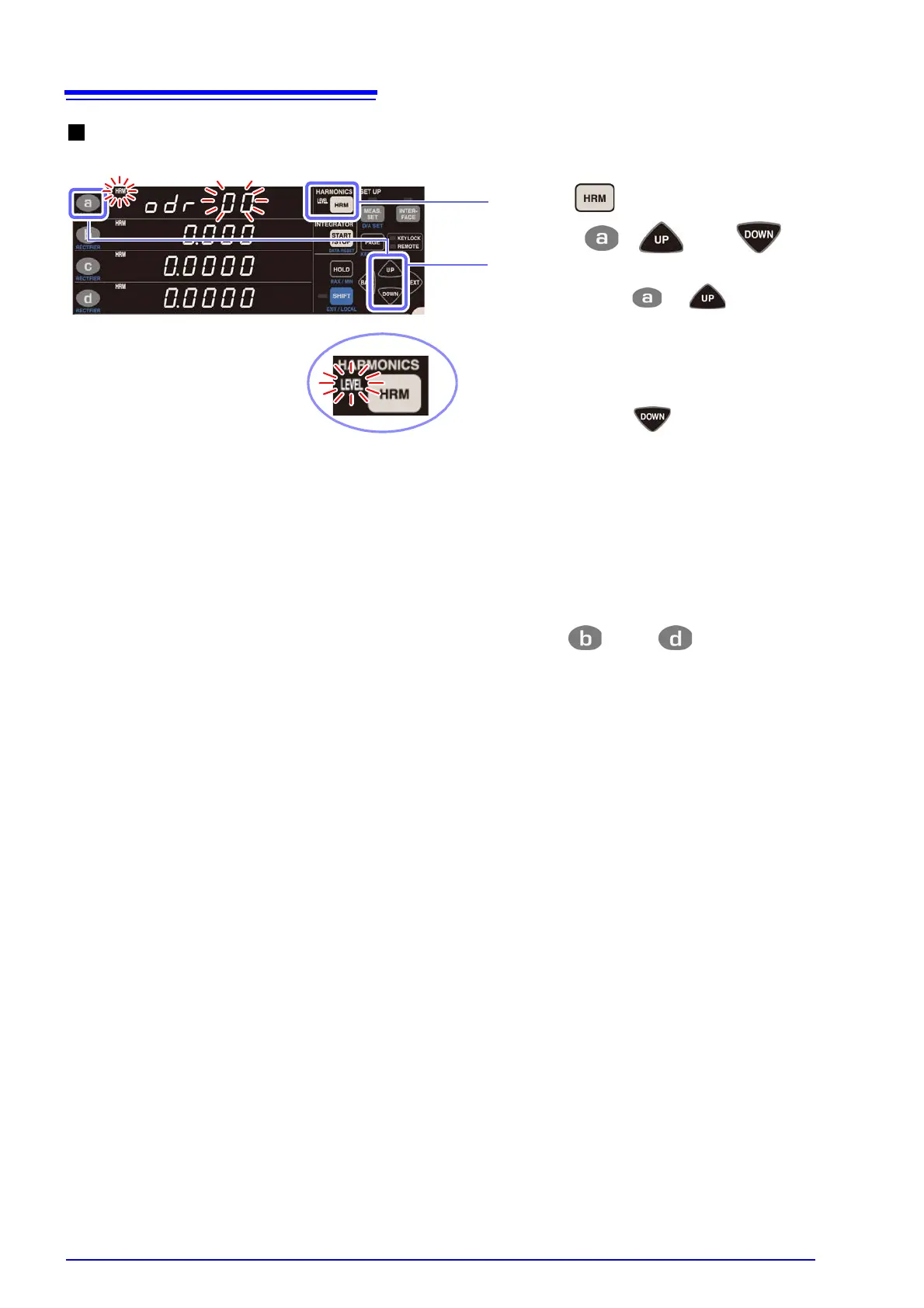

1 Press to light up LEVEL lamp.
2 Press , , or to
change the harmonic order.
After pressing or :
01 (1st order: fundamental wave compo-
nent)  02 (2nd order)  …  49 (49th
order)  50 (50th order)  00 (0th order:
DC component)  01
After pressing :
01
→ 00 → 50 → 49 → ⋅⋅⋅ → 02 → 01
The harmonic level will be displayed in ar-
eas b through d on the display.
(Default display)
Display area
b: Harmonic voltage RMS value
Display area
c: Harmonic current RMS value
Display area
d: Harmonic active power
(Press through to change the dis-
play parameter.)
