OPERATOR'S STATION

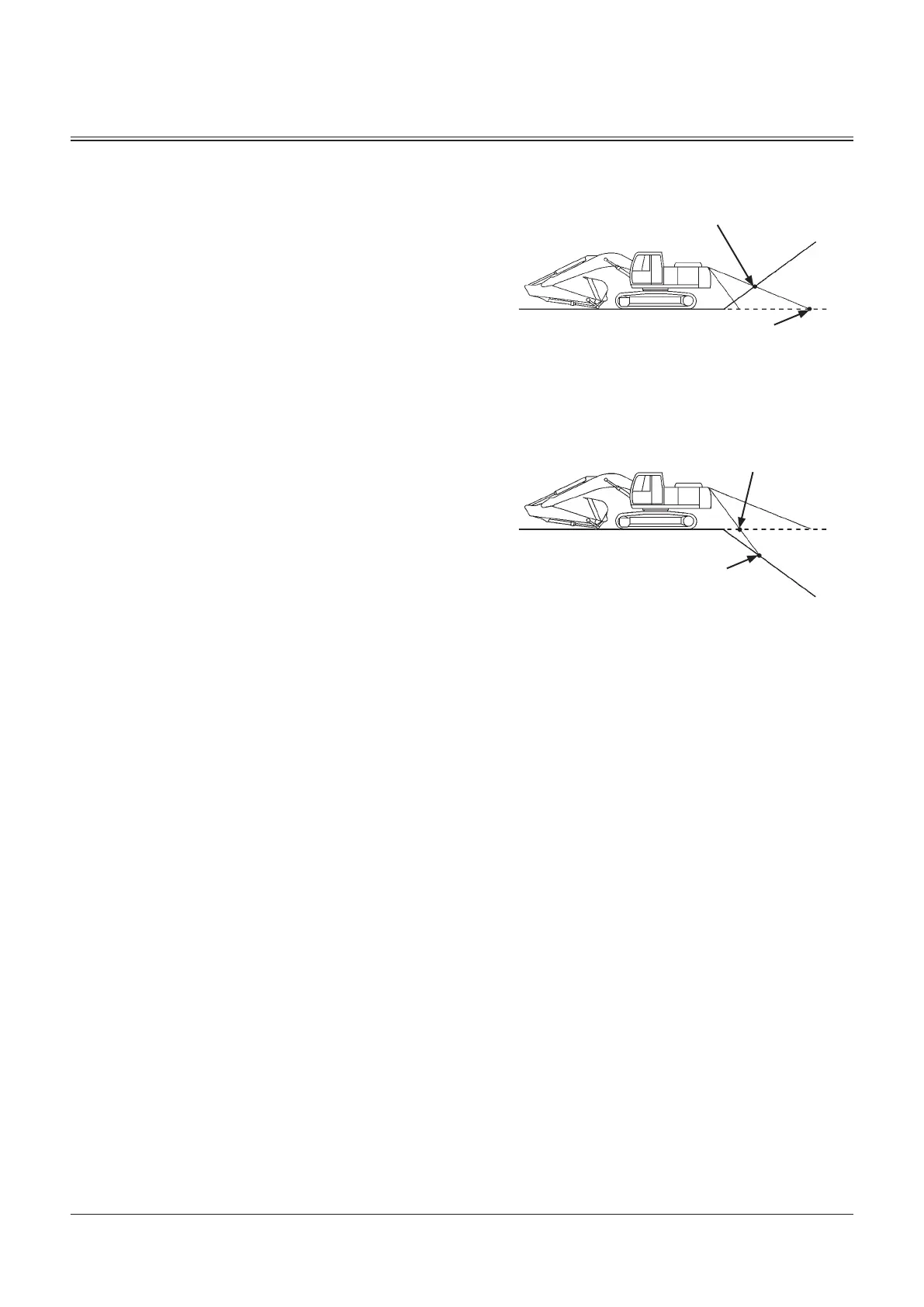

Discrepancies between Image and Actual Road Surface
1) Images of Ascending Slopes or Faces
This indicates how the camera looks when shooting uphill.
Because point (a) on the upslope is stretched on the
monitor screen on an extended line of the plane, the
distance from the vehicle icon is depicted as further than it
actually is.
2) Images of Descending Slopes or Cliffs
This indicates how the camera looks when shooting
downhill.
Because point (b) on the downslope is shortened on the
monitor screen on an extended line of the plane, the
distance from the vehicle icon is depicted as closer than it
actually is.
Actual Position of Point (a)
Actual Position of Point (b)
Slope
Slope
Position Point (a) Appears Onscreen
Position Point (b) Appears Onscreen
b
a
MDCK-OP3-021
MDCK-OP3-022
