222

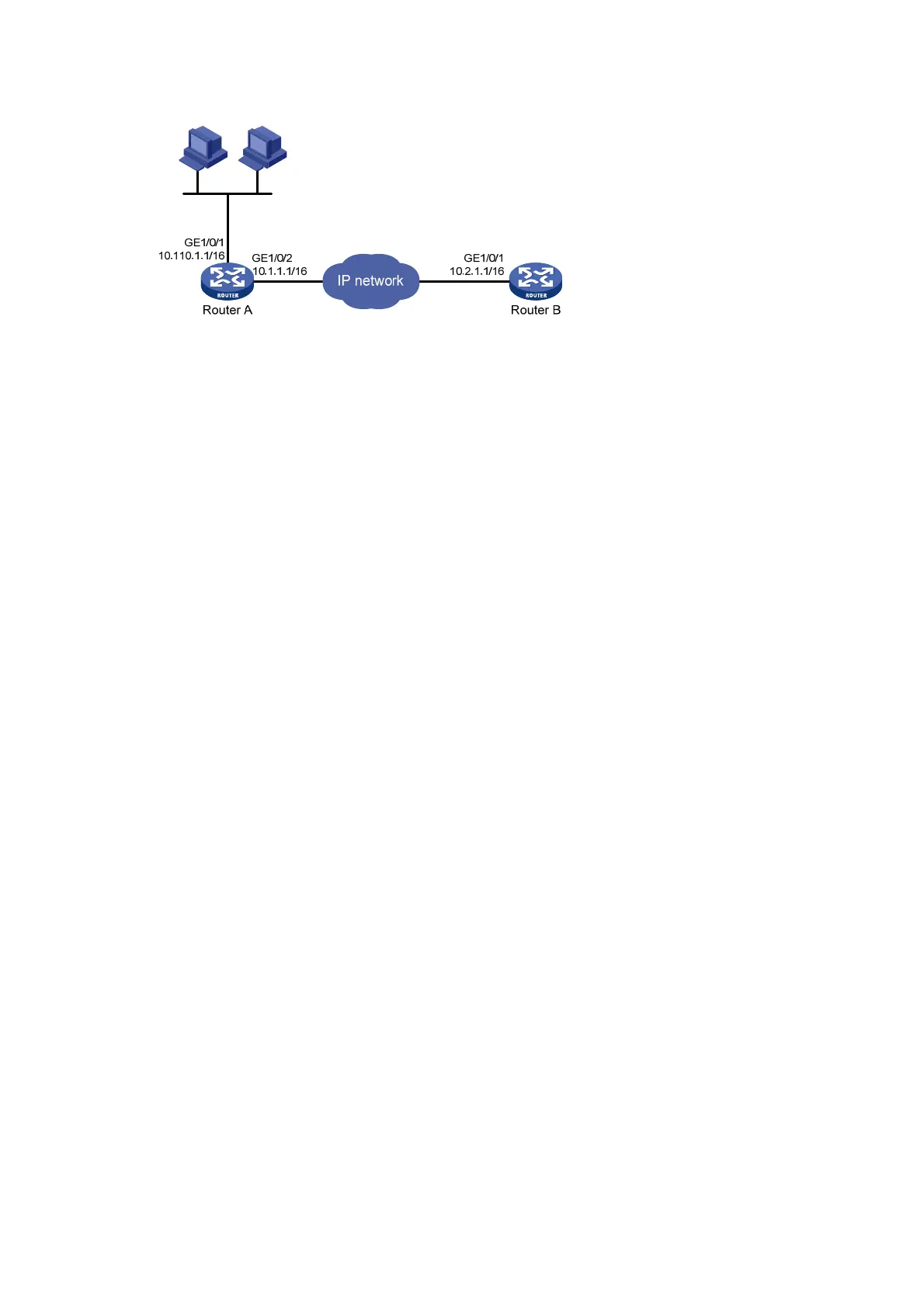

Figure 81 Network diagram

Configuration procedure

Make sure Router A can reach the subnet 10.2.0.0/16.

# Enable UDP helper.

<RouterA> system-view

[RouterA] udp-helper enable

# Enable the UDP port 55 for UDP helper.

[RouterA] udp-helper port 55

# Configure UDP helper to convert broadcast packets to multicast packets destined for 225.1.1.1 on

GigabitEthernet 1/0/1.

[RouterA] interface gigabitethernet 1/0/1

[RouterA-GigabitEthernet1/0/1] ip address 10.110.1.1 16

[RouterA-GigabitEthernet1/0/1] udp-helper broadcast-map 225.1.1.1

[RouterA-GigabitEthernet1/0/1] quit

# Enable IP multicast routing globally.

[RouterA] multicast routing

[RouterA-mrib] quit

# Enable PIM-DIM and IGMP on GigabitEthernet 1/0/1.

[RouterA] interface gigabitethernet 1/0/1

[RouterA-GigabitEthernet1/0/1] pim dm

[RouterA-GigabitEthernet1/0/1] igmp enable

# Configure GigabitEthernet 1/0/1 as a static member of the multicast group 225.1.1.1.

[RouterA-GigabitEthernet1/0/1] igmp static-group 225.1.1.1

# Enable PIM-DIM and IGMP on GigabitEthernet 1/0/2.

[RouterA-GigabitEthernet1/0/2] pim dm

[RouterA-GigabitEthernet1/0/2] igmp enable

# Configure GigabitEthernet 1/0/2 as a static member of the multicast group 225.1.1.1.

[RouterA-GigabitEthernet1/0/2] igmp static-group 225.1.1.1

Verifying the configuration

Verify that you can capture multicast packets from Router A on Router B.
