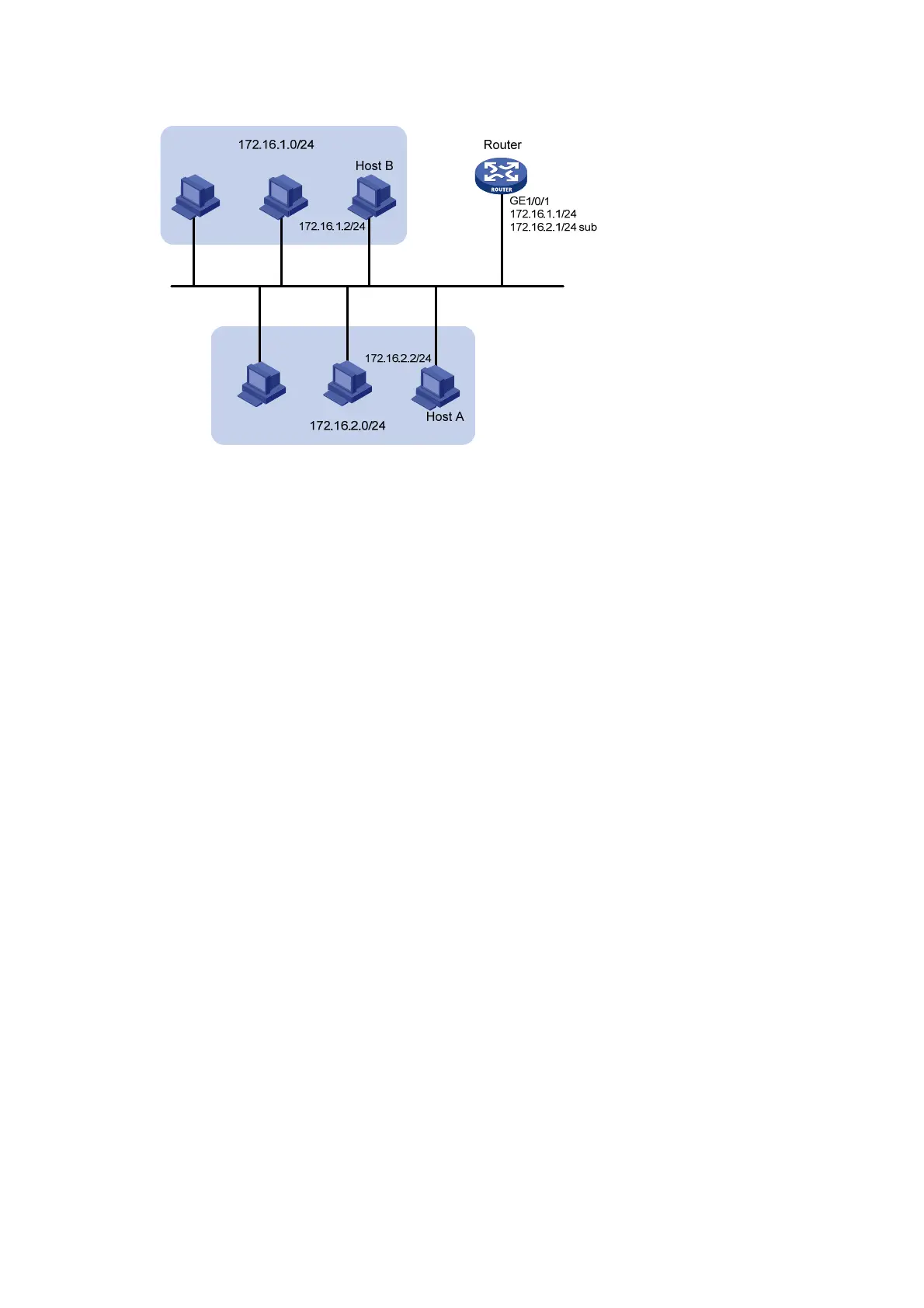

Figure 13 Network diagram

Configuration procedure

# Assign a primary IP address and a secondary IP address to GigabitEthernet 1/0/1.

<Router> system-view

[Router] interface gigabitethernet 1/0/1

[Router-GigabitEthernet1/0/1] ip address 172.16.1.1 255.255.255.0

[Router-GigabitEthernet1/0/1] ip address 172.16.2.1 255.255.255.0 sub

# Set the gateway address to 172.16.1.1 on the PCs attached to subnet 172.16.1.0/24, and to

172.16.2.1 on the PCs attached to subnet 172.16.2.0/24.

Verifying the configuration

# Verify the connectivity between a host on subnet 172.16.1.0/24 and the router.

<Router> ping 172.16.1.2

Ping 172.16.1.2 (172.16.1.2): 56 data bytes, press CTRL_C to break

56 bytes from 172.16.1.2: icmp_seq=0 ttl=128 time=7.000 ms

56 bytes from 172.16.1.2: icmp_seq=1 ttl=128 time=2.000 ms

56 bytes from 172.16.1.2: icmp_seq=2 ttl=128 time=1.000 ms

56 bytes from 172.16.1.2: icmp_seq=3 ttl=128 time=1.000 ms

56 bytes from 172.16.1.2: icmp_seq=4 ttl=128 time=2.000 ms

--- Ping statistics for 172.16.1.2 ---

5 packet(s) transmitted, 5 packet(s) received, 0.0% packet loss

round-trip min/avg/max/std-dev = 1.000/2.600/7.000/2.245 ms

# Verify the connectivity between a host on subnet 172.16.2.0/24 and the router.

<Router> ping 172.16.2.2

Ping 172.16.2.2 (172.16.2.2): 56 data bytes, press CTRL_C to break

56 bytes from 172.16.2.2: icmp_seq=0 ttl=128 time=2.000 ms

56 bytes from 172.16.2.2: icmp_seq=1 ttl=128 time=7.000 ms

56 bytes from 172.16.2.2: icmp_seq=2 ttl=128 time=1.000 ms

56 bytes from 172.16.2.2: icmp_seq=3 ttl=128 time=2.000 ms

56 bytes from 172.16.2.2: icmp_seq=4 ttl=128 time=1.000 ms
