• For the first download, both WAAS devices create data dictionary entries and Router A sends

both indexes and metadata.

• For the second download, Router A replaces repeated data with indexes.

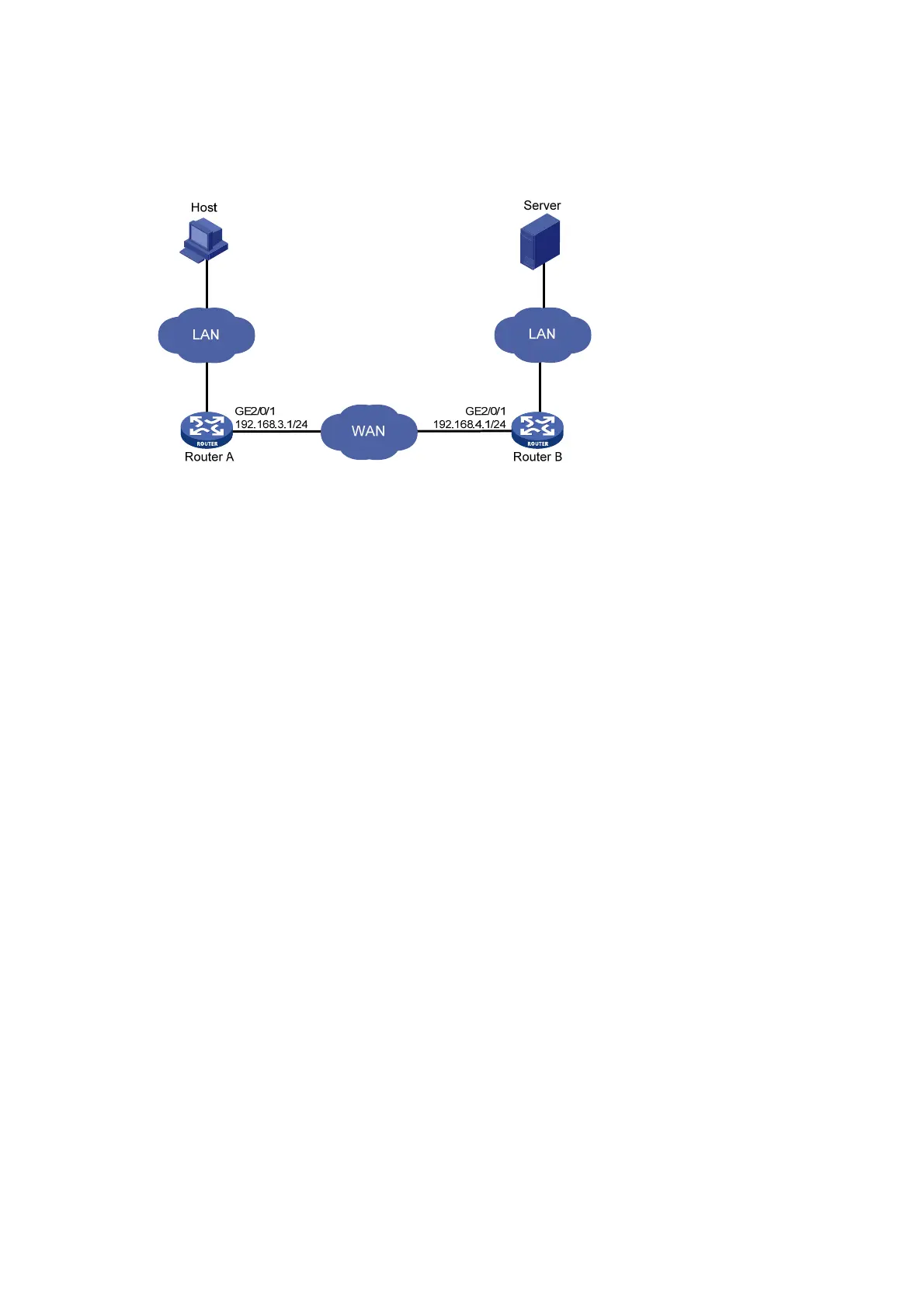

Figure 166 Network diagram

Configuration procedure

1. Configure IP addresses for interfaces. (Details not shown.)

2. Configure routing protocols to ensure connectivity. (Details not shown.)

3. Apply the predefined WAAS policy to the interface GigabitEthernet 2/0/1 on Router A.

<RouterA> system-view

[RouterA] interface gigabitethernet 2/0/1

[RouterA-GigabitEthernet2/0/1] waas apply policy

[RouterA-GigabitEthernet2/0/1] quit

[RouterA] quit

4. Apply the predefined WAAS policy to the interface GigabitEthernet 2/0/1 on Router B.

<RouterB> system-view

[RouterB] interface gigabitethernet 2/0/1

[RouterB-GigabitEthernet2/0/1] waas apply policy

5. Download a test file of 14 MB from the server to the host.

6. Clear DRE statistics on Router A.

<RouterA> reset waas statistic dre

7. Download the same file from the server to the host.

Verifying the configuration

# After the first download, display DRE statistics on Router A.

<RouterA> display waas statistic dre

Peer-ID: cc3e-5fd8-5158

Peer version: 1.0

Cache in storage: 12710912 bytes

Index number: 49652

Age: 00 weeks, 00 days, 00 hours, 00 minutes, 35 seconds

Total connections: 1

Active connections: 0

Encode Statistics

Dre msgs: 2
