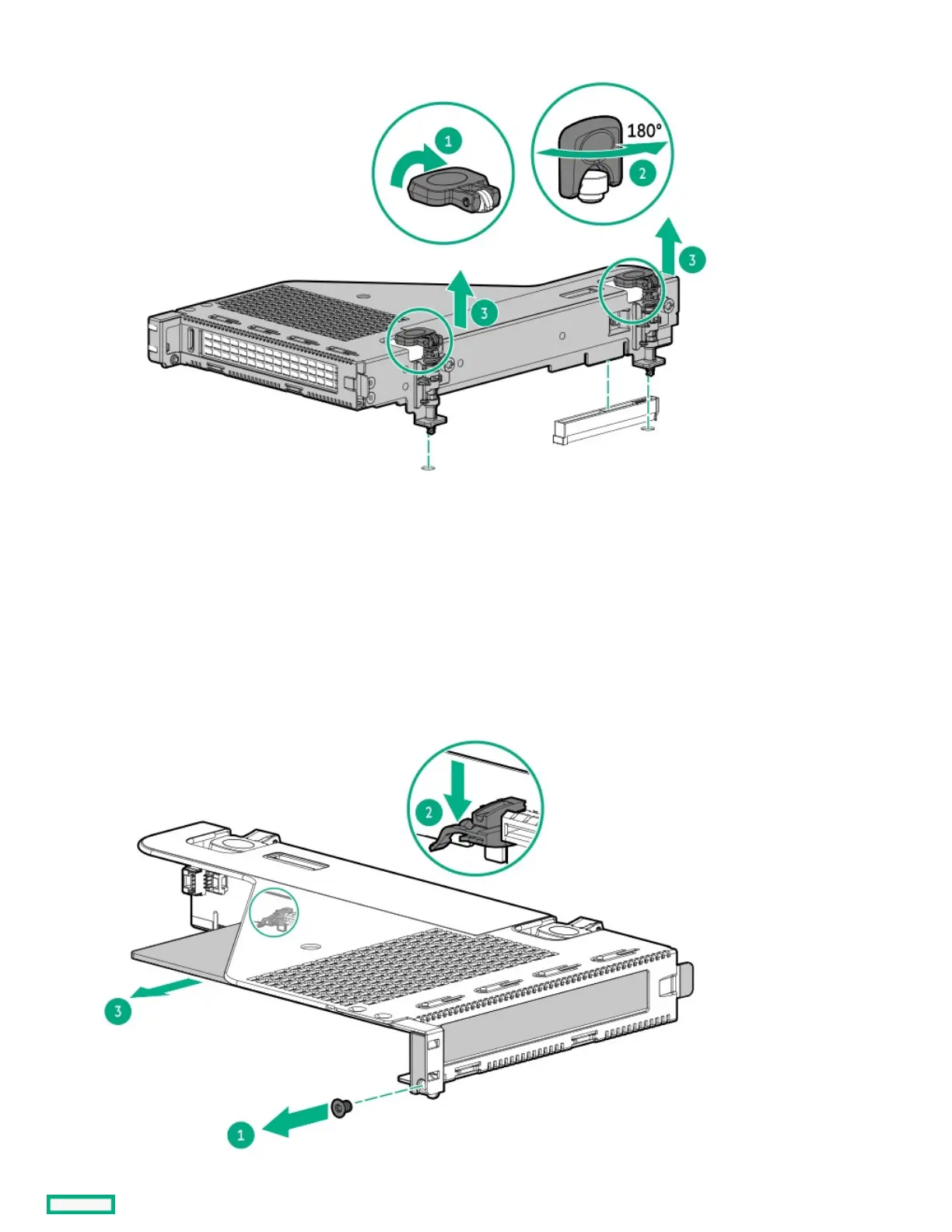

b. Lift the riser cage off the system board (callout 3).
11. If an expansion card with internal cables is installed on the riser, disconnect the cables from the card.
12. Remove the expansion card:
a. Remove the screw (callout 1).
Retain the screw. The screw will be used to secure the new expansion card spare.
b. Press and hold the release latch (callout 2).
c. Detach the expansion card from the riser (callout 3).
