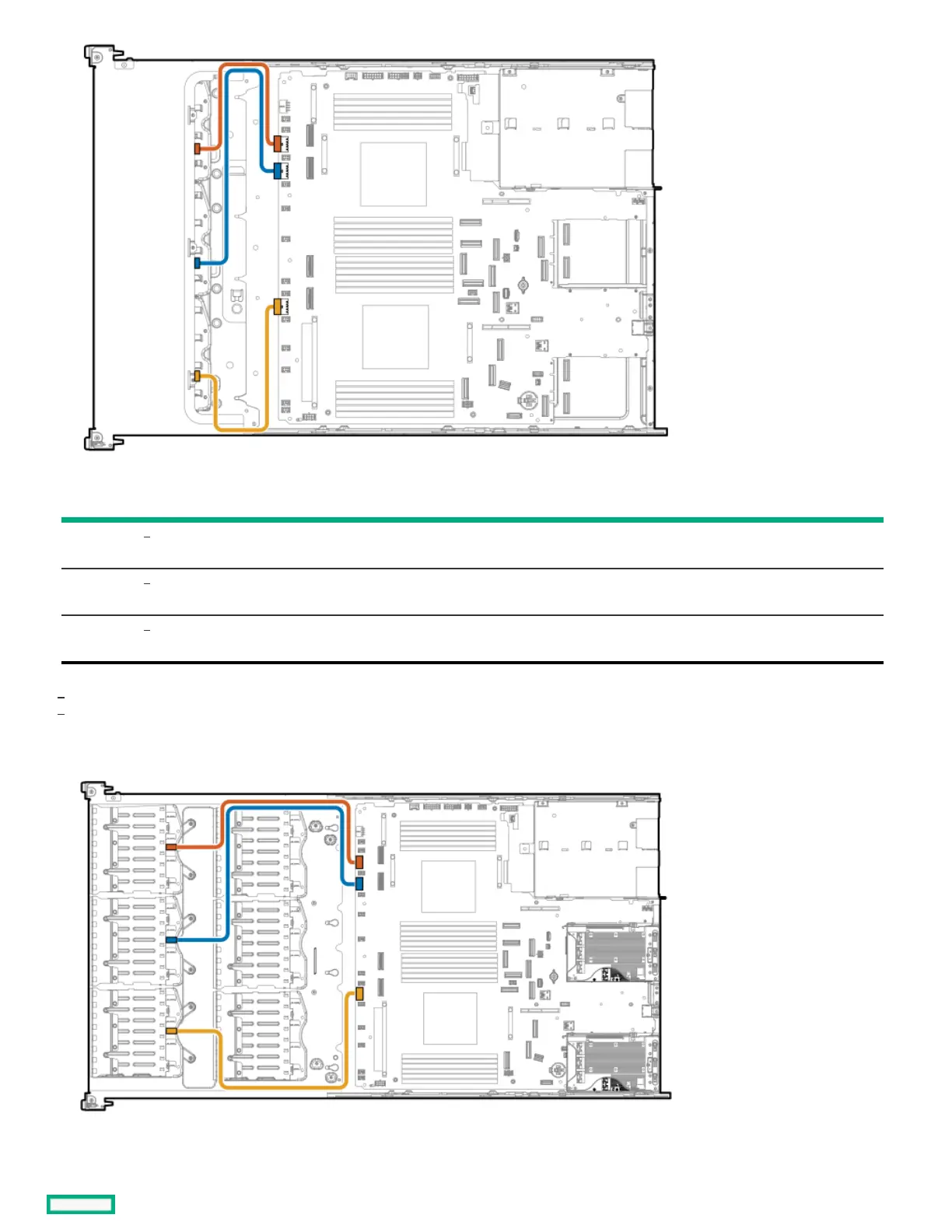

HPE ProLiant DL385 Gen11 - 48 SFF drive power cabling

To Next Page

To Previous Page

Cable part numberCable part number ColorColor FromFrom ToTo

P57198-001 Orange Drive backplane power connector

Box 1

P58023-001 Blue Drive backplane power connector

Box 2

P57209-001 Yellow Drive backplane power connector

Box 3

Option kit: P57845-B21

Option kit: P57952-B21

48 SFF drive power cabling48 SFF drive power cabling

HPE ProLiant DL385 Gen11 Server Maintenance and Service Guide 314
