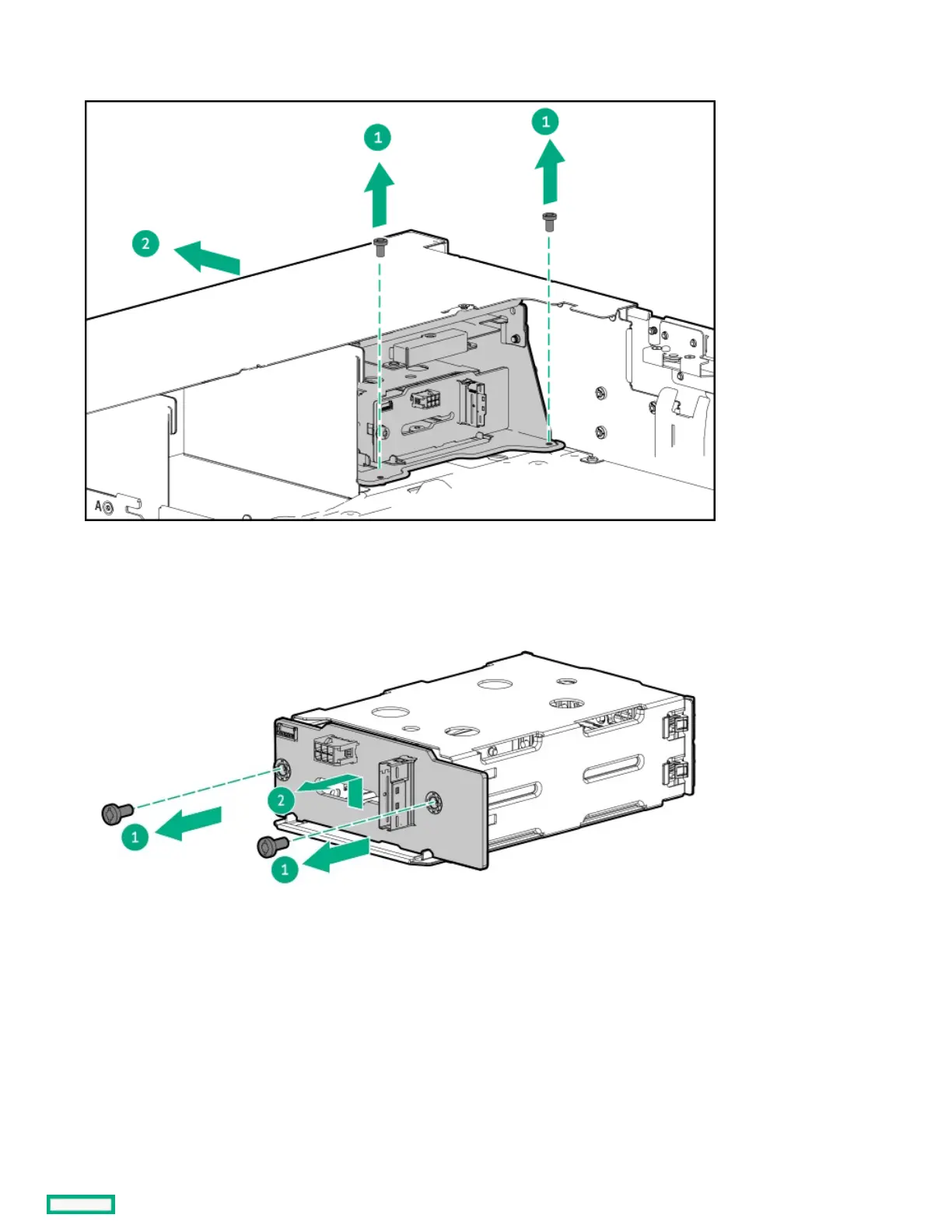

a. Remove the universal media bay screws (callout 1).
b. Remove the universal media bay from the server (callout 2).
15. Remove the 2 SFF stacked drive backplane:
a. Remove the backplane screws (callout 1).
b. Remove the backplane from the drive cage (callout 2).
ResultsResults
To replace the component, reverse the removal procedure.
Removing and replacing the midplane drive backplaneRemoving and replacing the midplane drive backplane
PrerequisitesPrerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
About this taskAbout this task
