HPE ProLiant DL385 Gen11 - GPU riser cabling

To Next Page

To Previous Page

Option kit: P57893-B21

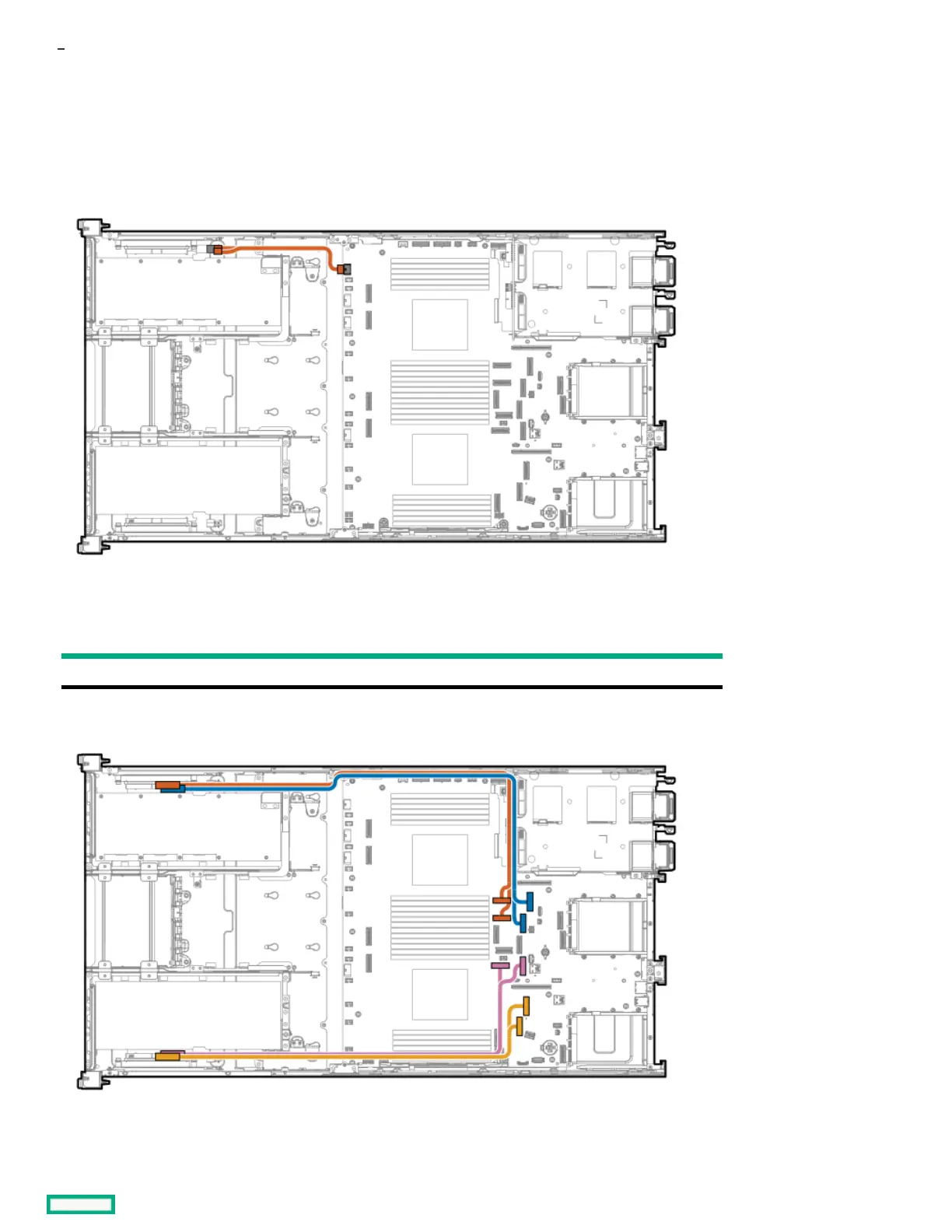

GPU riser cablingGPU riser cabling

Cable part numberCable part number ColorColor FromFrom ToTo

P58157-001 Orange GPU riser power connector GPU riser card

HPE ProLiant DL385 Gen11 Server Maintenance and Service Guide 350
