10. Remove the riser cage.
11. If an expansion card with internal cables is installed on the riser, disconnect the cables from the card.
12. Remove the expansion card .
13. Remove the riser board.

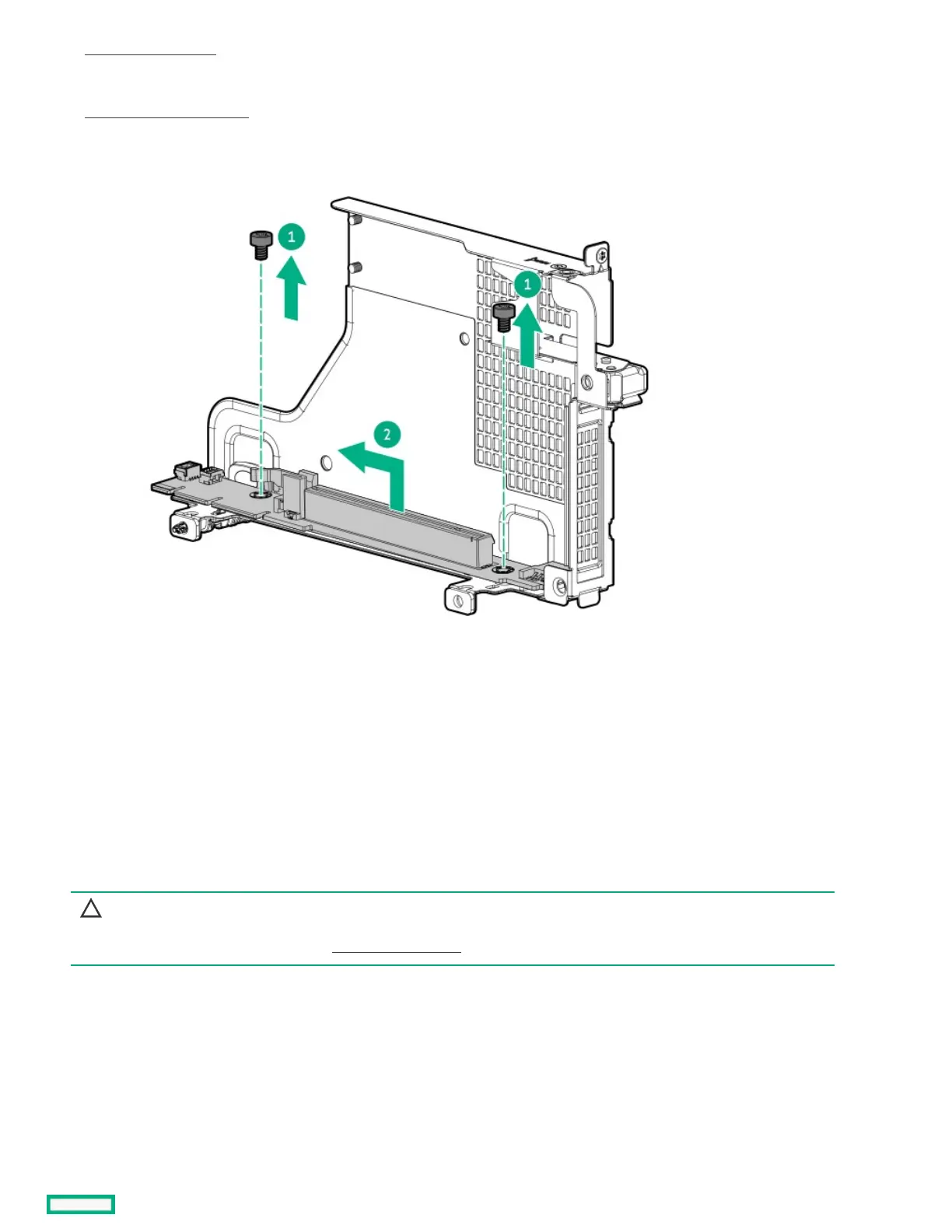

Retain all screws. These screws will be used to secure the new riser board spare.
ResultsResults
To replace the component, reverse the removal procedure.
Removing and replacing the PCIe5 x16 base riser from three-slot riser cageRemoving and replacing the PCIe5 x16 base riser from three-slot riser cage
PrerequisitesPrerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
About this taskAbout this task
CAUTION:CAUTION:
A discharge of static electricity from a finger or other conductor might damage system boards or other static-sensitive
devices. To prevent damage, observe antistatic precautions.
