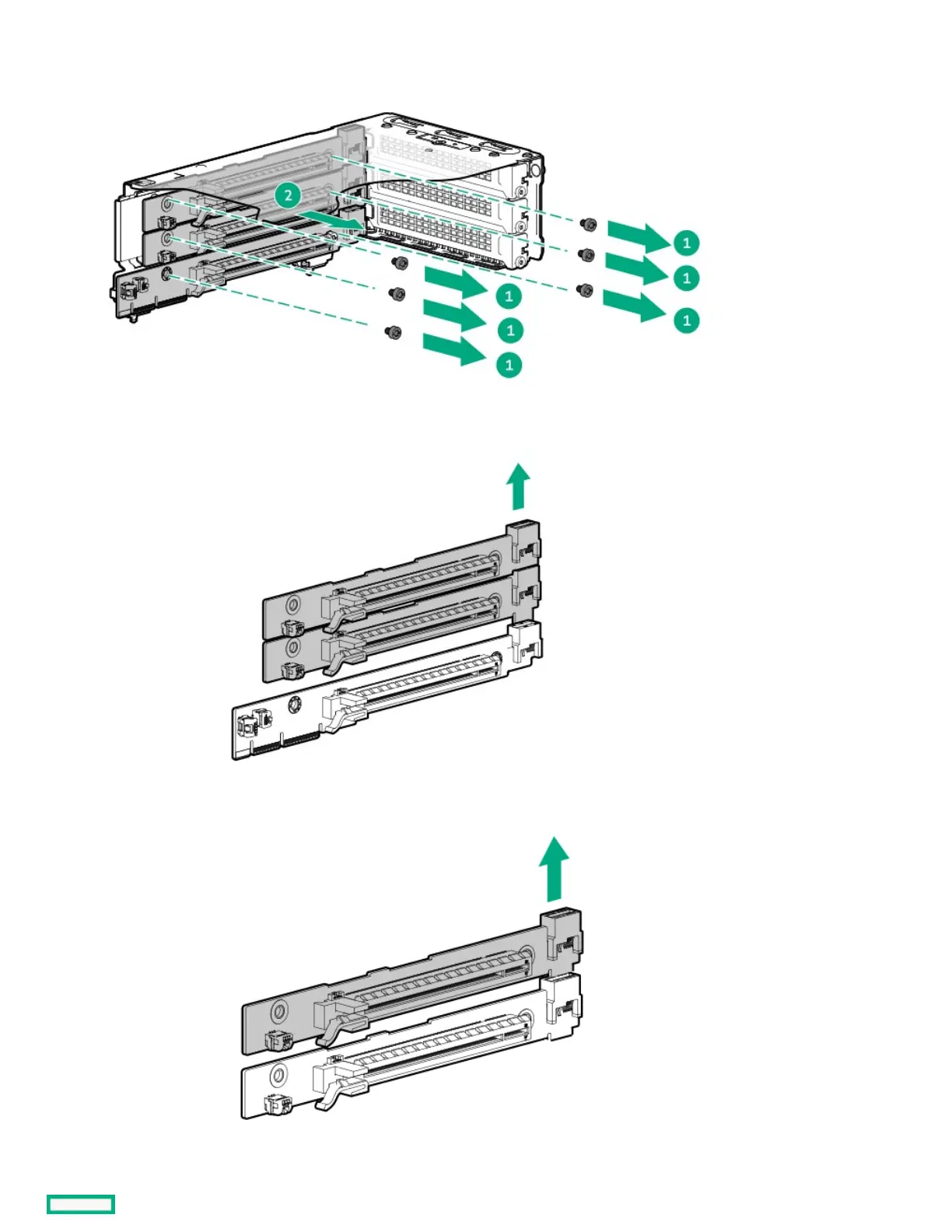

14. Detach the stacking risers from the base riser.

15. Detach the stacking risers.

Removing the stacking riser from the tertiary riser cageRemoving the stacking riser from the tertiary riser cage

HPE ProLiant DL385 Gen11 Server Maintenance and Service Guide 156
