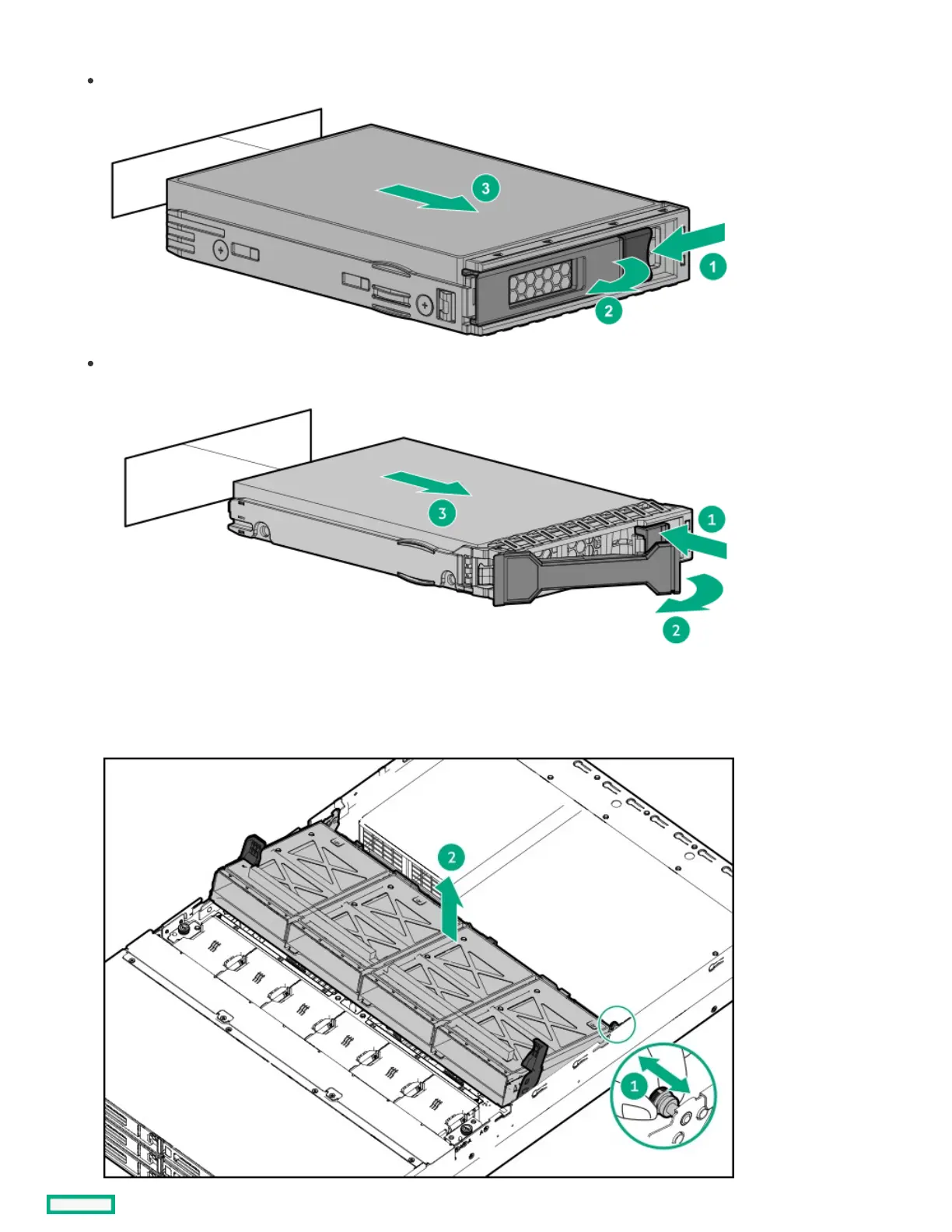

10. Remove all midplane drives.
LFF drive
SFF drive
11. Remove the midplane drive cage:
a. Pull the plunger pin on the rear right side of the drive cage (callout 1).
b. Use the drive cage latches to lift the cage out of the server (callout 2).
HPE ProLiant DL385 Gen11 Server Maintenance and Service Guide 55
