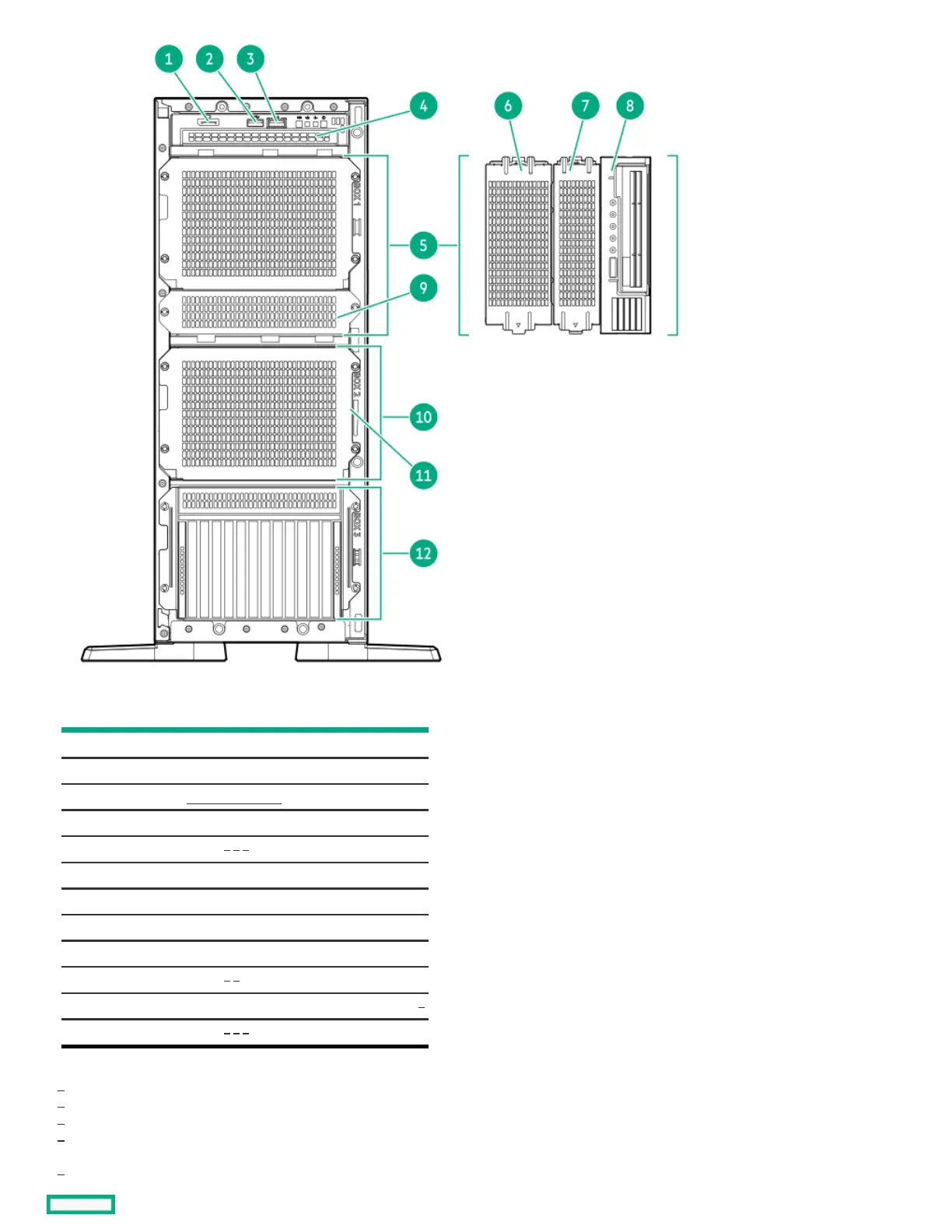

ItemItem DescriptionDescription
1 DisplayPort 1.1a
2 USB 3.2 Gen 1 port
3 iLO service port
4 Optical drive bay
5 Box 1
6 Full-height media bay blank
7 Media bay 2
8 Media bay 1
9 Media bay filler panel
10 Box 2
11 Serial number/iLO information pull tab
12 Box 3
All three boxes support LFF and SFF drive cage options. This server supports mixed LFF + SFF hot-plug drive configurations.
Box 1 also supports USB RDX docking station.
The x1 NVMe drives are supported in Box 1–2.
The serial number/iLO information pull tab is double-sided. One side shows the server serial number and the customer asset tag label.
The other side shows the default iLO account information.
E3.S drives are supported in Box 3. When the E3.S drives are installed, LFF/SFF drives are not supported in Boxes 1 and 2. Two
