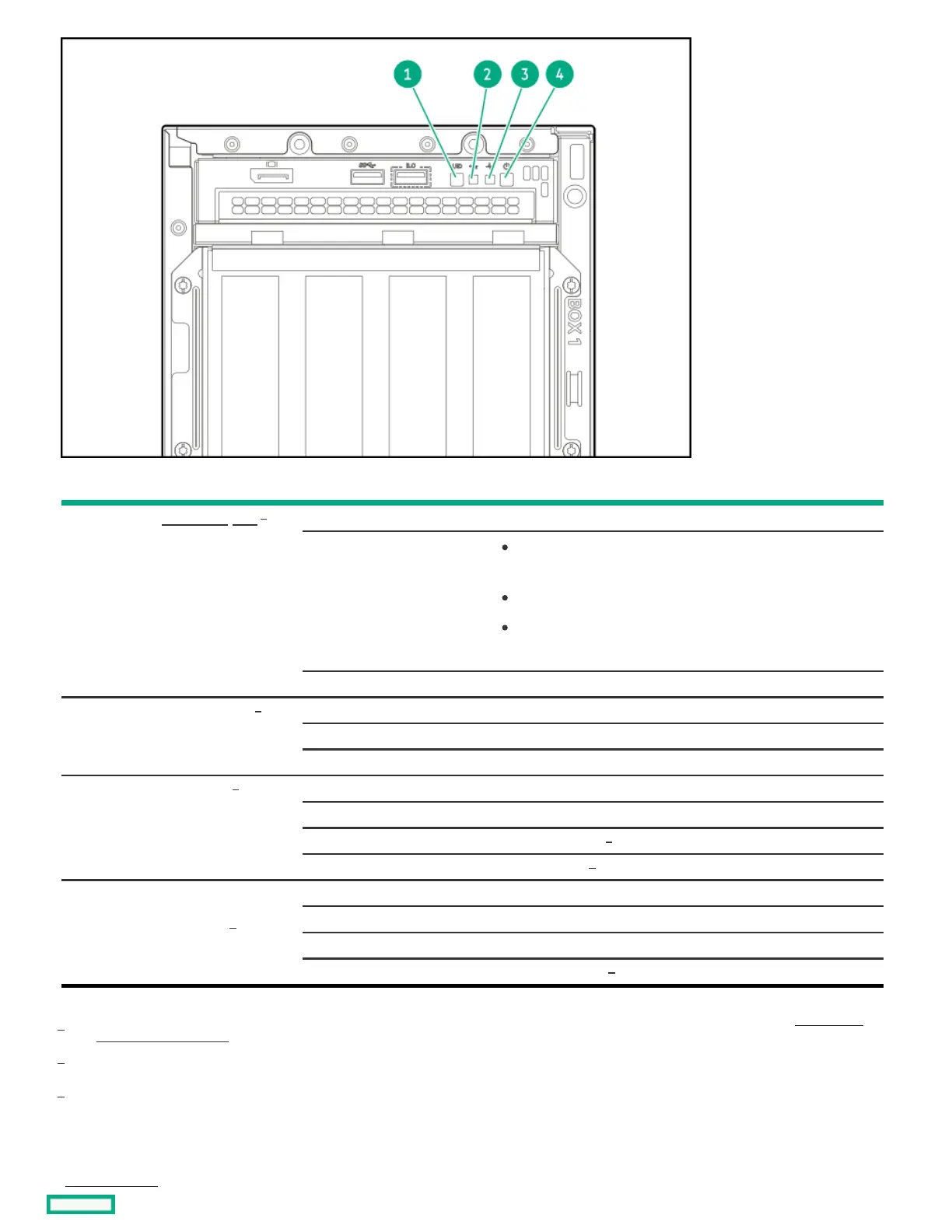

ItemItem DescriptionDescription StatusStatus DefinitionDefinition
1 UID button/LED Solid blue Activated
Flashing blue
1 flash per second—Remote management or firmware
upgrade in progress
4 flashes per second—iLO manual reboot sequence initiated
8 flashes per second—iLO manual reboot sequence in
progress
Off Deactivated
2 NIC status LED Solid green Linked to network
Flashing green Network active
Off No network activity
3 Health LED Solid green Normal
Flashing green iLO is rebooting
Flashing amber System degraded
Flashing red System critical
4 Power On/Standby
button and system
power LED
Solid green System on
Flashing green Performing power-on sequence
Solid amber System in standby
Off No power present
When the four LEDs described in this table flash simultaneously, a power fault has occurred. For more information, see Front panel
LED power fault codes.
If the health LED indicates a degraded or critical state, review the system Integrated Management Log (IML) or use HPE iLO to review
the system health status.
Facility power is not present, power cord is not attached, no power supplies are installed, power supply failure has occurred, or the
front I/O cable is disconnected.
