hpmont HD5L-PLUS Series User Manual

Shenzhen Hpmont Technology Co., Ltd. Appendix B Modbus Communication Protocol
HD5L-PLUS Series User Manual V1.0 117
Appendix B Modbus Communication Protocol
1. Introduction
HD5L-PLUS series controllers provide one RS485 communication interface which uses the standard
Modbus communication protocol.
By using the host computer (including communication devices such as computer and PLC) the user
can operate to read-write the controller’s function code, read the status parameters and write the
control command etc. The controller is in slave mode when it is communicating.
Communication Terminal
Communication terminal MOD+/MOD-, see section 4.4.2,on page 19.
The transmitting mode is shown in following table.
Port Asyn, half-duplex
Format 1-8-2 (1 start bit, 8 data bits, 2 stop bits), no parity, RTU
Baut Rate
9600bps
Relative Setting Refe to F14: SCI Communication Parameters, on page 67

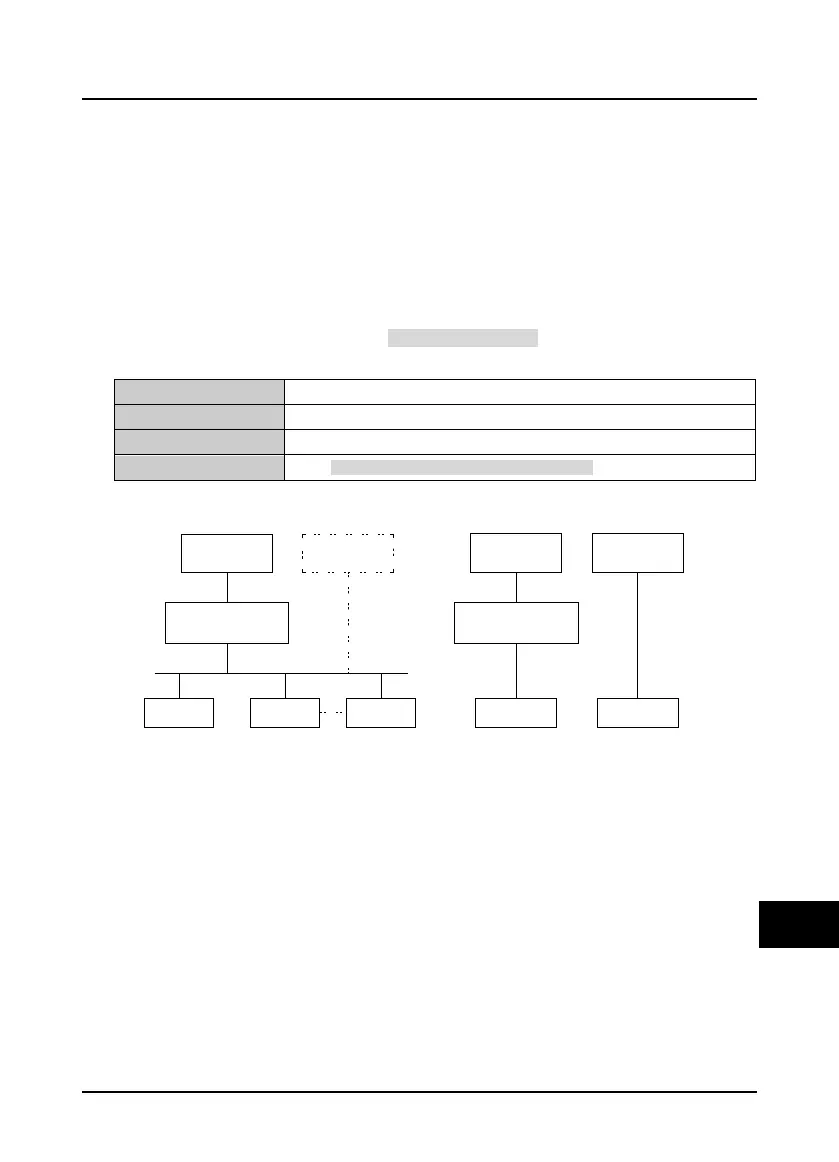

Network Mode
Single-master,sing
le-slave
P
C master PLC master
RS485
Single-master, multi-slave
PC master
PLCmaster
RS232/RS485
conversion module
RS232/RS485
conversion module
RS485
ControllerController Controller Controller Controller
B
