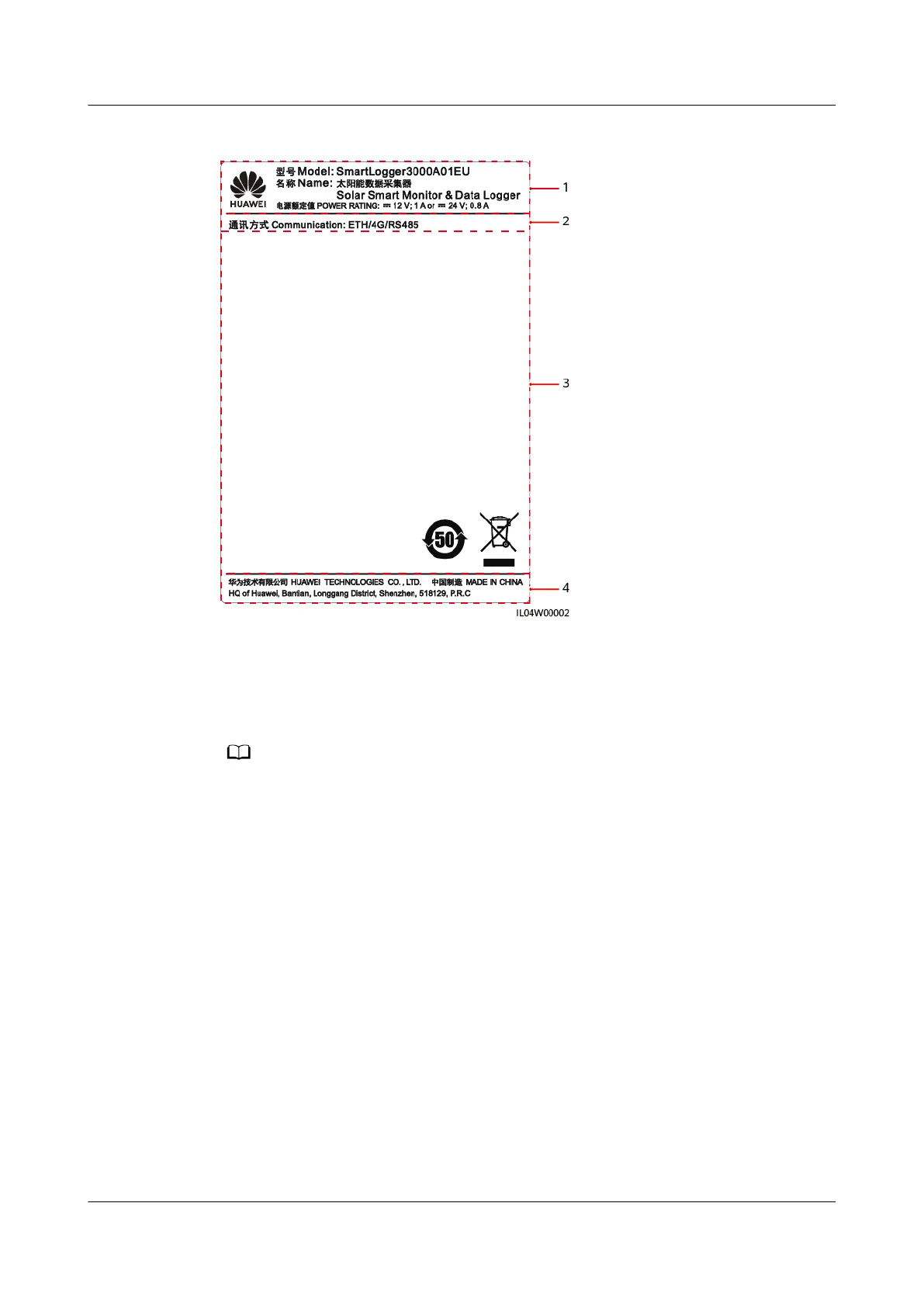

Figure 2-2 Nameplate
(1) Trademark, product model, and power
rating
(2) Communications mode
(3) Compliance symbols (4) Company name and place of manufacture
The nameplate gure is for reference only.
2.1.2 Networking
Function
The SmartLogger monitors and manages PV and energy storage systems. It
converges all ports, converts protocols, collects and stores data, and centrally
monitors and maintains the devices in the systems.
Network Application
The SmartLogger is applicable to PV and energy storage systems. It supports the
following:
● Local operations on the SmartLogger using the mobile phone app through the
built-in WLAN
● RS485 networking, which enables the SmartLogger to connect to:
– Huawei devices such as solar inverters and PID modules
SmartLogger3000
User Manual 2 Product Overview
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 9
