Huawei SmartLogger3000 User Manual

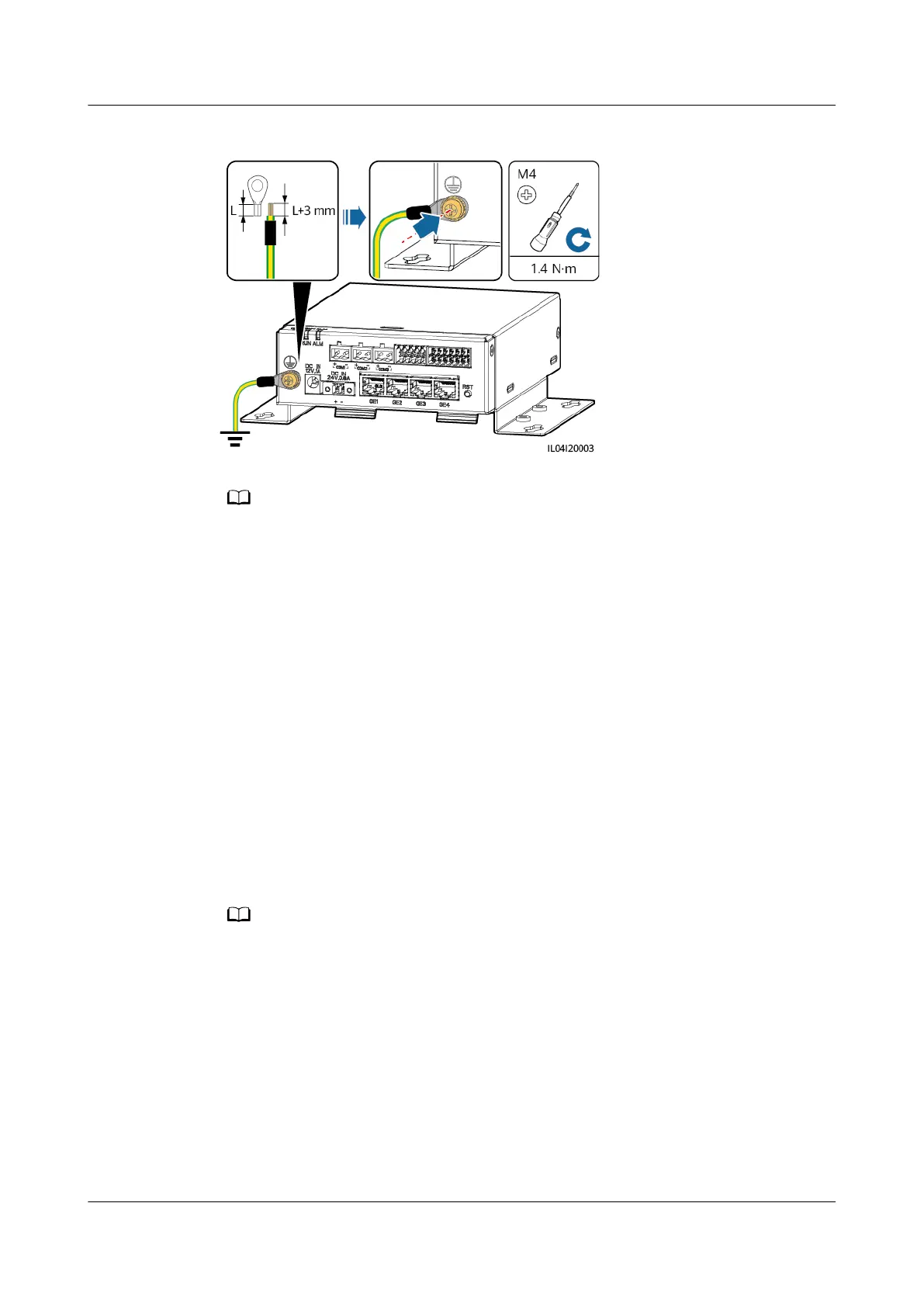

Figure 4-14 Connecting a PE cable
NO TE
If the SmartLogger is connected to the SmartModule over a connecting plate, connect a PE
cable to the ground point of the SmartLogger or SmartModule based on site requirements.
----End
4.2.3 Connecting the Ethernet Cable
Context
● The SmartModule can be connected to the SmartLogger and a PC over the GE
port.
● Connect the LAN port of the SmartLogger to one of the GE ports (GE1 and
GE4 recommended) of the SmartModule through an Ethernet cable. The
SmartModule obtains an IP address from the DHCP server and automatically
registers with the SmartLogger.
Procedure
Step 1 Connect the Ethernet cable.
NO TE
When crimping the network cable, ensure that the shielding layer of the cable is securely
connected to the metal shell of the RJ45 connectors.
SmartLogger3000
User Manual 4 Cable Connections
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 54
