3.5 Installing the SmartLogger and SmartModule
Combine the SmartLogger and SmartModule and install them on a wall or along
a guide rail.
Wall-mounted Installation
Avoid drilling holes into the water pipes and power cables buried in the wall.
Step 1 Combine the SmartLogger and SmartModule.
If the SmartLogger and SmartModule have been combined before delivery, skip this step.

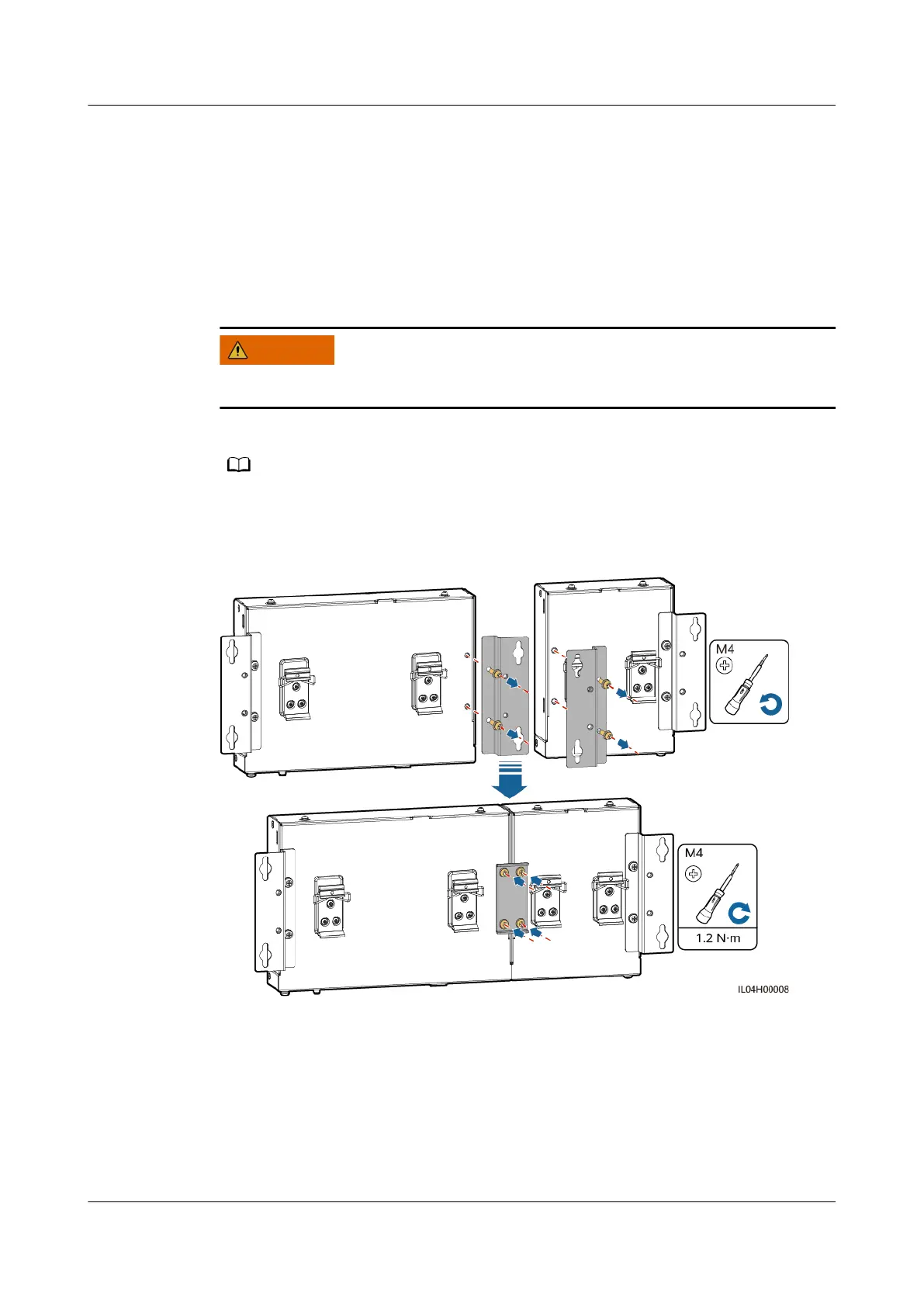

Figure 3-4 Connecting the SmartLogger to the SmartModule using a connecting
plate
Step 2 Install the SmartLogger and SmartModule.
SmartLogger3000
User Manual 3 Device Installation
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 33
