Huawei SmartLogger3000 User Manual

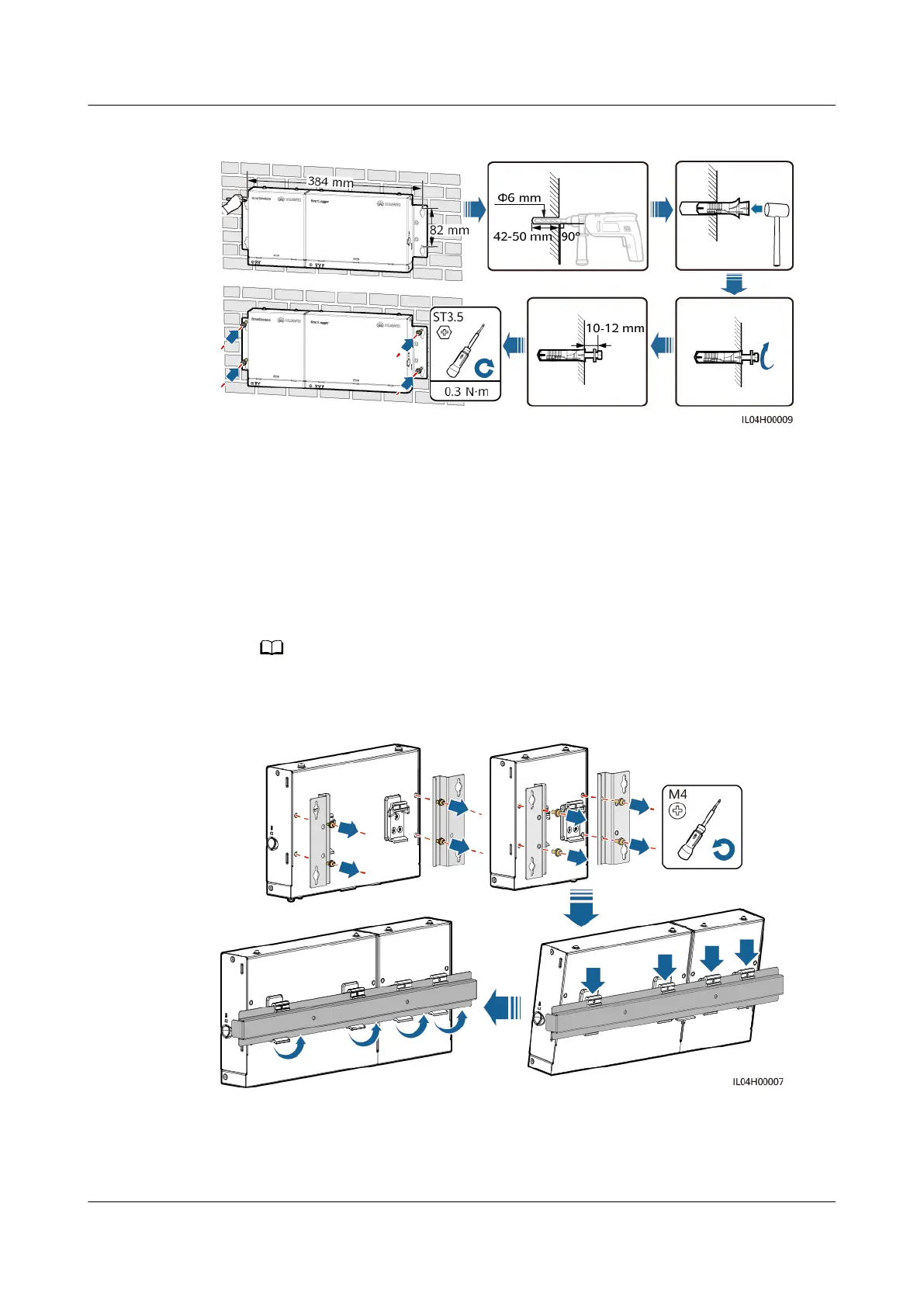

Figure 3-5 Wall-mounted installation
----End
Guide Rail-mounted Installation (Stand-alone)
Prepare a 35 mm standard guide rail by yourself. Ensure that the guide rail:
● Has sucient length for securing the SmartLogger and SmartModule. The
recommended eective length is 360 mm or greater.
● Has been secured before you install the SmartLogger and SmartModule.
NO TE
Ensure that the SIM card slot on the SmartLogger is not blocked.
Figure 3-6 Guide rail-mounted installation
Guide Rail-mounted Installation (Combined)
Prepare a 35 mm standard guide rail by yourself. Ensure that the guide rail:
SmartLogger3000
User Manual 3 Device Installation
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 34
