6.1.1 WebUI Layout

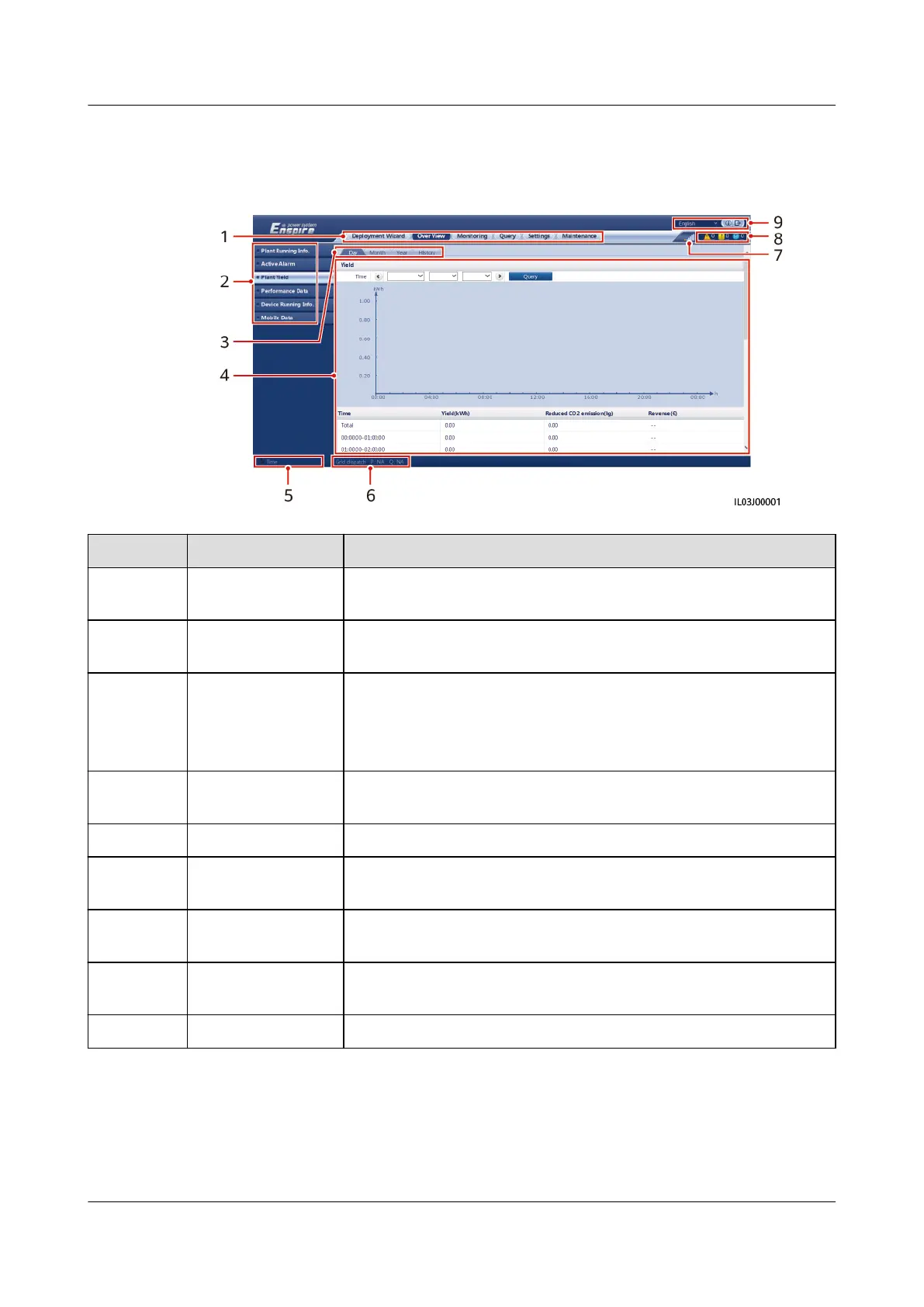

Figure 6-1 WebUI layout
No. Function Description
1 First-level menu Choose the corresponding rst-level menu before you perform
any operation over the WebUI.
2 Second-level
menu
Under the rst-level menu, choose the device to be queried or
the parameter to be set under the second-level menu.
3 Third-level menu ● After choosing a second-level menu, choose a third-level
menu to access the query or setting page.
● There are no third-level menus under certain second-level
menus.
4 Details page Displays details of the queried information or parameter
setting.
5 System time Displays the current system time.
6 Power grid
scheduling
Displays the current power grid scheduling mode and
scheduling value of the system.
7 Icon for SIM card
signal strength
Displays the signal strength of the SIM card.
8 Alarm icon Displays the severities and number of active system alarms. You
can click a number to access the alarm page.
9 Display language Selects the display language or chooses to log out.
SmartLogger3000
User Manual 6 WebUI Operations
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 66
