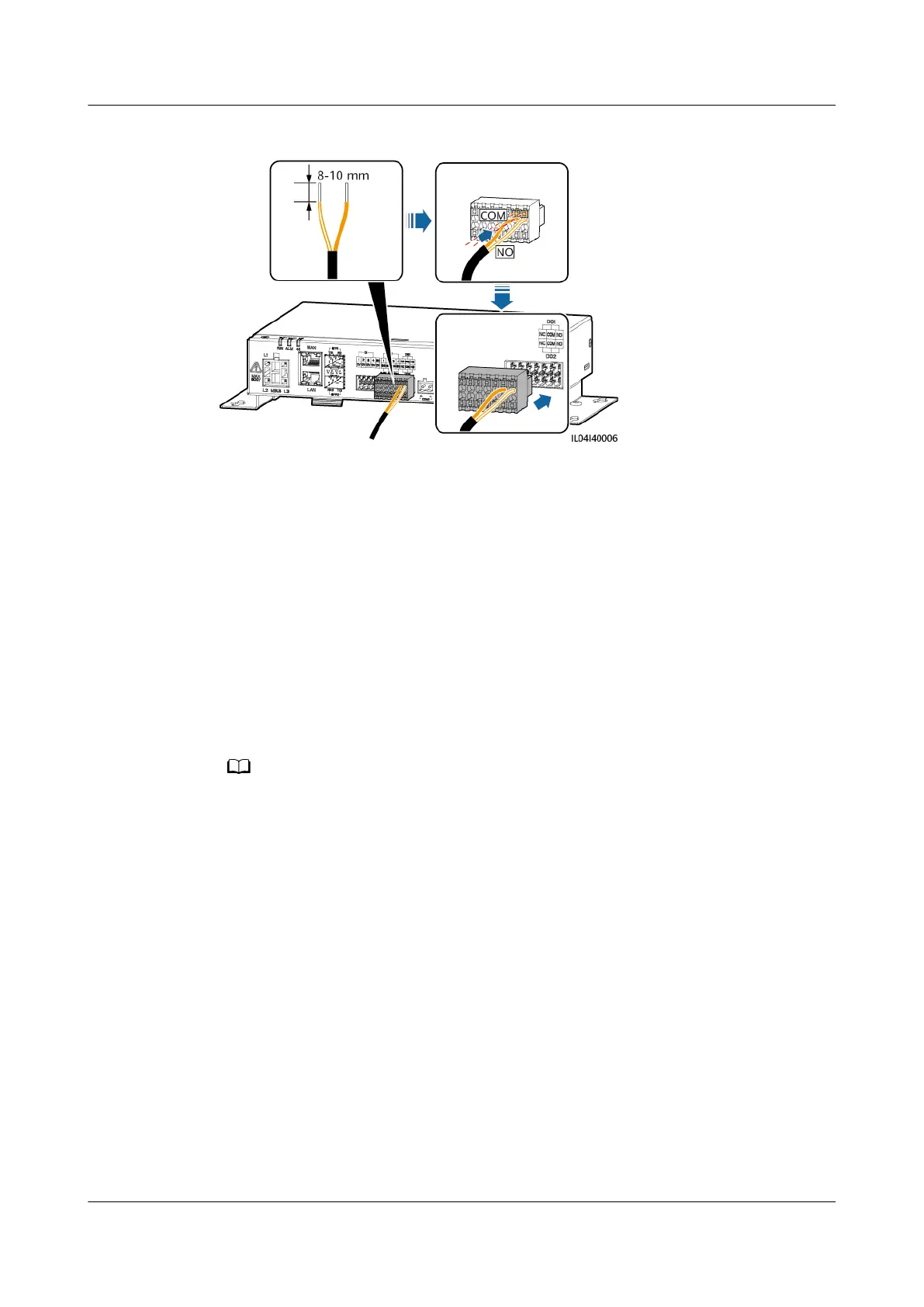

Figure 4-9 Connecting a DO Signal Cable
----End
4.1.9 Connecting the Ethernet Cable
Context
● The SmartLogger can connect to an Ethernet switch, router, or PC over a WAN
port.
● The SmartLogger can be connected to the SmartModule or a PC over the LAN
port.
Procedure
Step 1 Connect the Ethernet cable.
When crimping the network cable, ensure that the shielding layer of the cable is securely
connected to the metal shell of the RJ45 connectors.
SmartLogger3000
User Manual 4 Cable Connections
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 48
