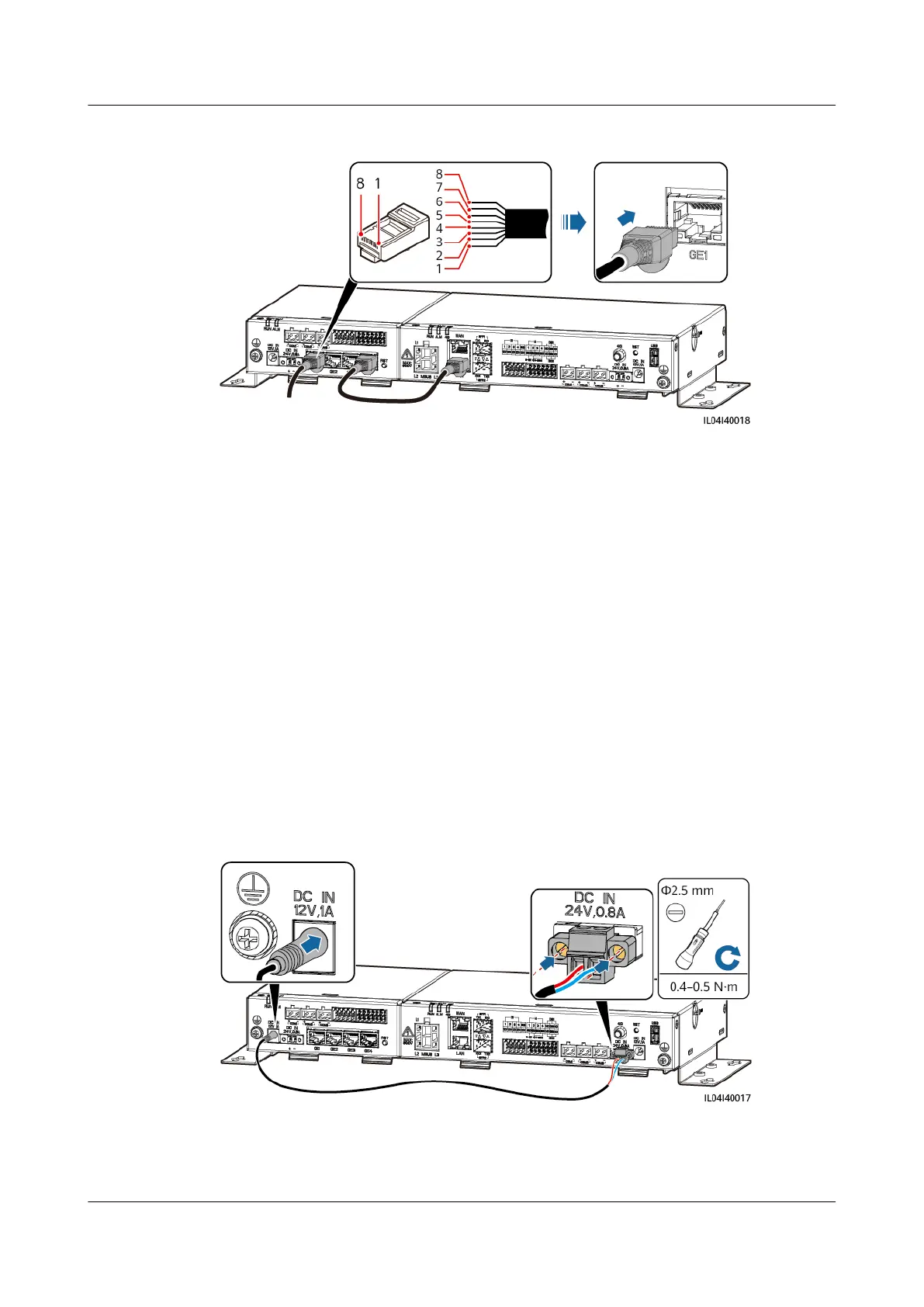

Figure 4-15 Connecting an Ethernet Cable
(1) White-and-orange (2) Orange (3) White-and-green (4) Blue
(5) White-and-blue (6) Green (7) White-and-brown (8) Brown
----End
4.2.4 Connecting the 12 V Power Input Cable
Context
The SmartLogger connects to the power supply through the 12 V power input
port, and the 24 V power input port of the SmartLogger functions as the 12 V
power output port to supply power to the SmartModule.
Procedure
Step 1 Connect the 12 V power input cable.
Figure 4-16 Connecting the 12 V power input cable
----End
SmartLogger3000
User Manual 4 Cable Connections
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 55
