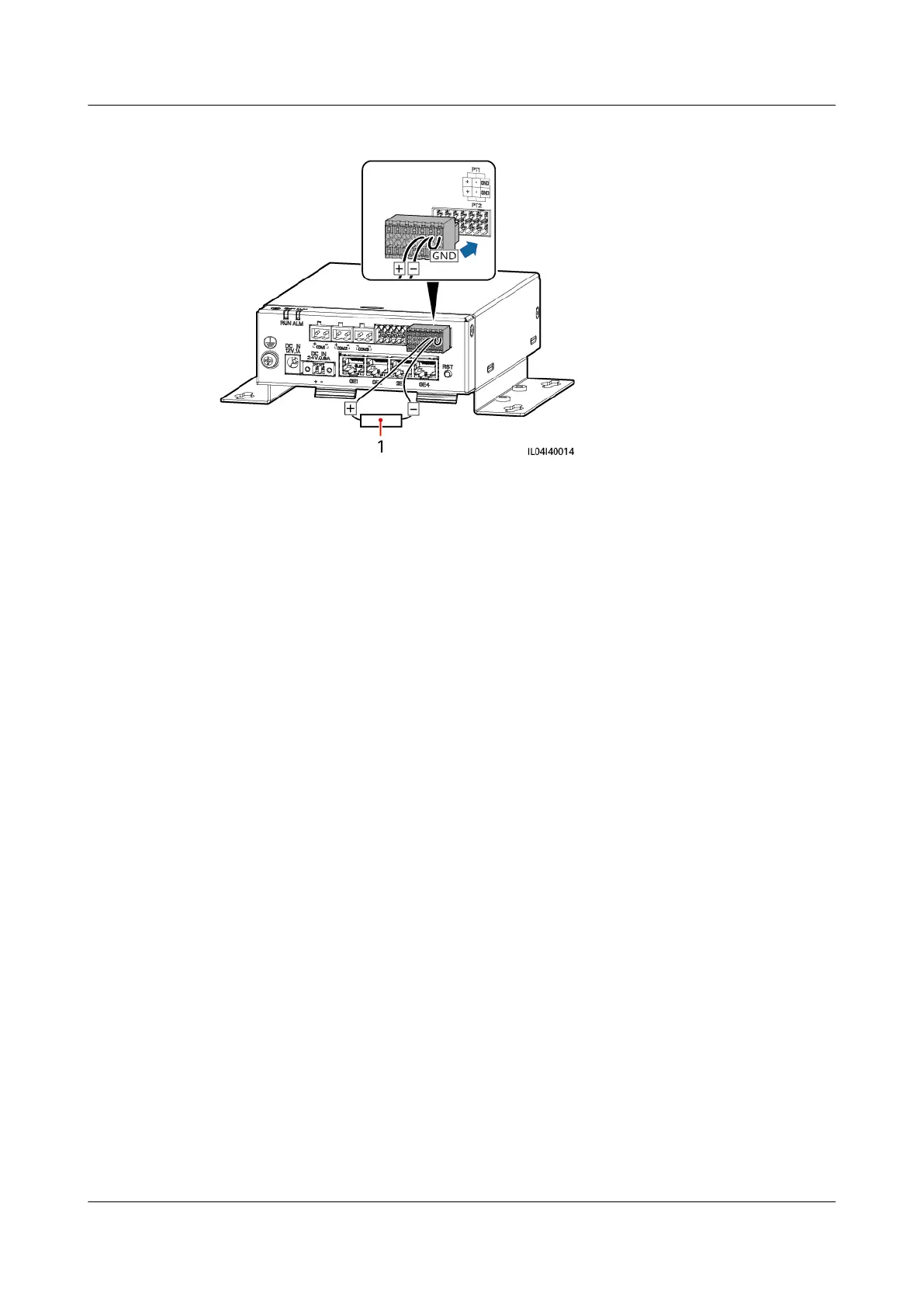

Figure 4-23 Connection to a two-wire PT100/PT1000
(1) PT100/PT1000 temperature sensor
----End
4.2.10 Connecting the 24 V Power Input Cable
Context
The 24 V power input cable needs to be connected in the following scenarios:
● Scenario 1: The 24 V DC power supply is used.
● Scenario 2: The SmartModule connects to the power supply through the 12 V
power input port, and the 24 V power input cable functions as the 12 V power
output port to supply power to a device.
Procedure
Step 1 Connect the power input cable.
SmartLogger3000
User Manual 4 Cable Connections
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 61
