Figure 3-8 Guide Rail-mounted Installation
----End
3.6 Installing a Power Adapter
A power adapter can be installed on a wall or at surface.
If the SmartLogger requires a power adapter for power supply, install a power
adapter.
Wall-mounted installation
It is recommended that the power adapter be installed on the right side of the
SmartLogger. Keep the AC power cable port upward.
Avoid drilling holes into the water pipes and power cables buried in the wall.

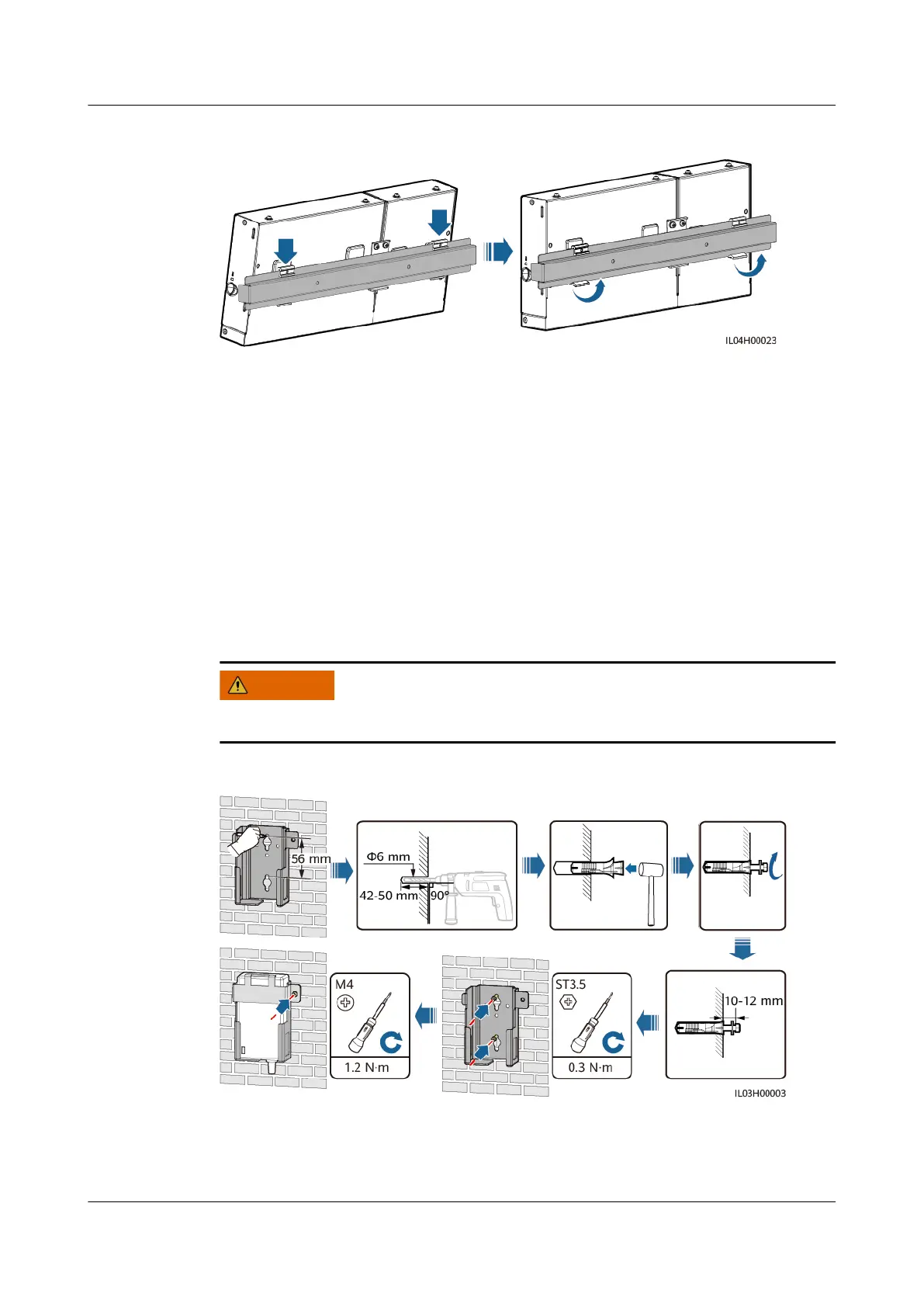

Figure 3-9 Wall-mounted Installation (Mode 1)
SmartLogger3000
User Manual 3 Device Installation
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 36
To Next Page
