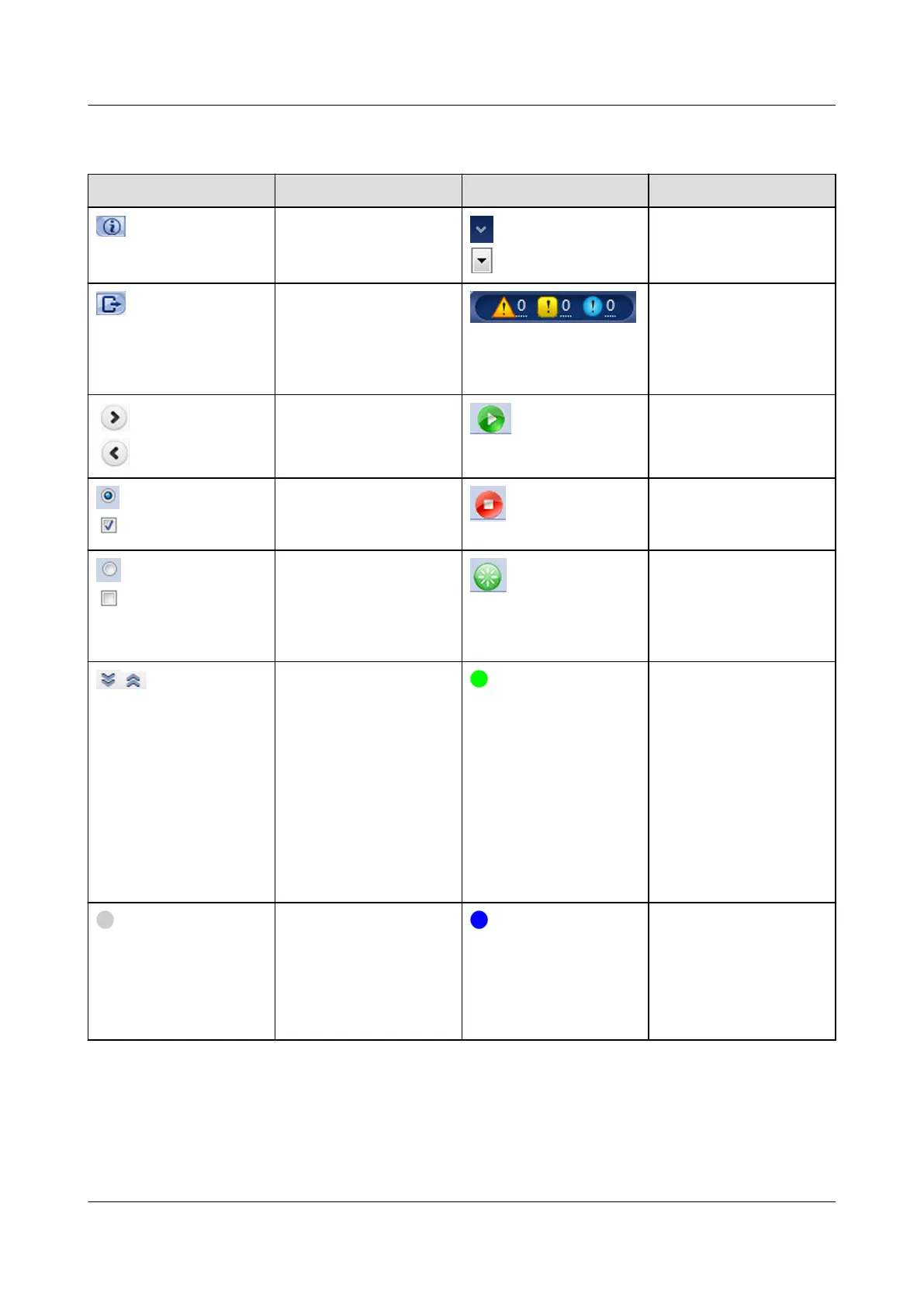

6.1.2 Icon Description
Icon Description Icon Description
Click the About icon to
query the WebUI
version information.
Click the Drop-down
icon to select a
parameter or time.
Click the Exit icon to
log out.
Alarms are classied
into major, minor, and
warning ones. Click
the Alarm icon to
query an alarm.
Click the Increase/
Decrease icon to
adjust time.
Click the Start icon to
start the device.
The Select icon
indicates that a
parameter is selected.
Click the Stop icon to
shut down the device.
The Select icon
indicates that a
parameter is not
selected. Click the icon
to select a parameter.
Click the Reset icon to
reset the device.
Hide icon and Display
icon.
● The inverter and
Smart PCS are in
Running state.
● The device such as
the EMI, power
meter, slave
SmartLogger, or
MBUS is in Online
state.
● The PID is in
Running state.
The device is in
Disconnection state.
If a device is in
Disconnection state,
its parameters cannot
be set.
The inverter and
Smart PCS are in
Loading state.
SmartLogger3000
User Manual 6 WebUI Operations
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 71
