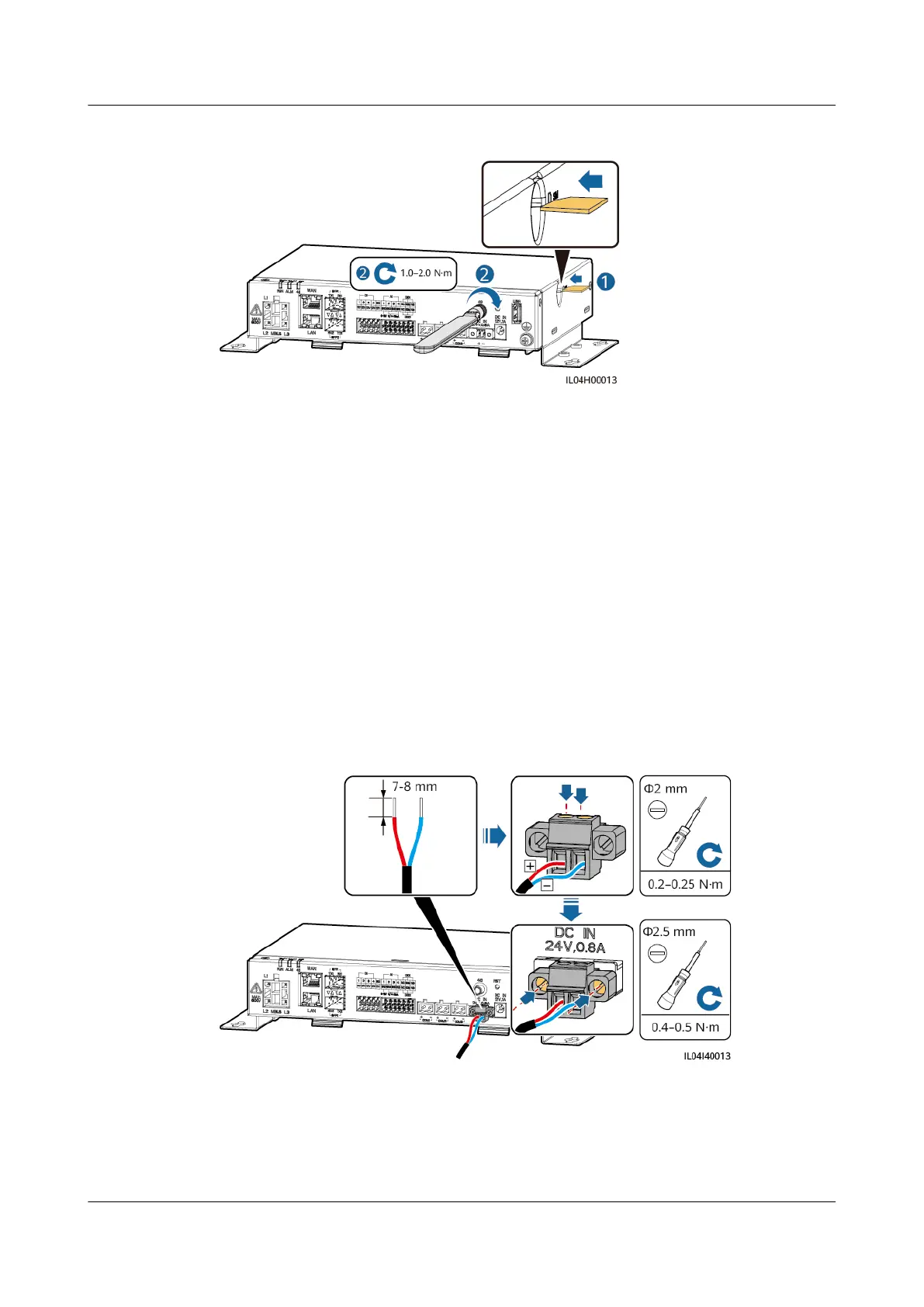

Figure 4-12 Installing the SIM card and antenna
----End
4.1.12 Connecting the 24 V Input Power Cable
Context
The 24 V input power cable needs to be connected in the following scenarios:
● Scenario 1: The 24 V DC power supply is used.
● Scenario 2: The SmartLogger connects to the power supply through the 12 V
input power port, and the 24 V input power port functions as the 12 V output
power port to supply power to devices.
Procedure
Step 1 Connect the input power cable.
Figure 4-13 Connecting the input power cable
----End
4.2 Connecting Cables to the SmartModule
SmartLogger3000
User Manual 4 Cable Connections
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 52
