4.2.8 Connecting the AI Signal Cable
Context
The SmartModule can receive AI signals from EMIs over AI ports. It is
recommended that the signal transmission distance be less than or equal to 10 m.
Procedure
Step 1 Connect the AI signal cable.

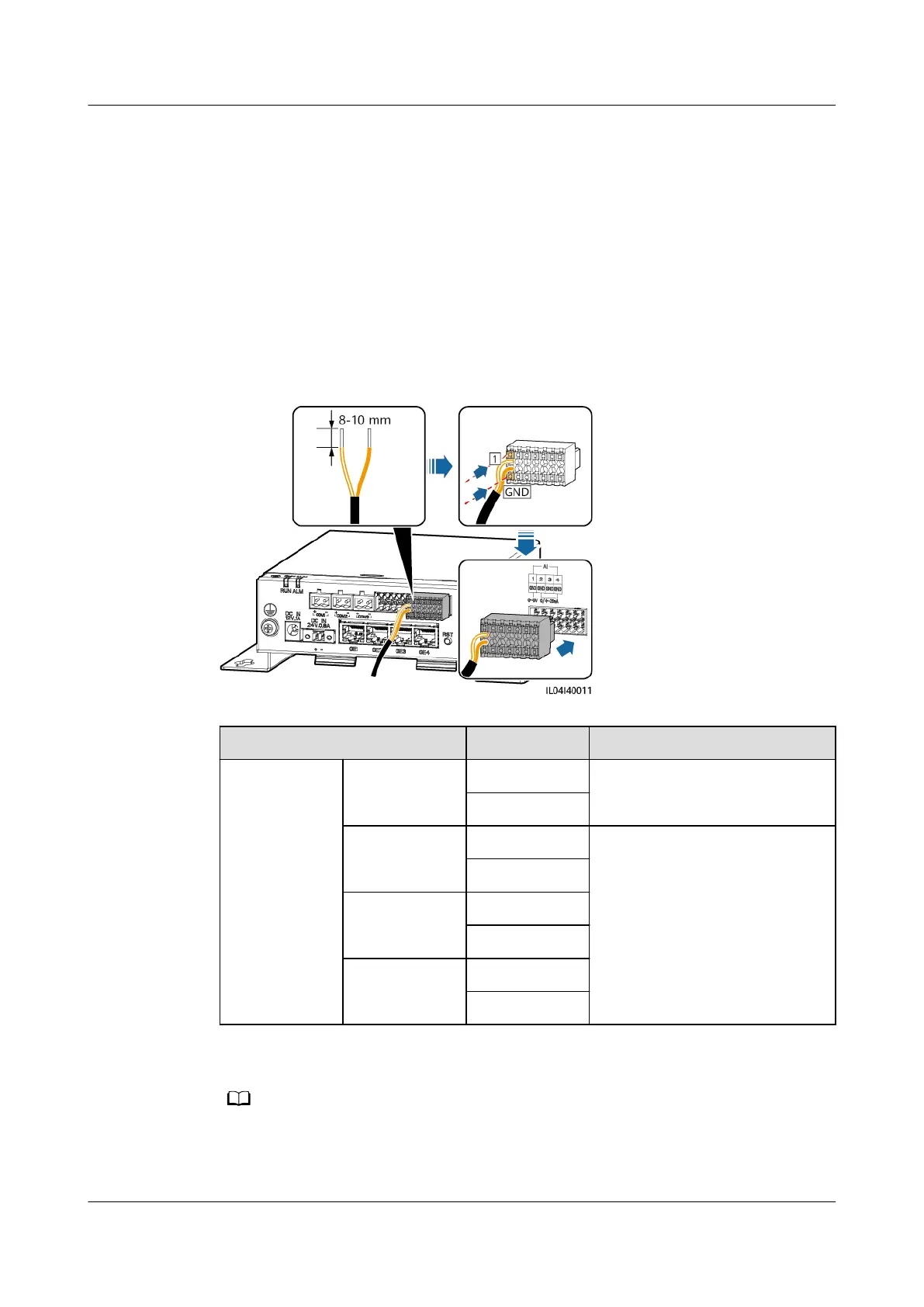

Figure 4-21 Connecting the AI signal cable
Port Silk Screen Description
AI AI1 1 Supports 0–10 V input voltage.
GND
AI2 2 Support 0–20 mA or 4–20 mA
input current.
GND
AI3 3
GND
AI4 4
GND
NO TE
AI ports 1, 2, 3, and 4 are for AI+ signals, and the GND port is for AI– signals.
----End
