6.3.8.3 Characteristic Curves
The web software versions corresponding to the WebUI screenshots in this
document are V300R001C00SPC050. The screenshots are for reference only.
Step 1 Set characteristic curve parameters and click Submit.

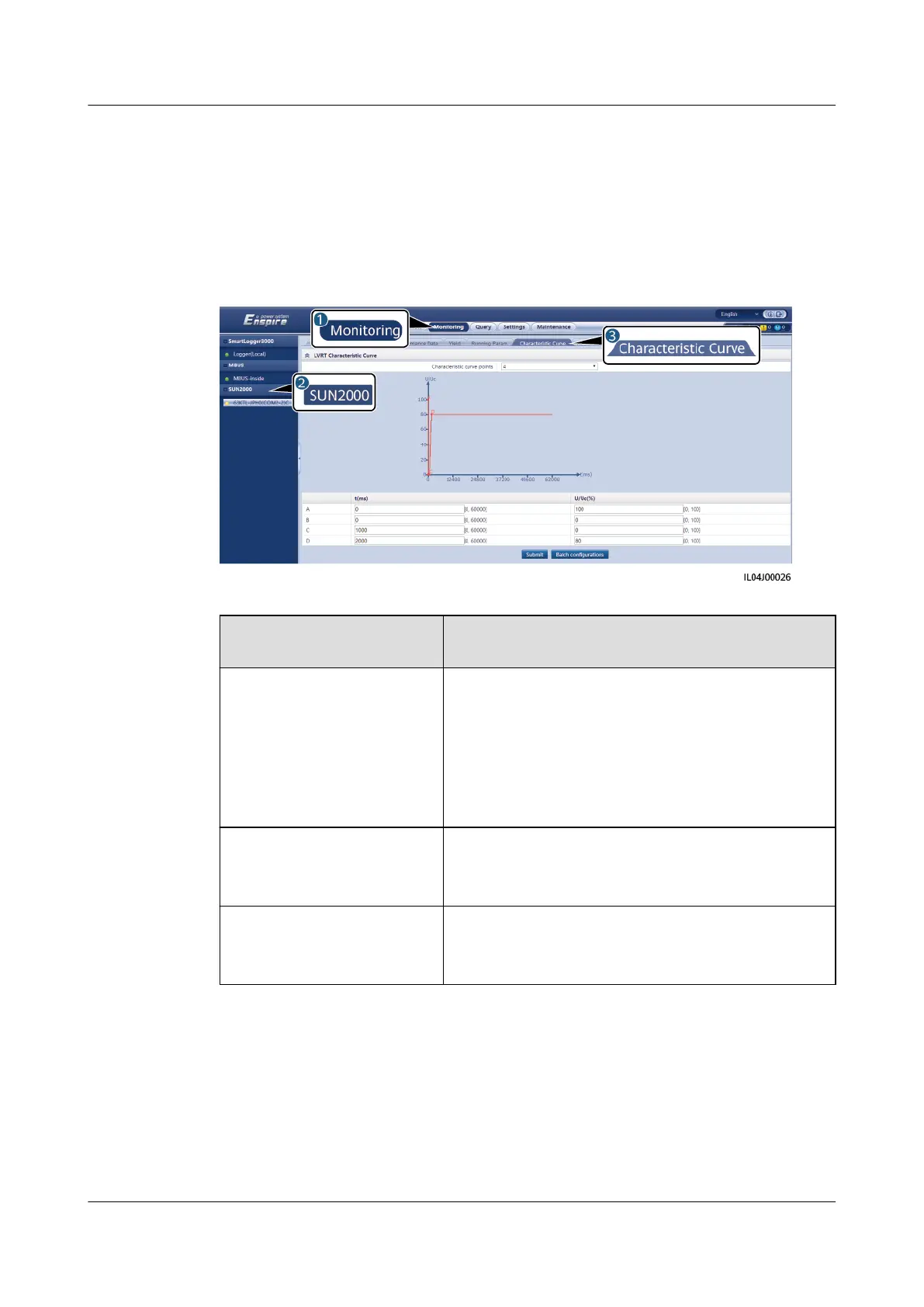

Figure 6-49 Characteristic curves
Characteristic Curve
Name
Description
LVRT Characteristic Curve Congure this characteristic curve based on the
power grid standard.
NOTE
The SmartLogger supports only the 60-second LVRT
characteristic curve
conguration. If the power grid
standard requires that the duration of LVRT be greater
than 60s, LVRT Characteristic Curve is not displayed for
the grid code.
[Voltage Rise
Suppression]Q-U curve
1. Set Voltage Rise Suppression to Enable.
2. Congure this characteristic curve based on the
power grid standard.
[Voltage Rise
Suppression]P-U curve
1. Set Voltage Rise Suppression to Enable.
2. Congure this characteristic curve based on the
power grid standard.
----End
6.3.8.4 Battery
This section describes how to query or set battery parameters when the inverter is
connected to a battery.
SmartLogger3000
User Manual 6 WebUI Operations
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 141
