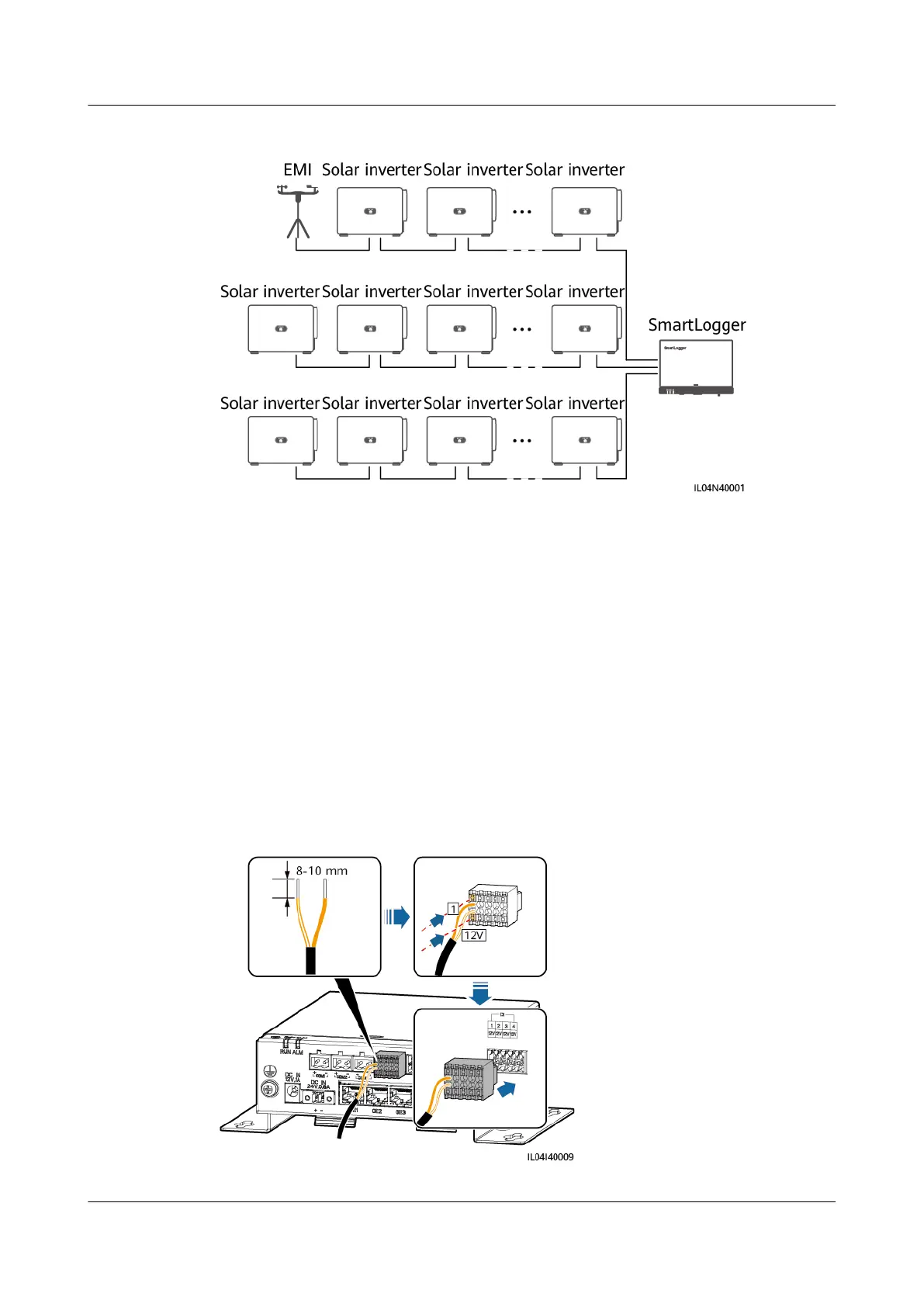

Figure 4-18 Cascading connection

----End

4.2.6 Connecting the DI Signal Cable

Context

The SmartModule can receive DI signals such as remote commands and alarms

over DI ports. It can only receive passive dry contact signals. It is recommended

that the signal transmission distance be less than or equal to 10 m.

Procedure

Step 1 Connect the DI signal cable.

Figure 4-19 Connecting the DI signal cable

SmartLogger3000

User Manual 4 Cable Connections

About this Document3
Table of Contents8
Safety Information13
General Safety13
Personnel Requirements14
Electrical Safety15
Installation Environment Requirements16
Mechanical Safety16
Commissioning17
Maintenance and Replacement18
Product Overview19
Smartlogger19
Model19
Networking21
Appearance26
Smartmodule32
Model32
Networking34
Appearance35
Device Installation41
Checking before Installation41
Tools41
Installation Requirements42
Installing the Smartlogger43
Installing the Smartlogger and Smartmodule45
Installing a Power Adapter48
Cable Connections50
Connecting Cables to the Smartlogger50
Preparing Cables50
Connecting a PE Cable51
Connecting an RS485 Communications Cable51
Connecting an MBUS Cable53
Connecting a DI Signal Cable56
Connecting the Output Power Cable57
Connecting the AI Signal Cable58
Connecting the DO Signal Cable59
Connecting the Ethernet Cable60
Connecting Fiber Jumpers61
Installing a SIM Card and a 4G Antenna62
Connecting the 24 V Input Power Cable64
Connecting Cables to the Smartmodule64
Preparing Cables65
Connecting the PE Cable65
Connecting the Ethernet Cable66
Connecting the 12 V Power Input Cable67
Connecting the RS485 Communications Cable68
Connecting the DI Signal Cable69
Connecting the Output Power Cable70
Connecting the AI Signal Cable71
Connecting the PT Signal Cable72
Connecting the 24 V Power Input Cable73
System Operation75
Check before Power-On75
Powering on the System75
Webui Operations77
Introduction to Webui77
Webui Layout78
Icon Description83
Webui Menus84
Device Commissioning92
Preparations and Webui Login92
Commissioning Using Deployment Wizard (V300R001C00)95
Commissioning Using Deployment Wizard (V800R021C10)96
Commissioning Using Deployment Wizard (V300R023C00 and Later Versions)100
Parameter Settings104
Setting User Parameters104
Setting Parameters for Connecting to the Management System (V300R001C00)106
Setting Parameters for Connecting to the Management System113
Setting RS485 Communications Parameters121
Setting Parameters for the Slave Smartlogger123
Setting GOOSE Communications Parameters125
Setting MBUS Parameters126
Setting Inverter Parameters132
Running Parameters133
Tracking System149
Characteristic Curves153
Battery153
Setting PCS Parameters157
Running Parameters157
Characteristic Curve172
Setting CMU Parameters173
Setting ESU Parameters174
Setting ESC Parameters175
Setting ESR Parameters176
Setting HVAC Parameters176
Setting PID Module Parameters178
PID Module Running Parameters179
PID-PVBOX Running Parameters182
PID-SSC Running Parameters183
Setting Power Meter Parameters183
Setting DL/T645 Power Meter Parameters183
Setting Modbus-RTU Power Meter Parameters184
Setting EMI Parameters187
Setting Modbus-RTU EMI Parameters187
Setting AI EMI Parameters190
Setting STS Parameters191
Setting IEC103 Device Parameters192
Setting Parameters for a Custom Device195
Setting IEC104 Device Parameters197
Setting Parameters for Poverty Alleviation Monitoring Center199
Smart Tracking Algorithm201
Setting Battery Control Parameters201
Setting Capacity Limit206
Setting EMS Control Parameters208
Power Grid Scheduling211
Power Adjustment Description211
Setting Active Power Control212
Setting Reactive Power Control220
Setting Parameters for Shutdown at High Feed-In Power231
Setting Export Limitation Parameters232
Setting Parameters for Smart Reactive Power Compensation235
Setting DRM Parameters236
Setting Remote Shutdown238
Setting Dry Contact Remote Shutdown238
Setting NS Protection Remote Shutdown239
Device Maintenance242
Routine Maintenance242
Troubleshooting242
Alarm List246
Webui Maintenance Operations254
Upgrading the Device Firmware Version254
Setting Security Parameters255
Sending a System Maintenance Command256
Exporting Full Configuration Files257
Importing Full Configuration Files258
Exporting Device Logs259
Starting an Onsite Test259
Managing Licenses260
Managing the Smartmodule262
Managing Users262
Collecting Performance Data263
Adjusting the Total Energy Yield264
Force Start264
Device Disposal264
Faq266
How Do I Connect the Smartlogger to the SUN2000 App or Fusionsolar App266
How Do I Set FTP Parameters268
How Do I Set Email Parameters270
How Do I Change the SSID and Password of the Built-In WLAN272
How Do I Use DI Ports273
How Do I Use DO Ports274
How Do I Use the USB Port275
How Do I Change a Device Name278
How Do I Change the Communications Address278
How Do I Export Inverter Parameters279
How Do I Clear Alarms279
How Do I Enable the AI1 Port to Detect SPD Alarms280
Which Models of Power Meters and Emis Are Supported by the Smartlogger280
How Do I Check the SIM Card Status284
How Do I Use Mobile Network Sharing285
Webui Allows Login Only in Chinese and Prompts to Switch to Chinese286
Technical Specifications288
Technical Specifications of the Smartlogger288
Technical Specifications of the Smartmodule293
A Product User Lists295
B Domain Name List of Management Systems297
C Port No. List298
