Procedure
Step 1 Set dry contact remote shutdown parameters.

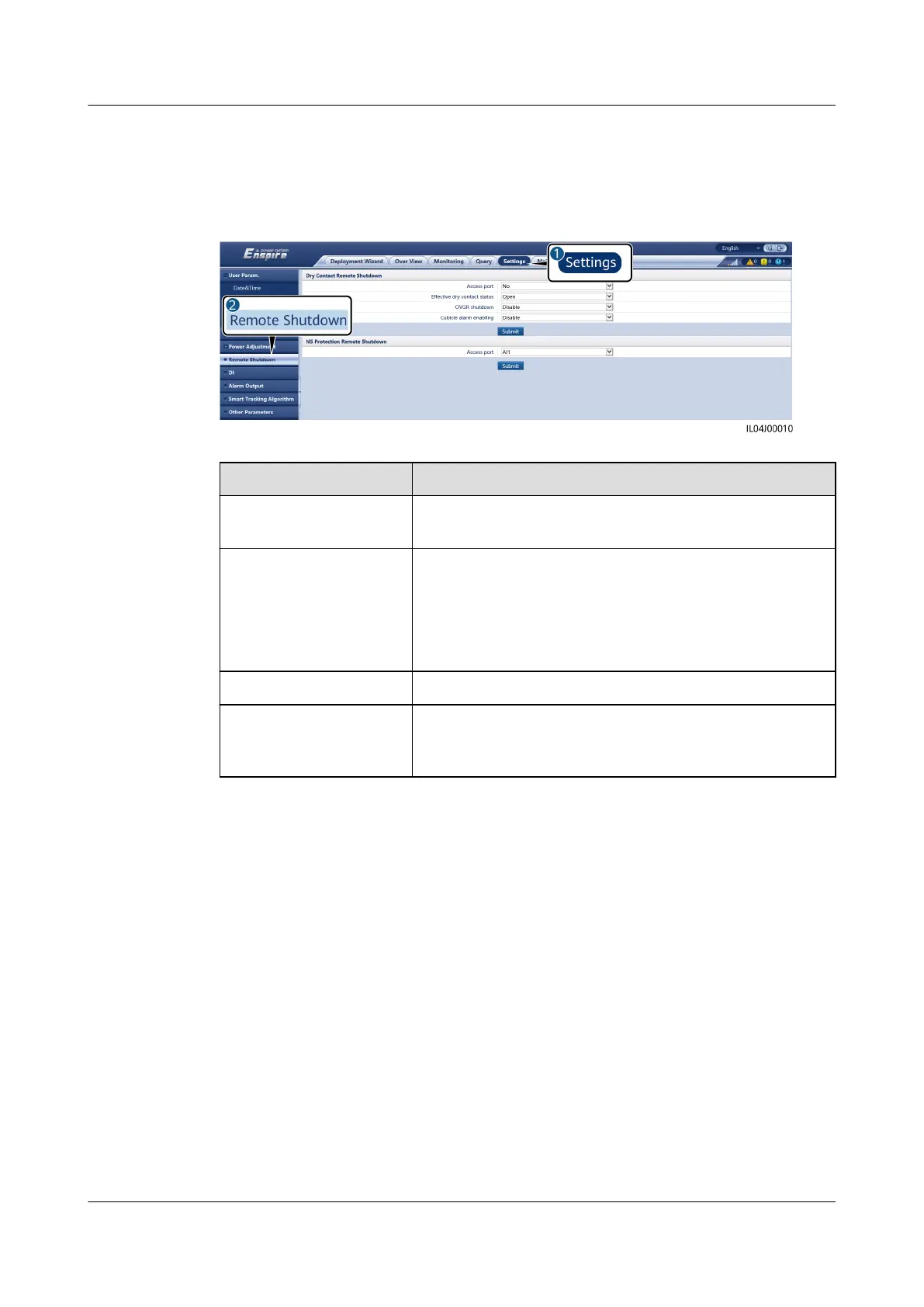

Figure 6-82 Dry contact remote shutdown
Parameter Description
Access port Set the parameter to the DI port connected to OVGR
signals.
Eective dry contact
status
The value can be Open or Close.
NOTE
If OVGR shutdown is enabled and this parameter is set to
Close, the SmartLogger sends an inverter shutdown
command only when the corresponding DI port is in the
Close state.
OVGR shutdown Species whether to enable shutdown over OVGR.
Cubicle alarm enabling If this parameter is set to Enable, the Abnormal
Cubicle alarm is generated when the dry contact
signal is eective and the Cubicle is abnormal.
----End
6.7.8.2 Setting NS Protection Remote Shutdown
Context
● The NS protection function is available only in Germany. Choose Monitoring
> Running Param. > Grid Parameters and set Grid code to VDE-AR-N-4105.
● The NS protection device is connected to the AI1 port and 12V power output
port. The SmartLogger shuts down the inverter over the voltage change
detected at the AI1 port. When the NS protection device is disconnected, the
AI1 port voltage is 0 V, and the inverter shuts down. When the NS protection
device is connected again, the AI1 port voltage is 12 V, and you need to start
the inverter manually.
SmartLogger3000
User Manual 6 WebUI Operations
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 227
