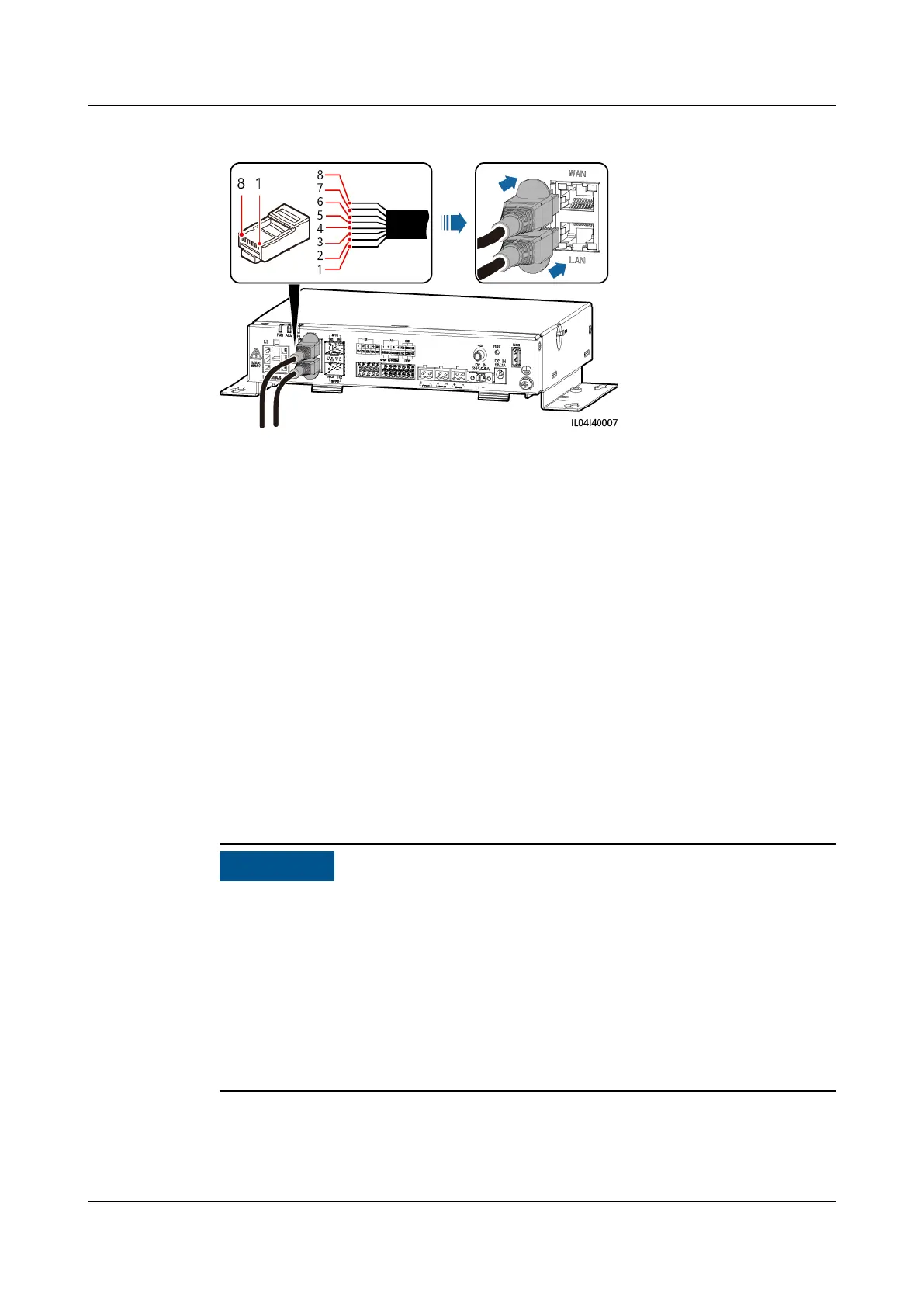

Figure 4-10 Connecting an Ethernet cable
(1) White-and-orange (2) Orange (3) White-and-green (4) Blue
(5) White-and-blue (6) Green (7) White-and-brown (8) Brown
----End
4.1.10 Connecting Fiber Jumpers
Context
The SmartLogger can connect to devices such as the access terminal box through
optical
bers.
Procedure
Step 1 Insert an optical module into the SFP1 or SFP2 port of the SmartLogger. If there
are two modules, insert one into each port.
● Optical modules are optional. Congure the 100M or 1000M optical module
based on the peer port of the optical switch. The optical module should use the
SFP or eSFP encapsulation. The transmission distance supported by the 100M
optical module should be greater than or equal to 12 km, and the transmission
distance supported by the 1000M optical module should be greater than or
equal to 10 km.
● When inserting an optical module into the SFP1 port, verify that the side with a
label faces upward. When inserting an optical module into the SFP2 port, verify
that the side with a label faces downward.
Step 2 Connect the ber jumpers delivered with the optical module to the ports of the
optical module.
SmartLogger3000
User Manual 4 Cable Connections
Issue 10 (2022-08-20) Copyright © Huawei Technologies Co., Ltd. 49
