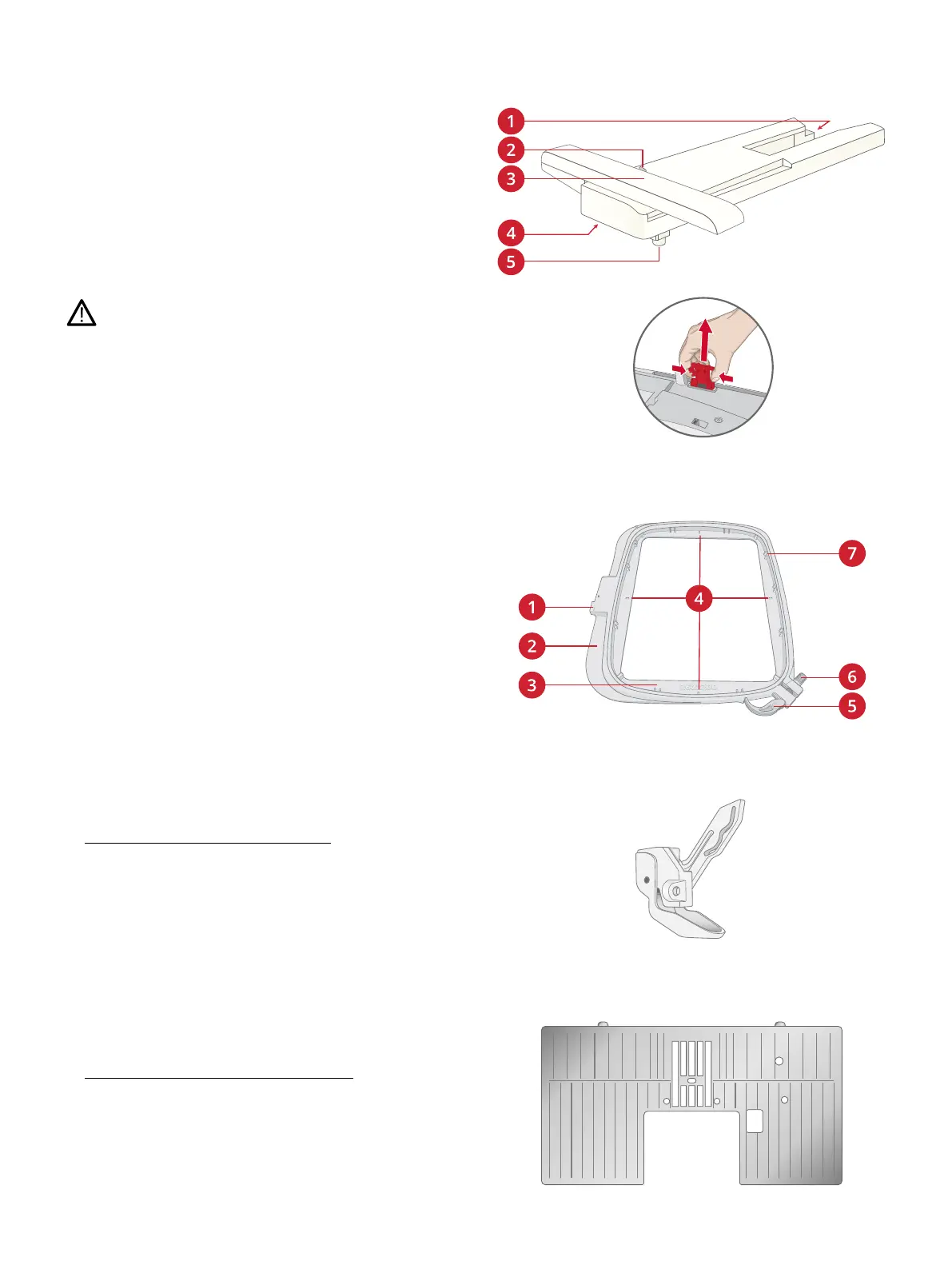

Embroidery Unit
(type EU 22)
1. Embroidery unit plug
2. Embroidery hoop attachment
3. Embroidery arm
4. Embroidery unit release button (underside)
5. Level adjustment feet
When removing the embroidery unit from the box for the
first time, be sure to remove the shipping brace on the
underside of the embroidery unit.
Embroidery Hoop Overview
1. Embroidery hoop connector
2. Outer hoop
3. Inner hoop
4. Center marks
5. Quick release
6. Retaining screw
7. Ribs for fitting the clips
Sensor Q-Foot
The Sensor Q-foot is recommended for hoop embroidery.
See Attaching the Sensor Q-Foot, page 48.
Straight Stitch Plate
The Straight Stitch Plate is recommended for hoop
embroidery.
See Changing to Straight Stitch Plate, page 49.
