LET10
The LET10 module (Part #020042-001) provides an Ethernet 10Base-2, 10Base-T, and AUI
Router interface. The LET10 module is installed only in the IEN 1000 chassis. Figure 3-52
illustrates the LET10 module installed in the IEN 1000 chassis.

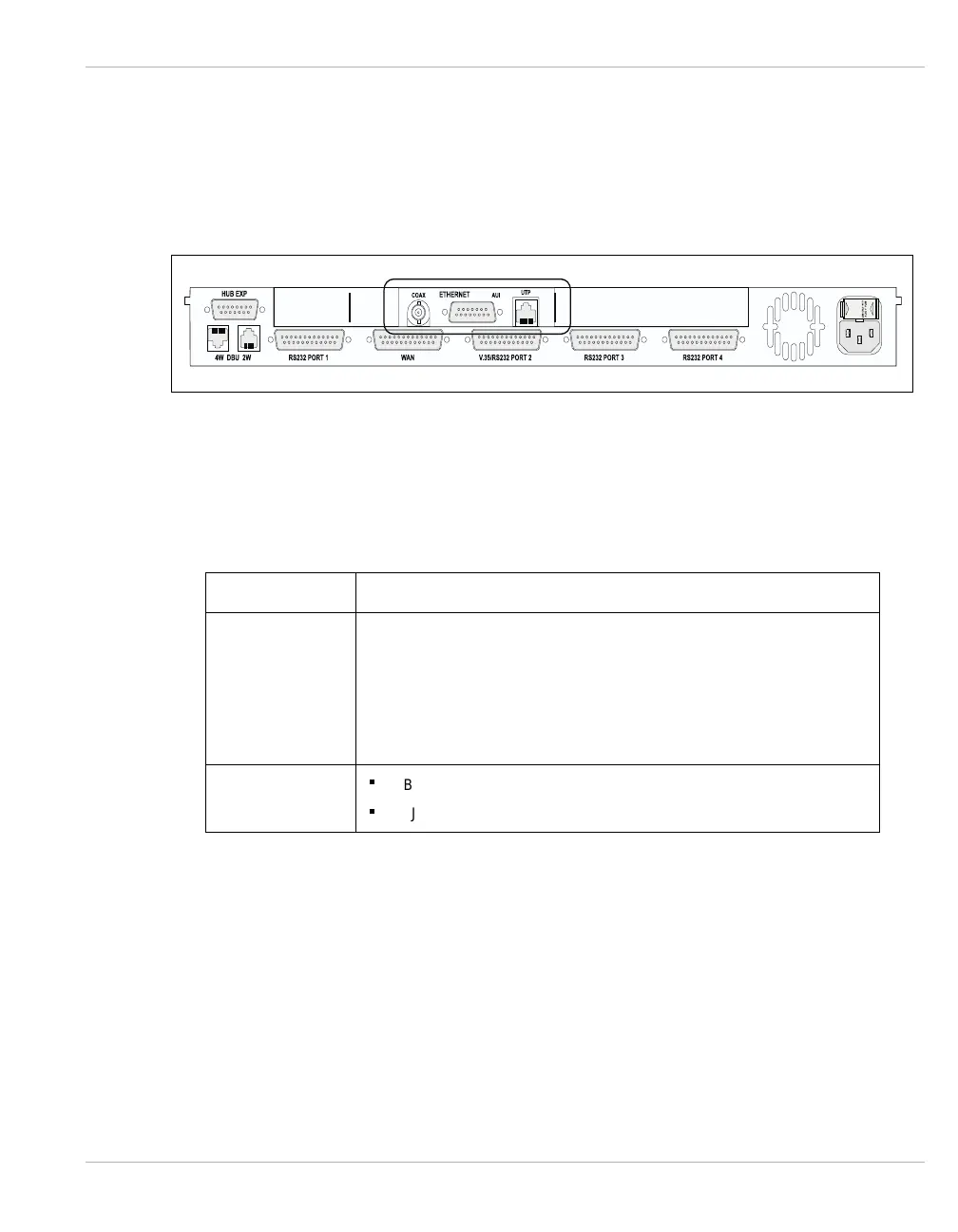

Figure 3-52 Installed LET10 Module
Note: The Ethernet and Token Ring interfaces are mutually exclusive.
Table 3-18 lists the interface specifications for the LET10 module.
Table 3-17 LET10 Interface Specifications
Note: Refer to Chapter 4, Cable Specifications & Adapters for more information about these and
other Hypercom cables.
LET10
One BNC, one AUI, and one UTP port
Protocols
IP
IPX
Bridging
Translational bridging
RIP
RIP2
OSPF
Cables
n
BNC and AUI cables provided by customer
n
RJ45 straight cable used to connect UTP HUB
