Type HB3
The Hypercom Type HB3 cable (#810130-002) is a male to male bus expansion cable.
The cable is used to bus connect the IEN 2000 or IEN 4000 chassis. The length of the cable
is 16”. Figure 4-18 illustrates the Type HB3 cable.

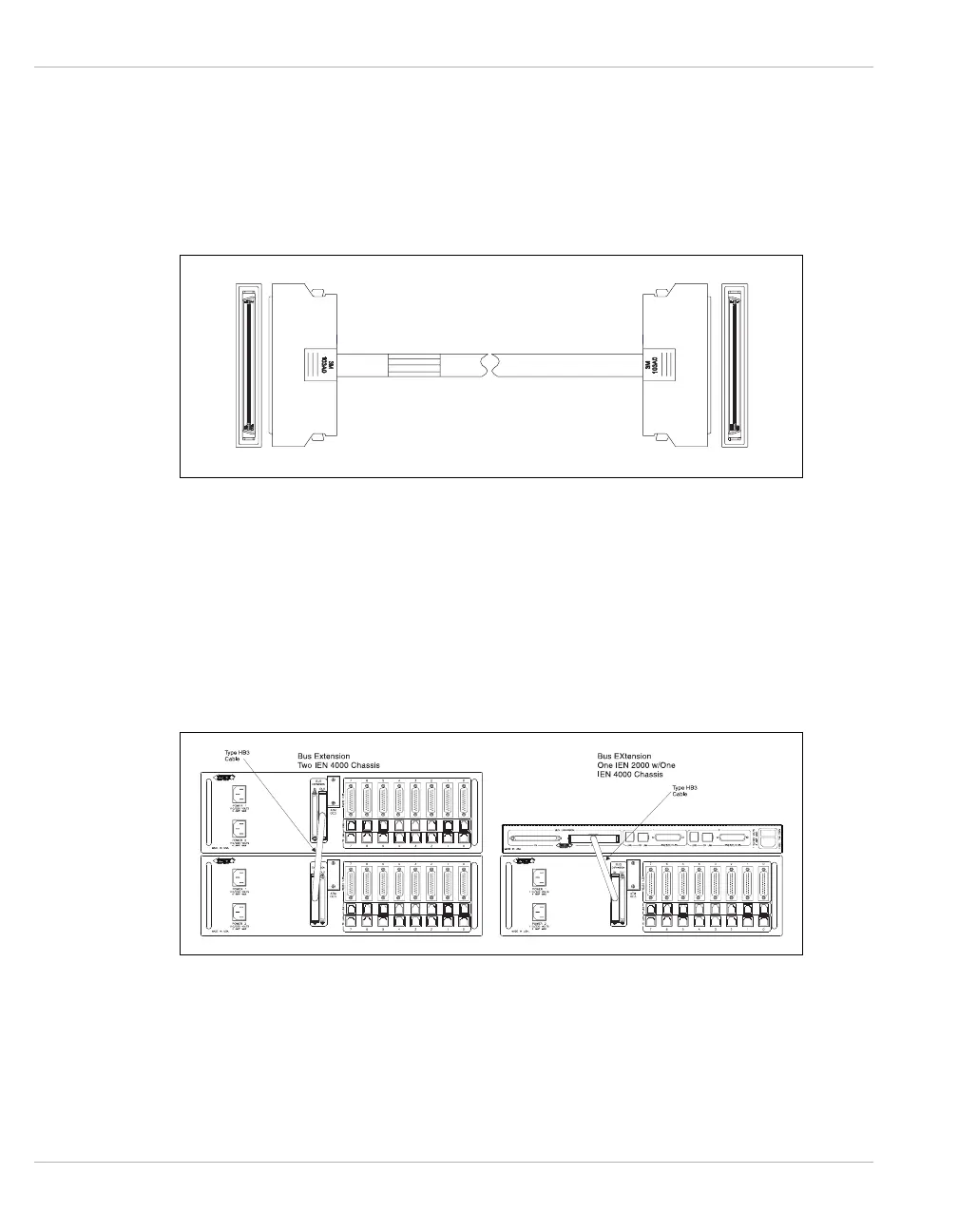

Figure 4-20 Type HB3 Cable
Note: Cable pinout information for the Type HB3 cable is not available.
One end of the Type HB3 cable must be plugged into the Bus OUT port of an IEN 2000 or
IEN 4000 chassis. The other end must be plugged into the Bus IN port of the additional
IEN 2000 or IEN 4000 chassis. Figure 4-19 illustrates the cable connection for the
Type HB3 cable.
Figure 4-21 Type HB3 Cable Connection
