CHAPTER 3
3-54 IEN HARDWARE REFERENCE 940043-002
CPA03
The CPA03 module (Part #030031-001) provides one RS232/V.35 and two RS232 serial
port interfaces. The CPA03 module is installed only in the IEN 1000 chassis. Each port is
capable of running a different protocol. Figure 3-50 illustrates both sides of the CPA03
module.

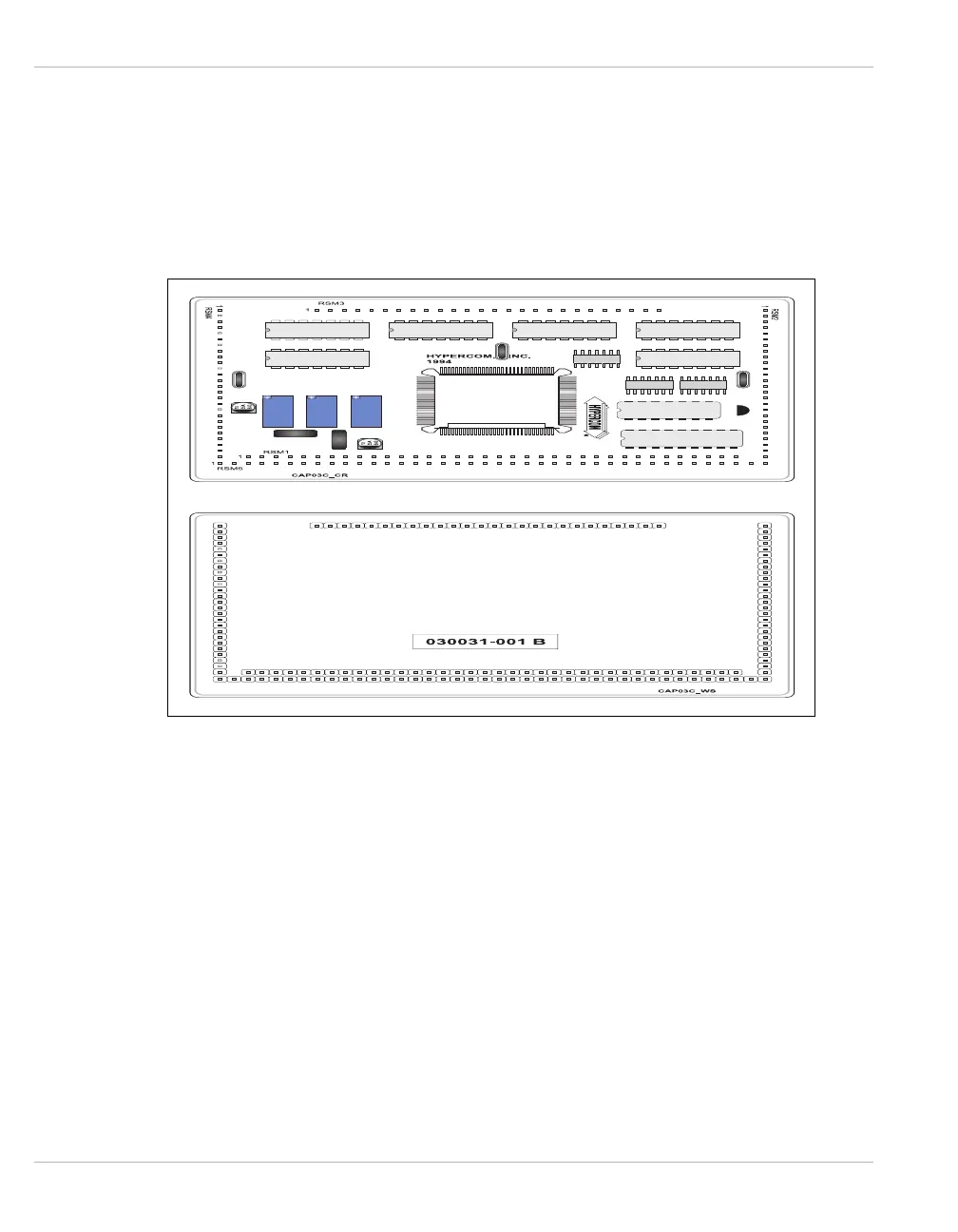

Figure 3-50 CPA03 Module
