CHAPTER 3
3-58 IEN HARDWARE REFERENCE 940043-002
LTR10
The LTR10 module (Part #020043-001) provides a Token Ring UTP/STP Router interface for

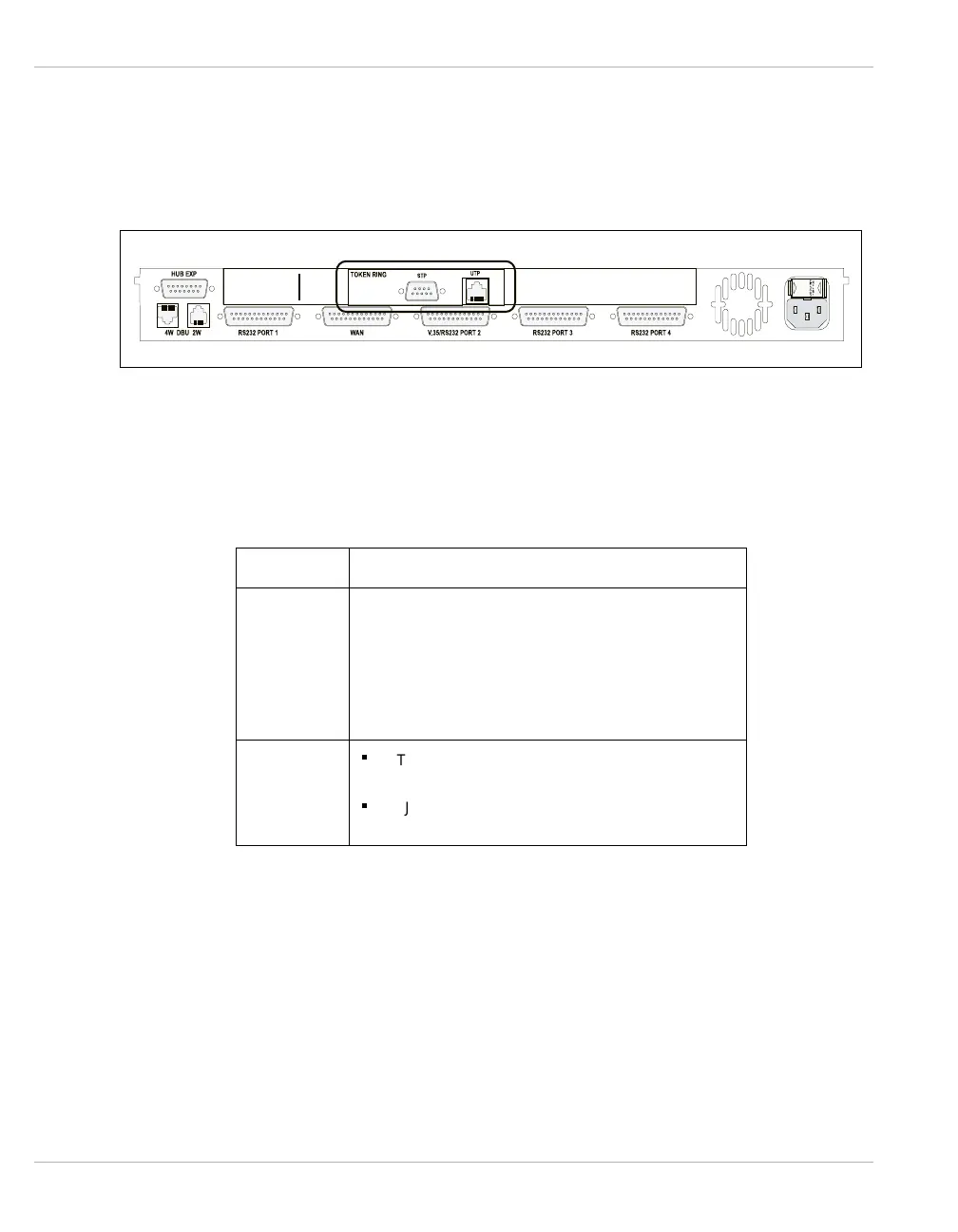

the IEN 1000 chassis. Figure 3-53 illustrates the LTR10 installed in the IEN 1000 chassis.
Figure 3-53 Installed LTR10 Module
Note: The Ethernet and Token Ring interfaces are mutually exclusive.
Table 3-18 lists the interface specification for the LTR10 module.
Table 3-18 LTR10 Interface Specifications
Note: Refer to Chapter 4, Cable Specifications & Adapters for more information about these and
other Hypercom cables.
LTR10
One STP and one UTP port.
Protocols
IP
IPX
Bridging
SRB
RIP
RIP2
OSPF.
Cables
n
Type IBM adapter cable used to attach to an
STP MAU.
n
RJ45 straight cable used to connect UTP
MAU.
