Type Y(63)
The Hypercom Type Y(63) cable (#810117-001) is a male DB25 to two female DB25 cable.
The cable provides two DB25 DTE connectors that come off of a CID63 port processor. The
length of the cable is 3’. This cable can be connected to the Type V, VF, VX, A and D cables.

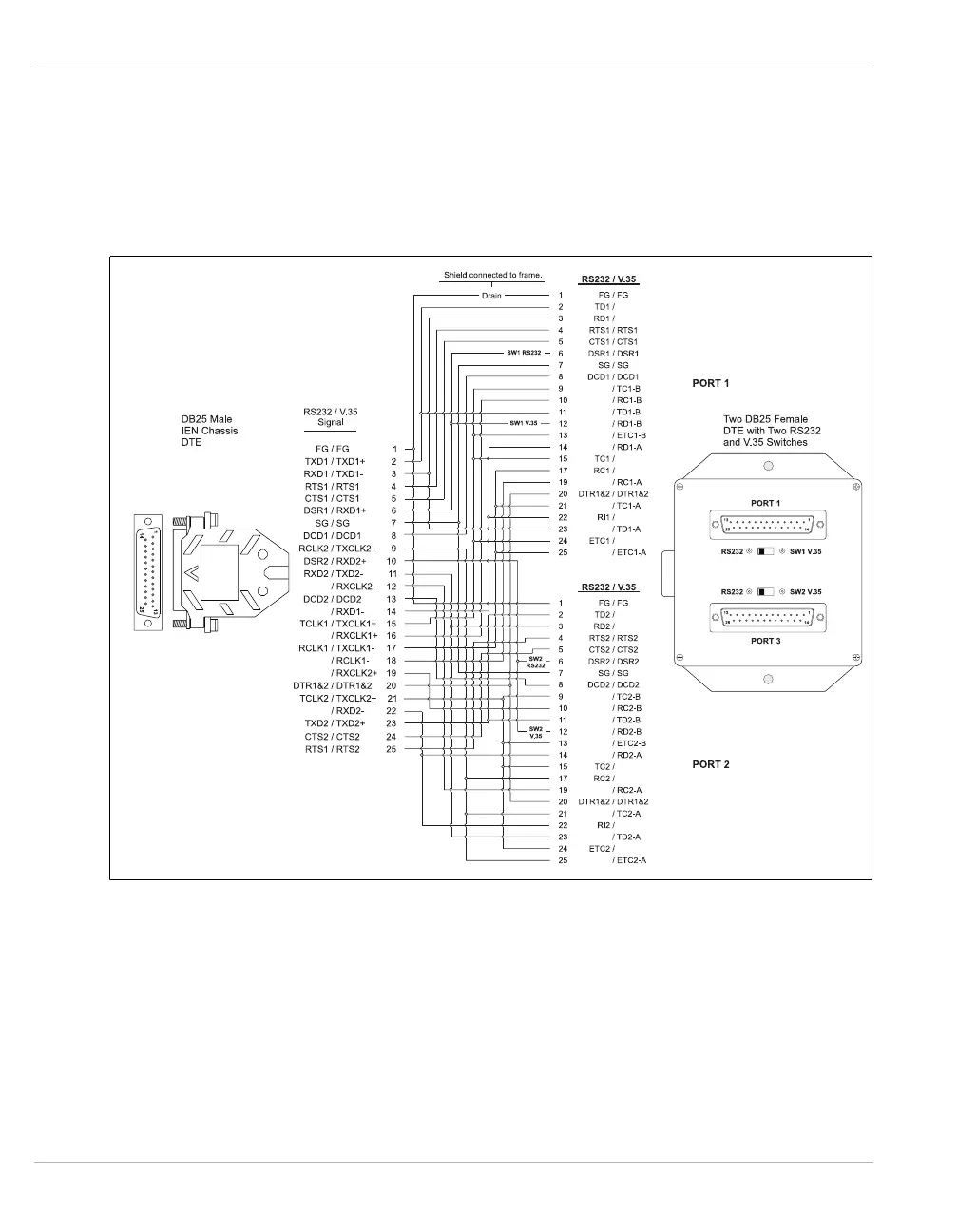

Figure 4-64 illustrates the pinout for the Type Y(63) cable.
Figure 4-62 Type Y(63) Cable Pinout
