CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-11
Type ALG-PD
The Hypercom Type ALG-PD cable (#810142-001) is a male DB25 to punch-down cable.
The cable is used to connect a DLA14 port processor to a PBX using a punch-down block
termination. The cable provides four, 2-wire or two, 4-wire analog voice terminations
including E&M signalling leads. Figure 4-5 illustrates the pinout for the Type ALG-PD (four
two-wire) cable.

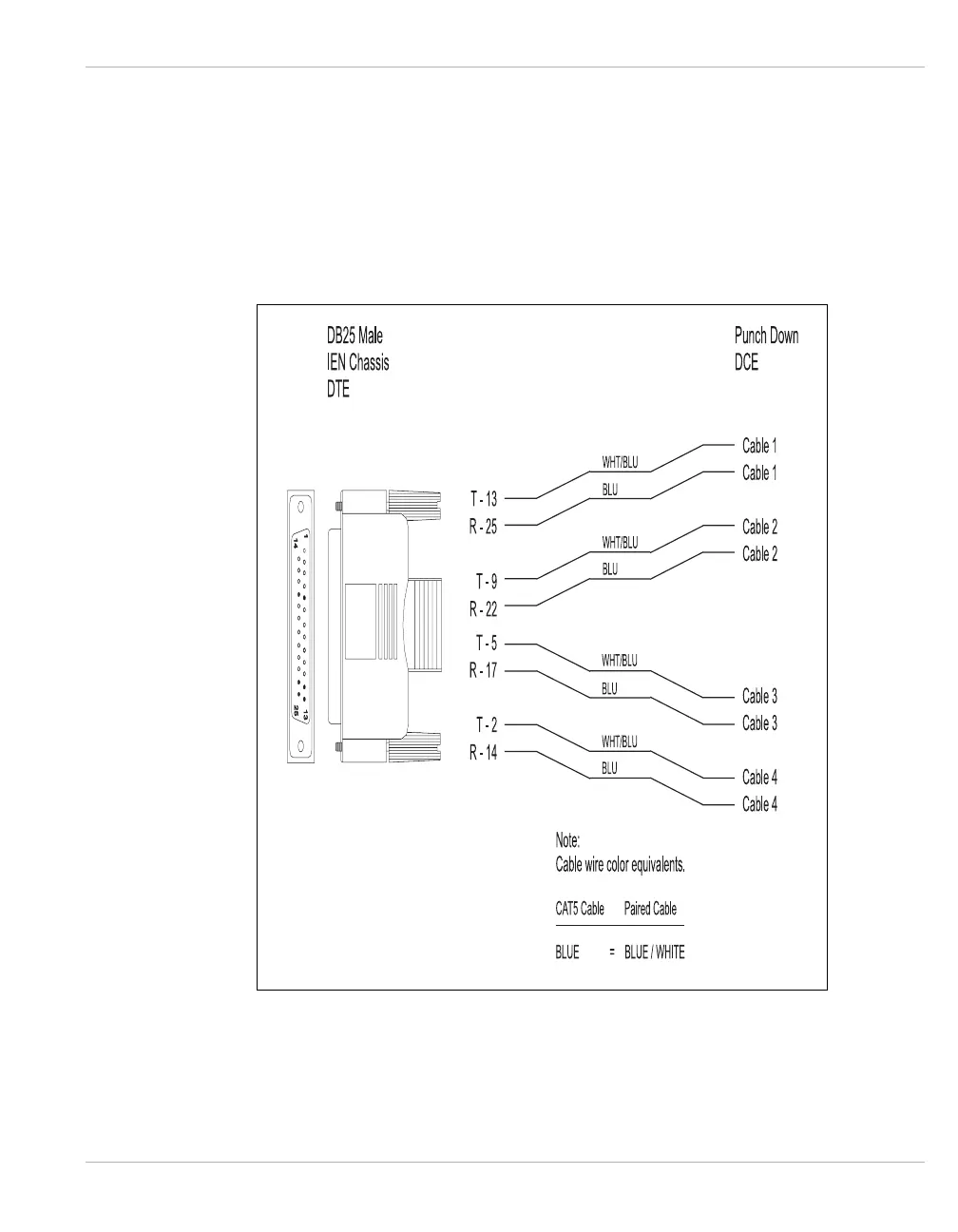

Figure 4-5 Type ALG-PD (Four 2-Wire) Cable Pinout
