The ISD01-U module (Part #030117-002) provides a single ISDN BRI U interface to the
CID63 port processor. The ISD01-U module plugs into the Expansion Card A, sockets
CNEA1, CNEA2, CNEA3 and CNEA4, or Expansion Card B, sockets CNEB1, CNEB2,
CNEB3, and CNEB4 on the CID63 port processor. Figure 3-45 illustrates the front and
back side of the ISD01-U module.

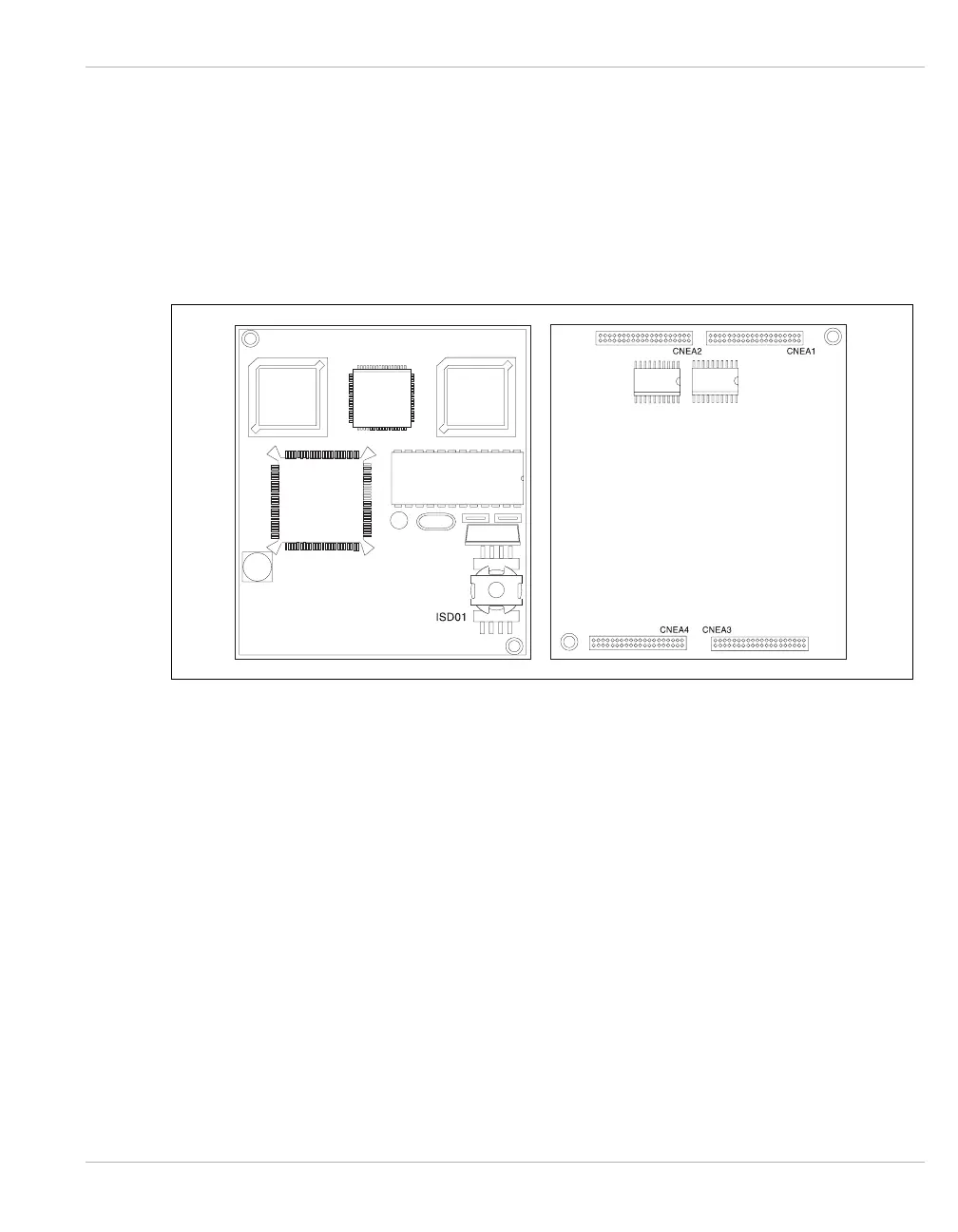

Figure 3-45 ISD01-U Module
