Hypercom IEN 1000 - Type D

CHAPTER 4
4-16 IEN HARDWARE REFERENCE 940043-002
Type D
The Hypercom Type D cable (#810012-001) is a male DB25 to female DB25 cross cable.
The Type D cable is used with a Type A cable as a DCE connection to a DTE device. The IEN
chassis provides clocking. The length of the cable is 1’. Figure 4-12 illustrates the pinout
for the Type D cable.

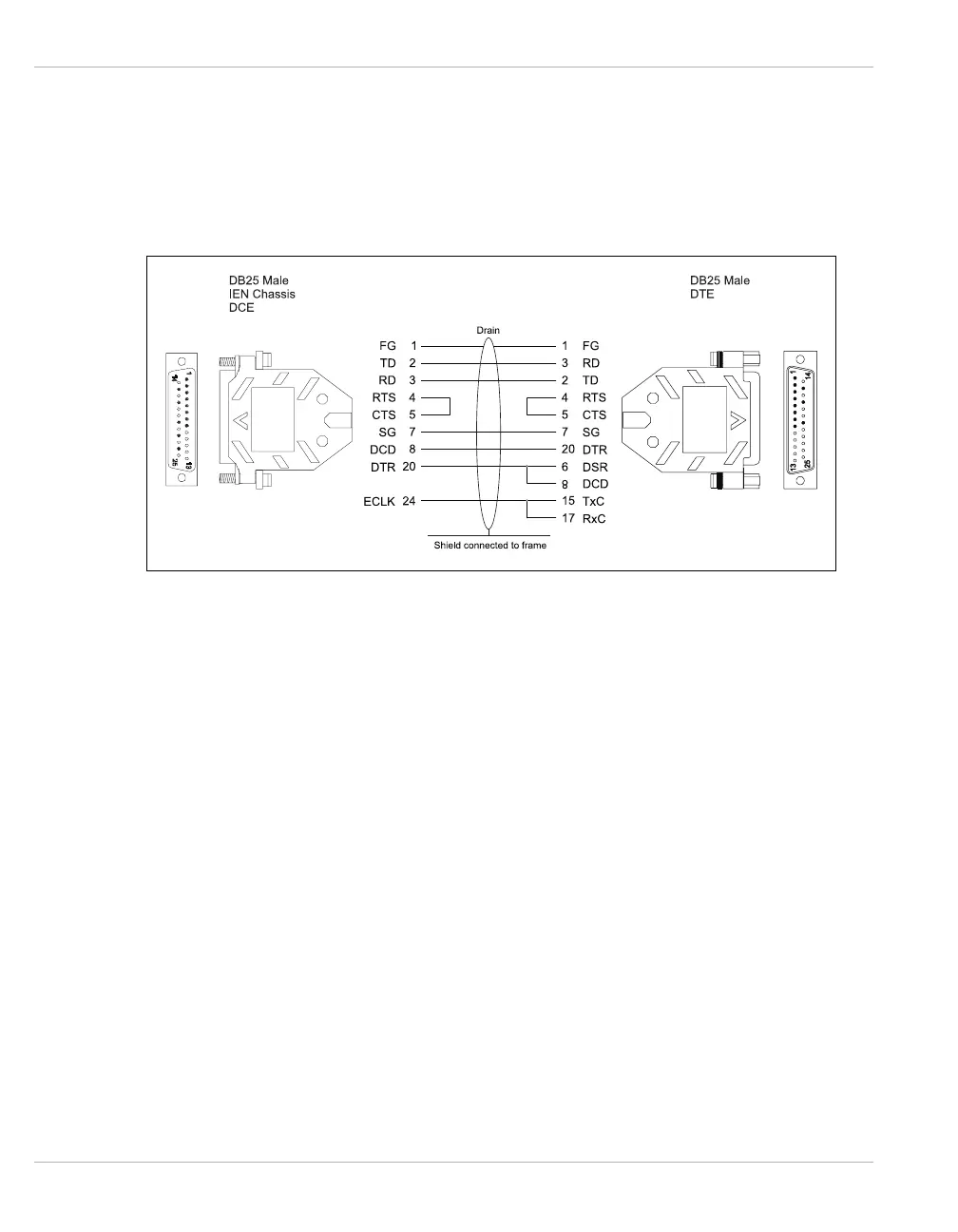

Figure 4-12 Type D Cable Pinouts
