Type D6
The Hypercom Type D6 cable (#810127-001) is a male DB25 to female DB25 cross cable.
The cable is used only with a CID61 port processor, and with a Type A cable as a DCE
connection to a DTE device. The DTE equipment provides clocking. The length of the cable
is 1’. Figure 4-14 illustrates the pinout for the Type D6 cable.

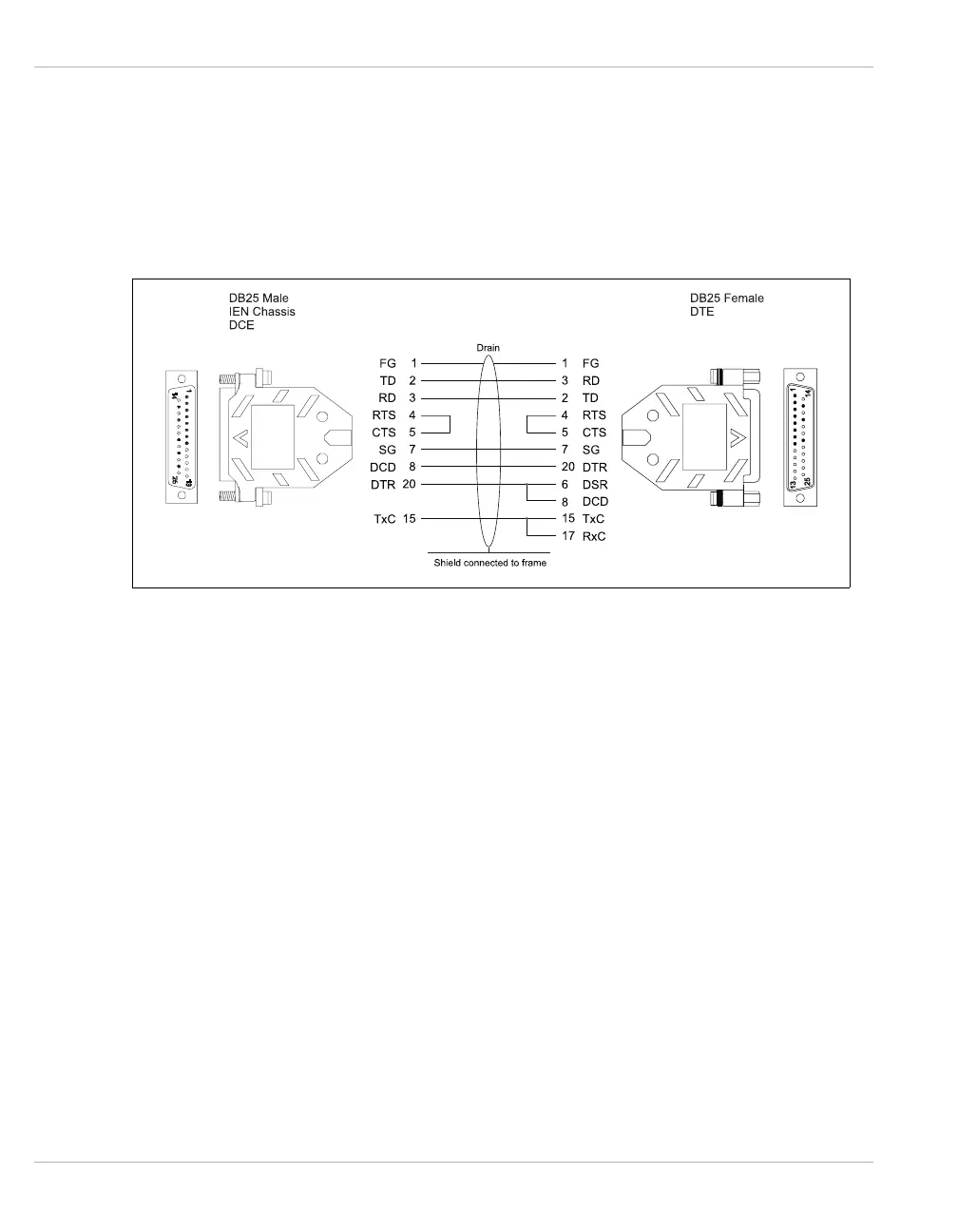

Figure 4-14 Type D6 Cable Pinouts
