CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-7
CABLE TYPES
This section contains Hypercom cable that are currently available.
Type A
The Hypercom Type A cable (#810009-001) is a male DB25 to male DB25 straight-through
RS232 cable. The cable is used to connect an IEN device to a user device. The length of the
cable is 10’. Figure 4-1 illustrates the pinout for the Type A cable.

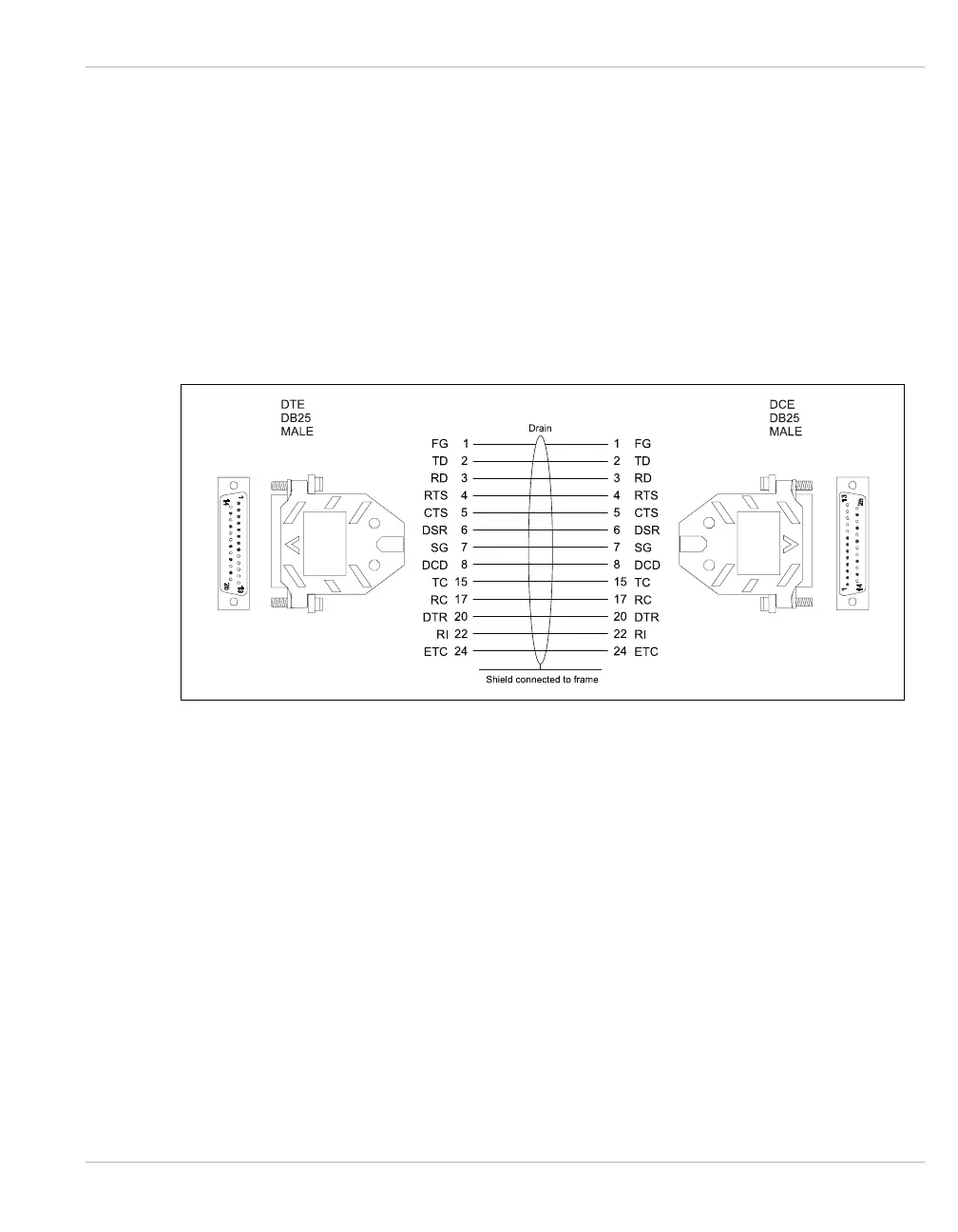

Figure 4-1 Type A Cable Pinouts
