CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-31
Type T1-45-XF
The Hypercom Type T1-45-XF cable (#810128-001) is a male RJ11 to female RJ45 cable.
The cable is used to connect a DSX11 or DTC11-LHO port processor to a male RJ45 T1
interface cable from a PBX. The cable provides the crossover required between an IEN
chassis and a PBX. The length of the cable is 15’. Figure 4-38 illustrates the pinout for the
Type T1-45-XF cable.

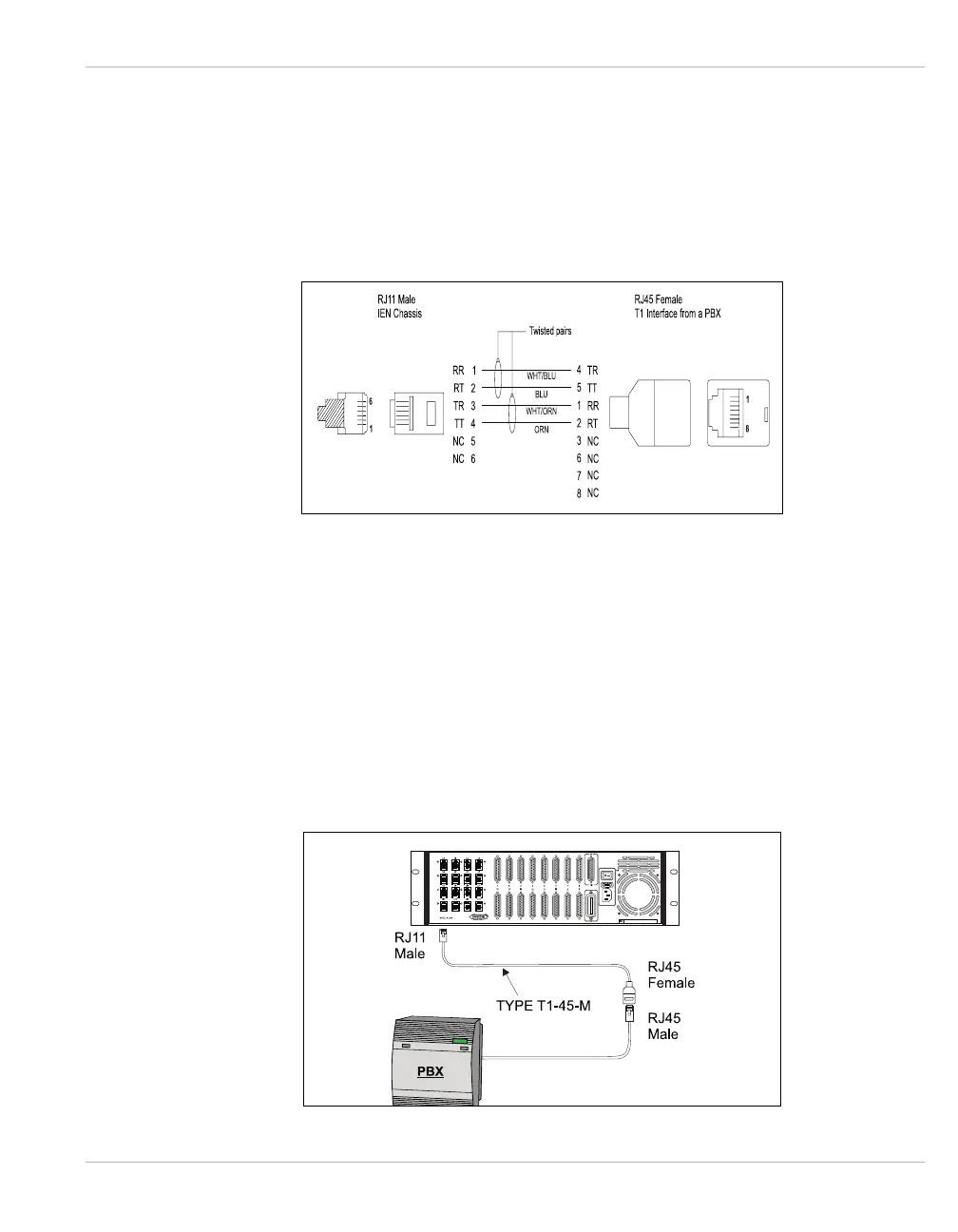

Figure 4-38 Type T1-45-XF Cable Pinout
The Type T1-45-XF male RJ11 connector attaches to the line port on the IEN 2000,
IEN 3000, IEN 4000 or IEN 5000 chassis that corresponds to the slot containing the DSX11
or DTC11-LHO port processor. The Type T1-45-XF female RJ45 connector is attached to the
male RJ45 T1 termination from a PBX. Figure 4-39 illustrates the cable connection for the
Type T1-45-XF cable.
Note: The Type T1-45-XF cable is used with the DSX11 or DTC11-LHO port processors.
Figure 4-39 illustrates the cable connection for the Type T1-45-XF cable.
Figure 4-39 Type T1-45-XF Cable Connection
