PORT PROCESSORS/MODULES
940043-002 INTEGRATED ENTERPRISE NETWORK 3-37
DES10
The DES10 module (Part #030033-001) is a single channel plug-in module that provides
WAN data encryption and compression. The DES10 module plugs into the CNS1 A and B
sockets on the CID61 port processor, the CNEA2 and CNL1 or CNEB2 and CNL2 sockets
on the CID63 port processor, or CNS2 A and B sockets in the IEN 1000 chassis. Figure
3-35 illustrates the front and back side of the DES10 module.

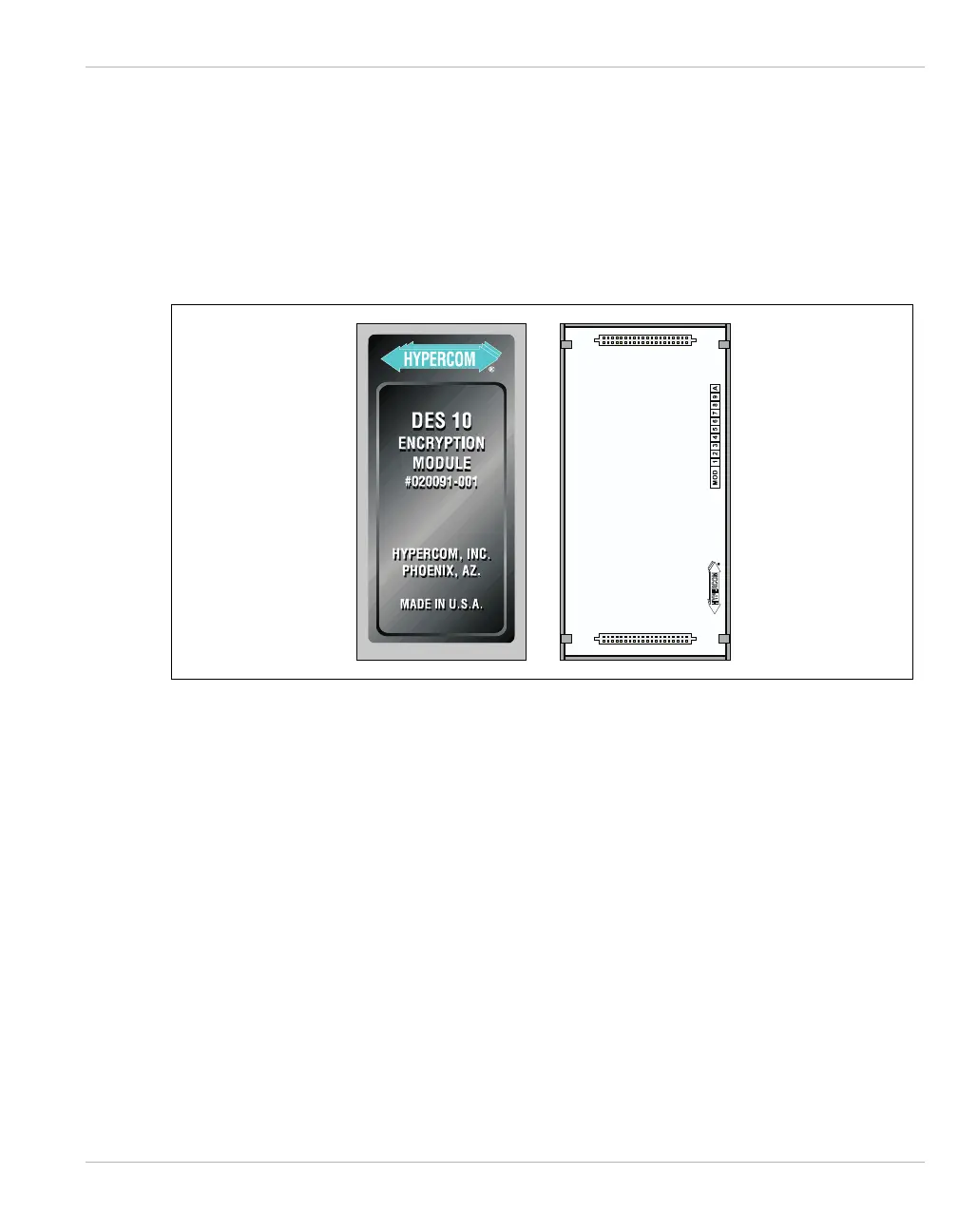

Figure 3-35 DES10 Module
Note: The installation of the DES10 module does not enable encryption. The IENView software is
required to load the key into the central encryption module.
