CABLE SPECIFICATIONS & ADAPTERS
940043-002 INTEGRATED ENTERPRISE NETWORK 4-21
Type HB2
The Hypercom Type HB2 cable (#810130-001) is a male to male bus expansion cable.
The cable is used to bus connect the IEN 2000 or IEN 4000 chassis. The length of the cable
is 8”. Figure 4-18 illustrates the Type HB2 cable.

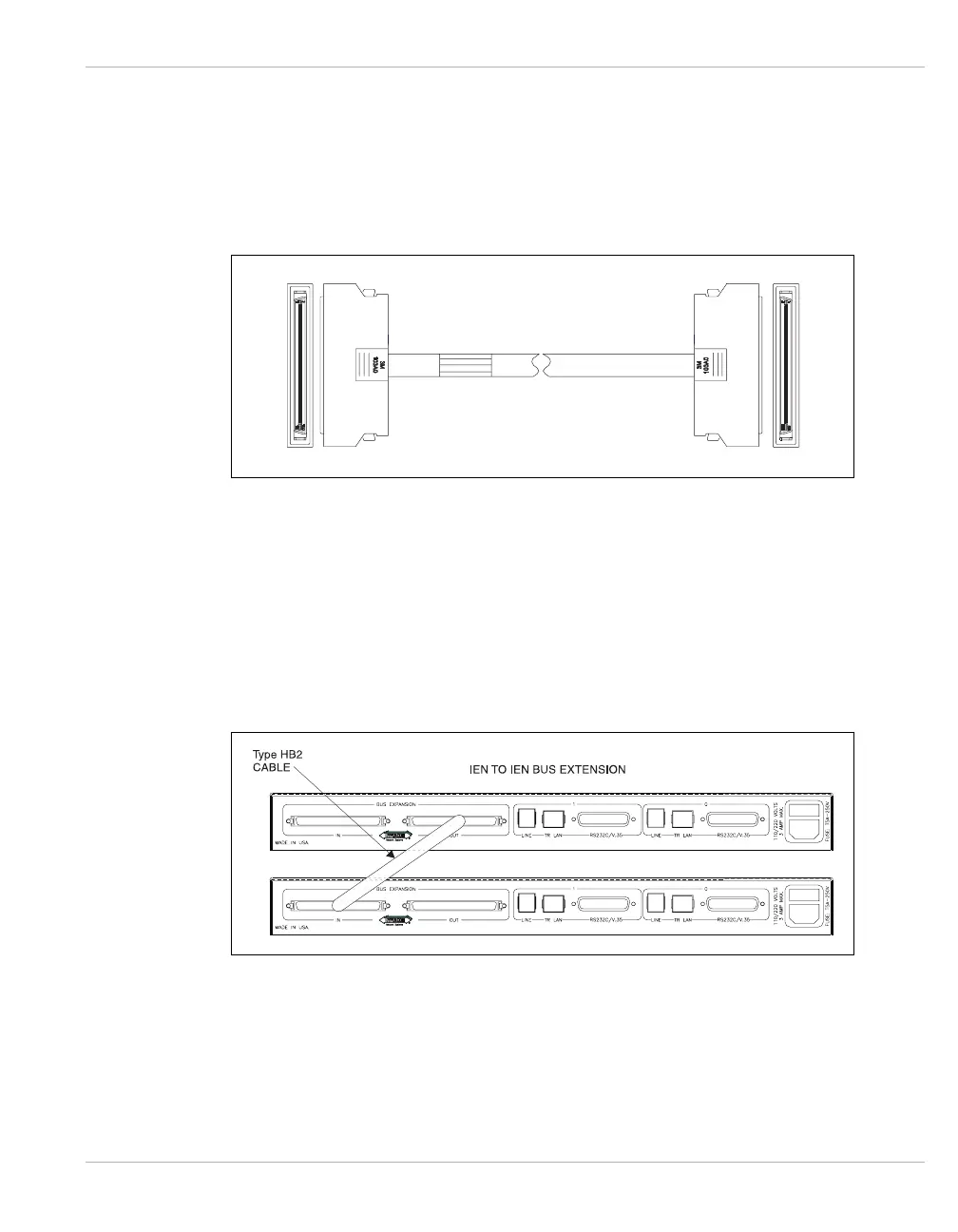

Figure 4-18 Type HB2 Cable
Note: Cable pinout information for the Type HB2 cable is not available.
One end of the Type HB2 cable must be plugged into the Bus OUT port of an IEN 2000 or
IEN 4000 chassis. The other end must be plugged into the Bus IN port of the additional
IEN 2000 or IEN 4000 chassis. Figure 4-19 illustrates the cable connection for the Type
HB2 cable.
Figure 4-19 Type HB2 Cable Connection
