CIV01
The CIV01 module (Part #030148-001) is a single channel plug-in module that creates a
single V.35 interface to the CID63 port processor. The CIV01 module plugs into the CNEA2
and CNL1 or CNEB2 and CNL2 sockets on the CID63 port processor. Figure 3-34
illustrates the front and back side of the CIV01 module.

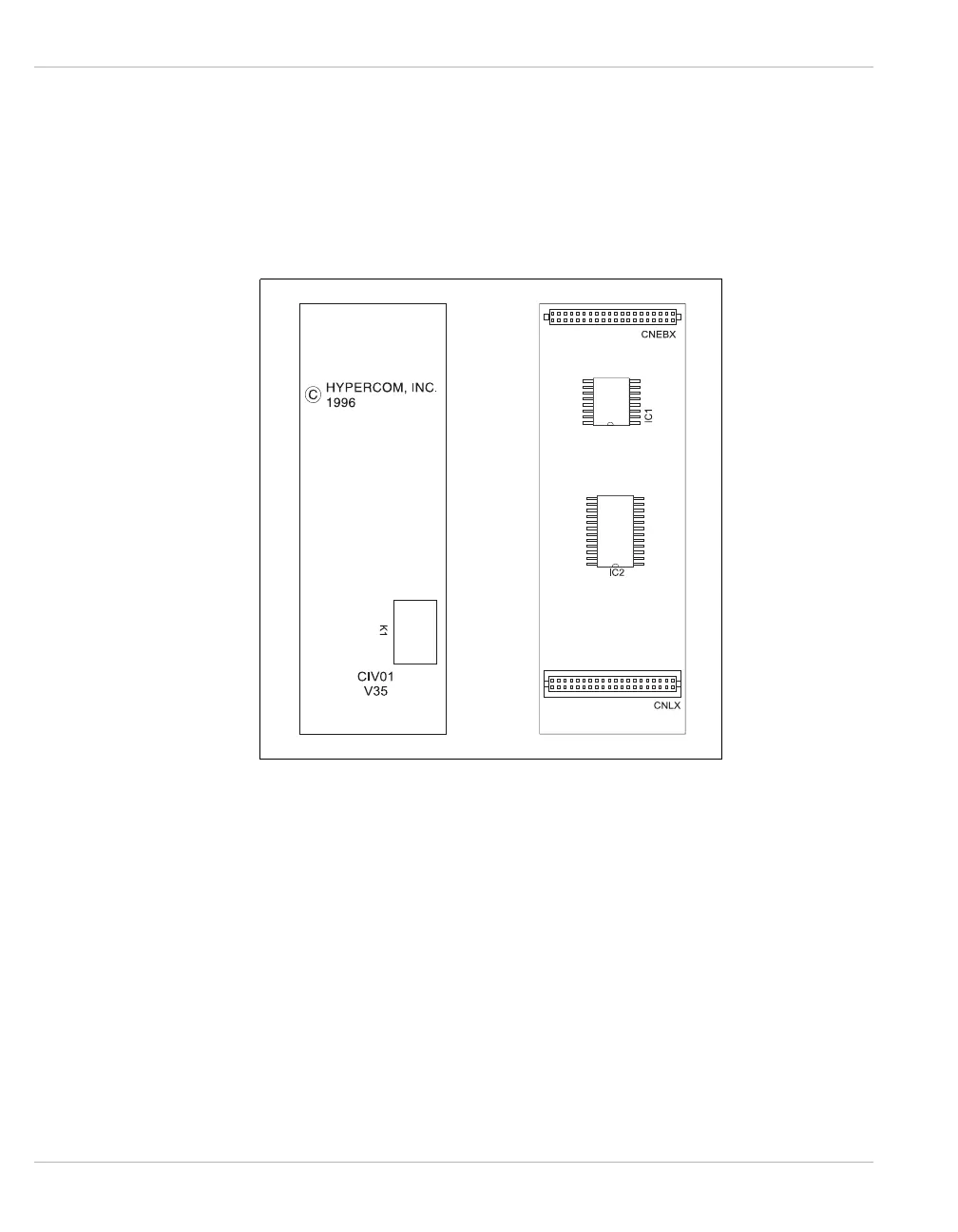

Figure 3-34 CIV01 Module
