Type P
The Hypercom Type P cable (#810015-001) is a male DB25 to female DB9 cable. The
cable is commonly used for asynchronous communication between a PC running IENView
and the CID15H port processor at the IEN Node. The length of the cable is 10’. Figure
4-24 illustrates the pinout for the Type P cable.

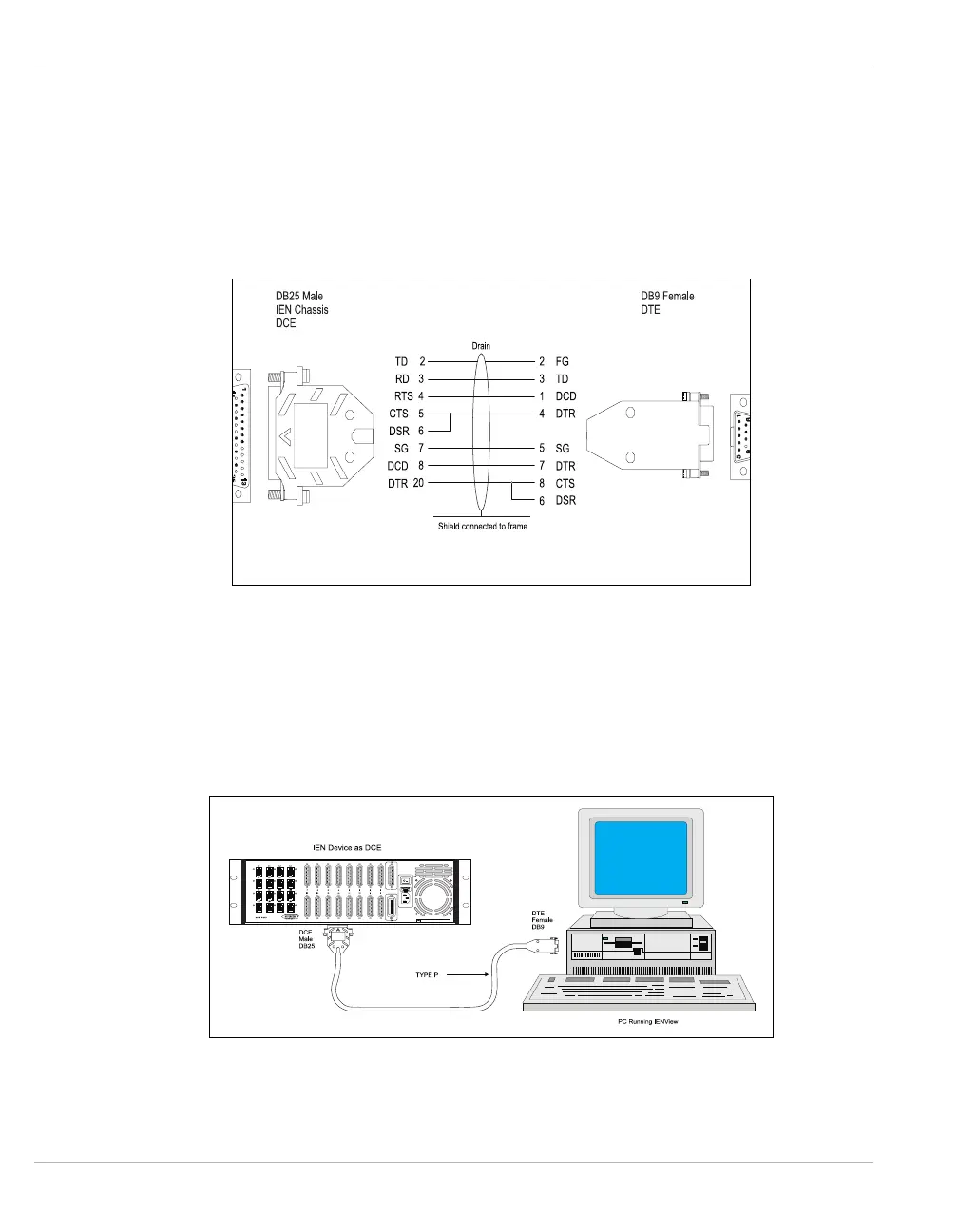

Figure 4-24 Type P Cable Pinouts
The Type P male DB25 connector is attached to an IEN 2000, IEN 3000, IEN 4000 or
IEN 5000 chassis port that corresponds to the slot occupied by the CID15H port processor.
The DB9 connector is attached to a PC COM port. Figure 4-25 illustrates the use of a Type
P cable.
Figure 4-25 Type P Cable
